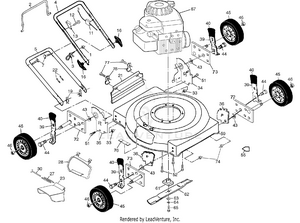

Husqvarna WM45N22SA (2003-11) Walk-Behind Mower

Model: WM45N22SA (2003-11)

Save
 Part Not Listed?Part Not Listed?
product name

Product Complete

...
...
1
Locknut 1/4-20 PLN-132004
...
2
Control Bar PLN-86902
...
3
Rope Guide PLN-179585
...
4
Upper Handle PLN-169709X479
...
5
Lower Handle PLN-169708X479
...
7
Handle Bolt 5/16-18 PLN-131959
...
11
Engine Zone Control Cable PLN-176556
...
12
Hex Washer Head Screw #10-24 x 1/2 PLN-750634
...
13
Up-Stop Bracket PLN-86899X004
...
16
Knob PLN-136376
...
19
Hairpin Cotter PLN-51793
...
21
Rear Deflector PLN-188987
...
22
Wire Tie PLN-664-26
...
23
Discharge Guard PLN-160831
...
27
Torsion Spring PLN-160832
...
28
Mulcher Plate PLN-160830
...
30
Hinge Rod PLN-160833
...
33
Nut, Hex, Flangelock 5/16 - 18 PLN-73930500
...
34
Wheel Bracket Support, Left PLN-168164X479
...
35
Wheel Bracket Support, Right PLN-168165X479
...
36
Wheel Bracket Adjuster PLN-160835X007
...
39
Selector Spring PLN-168360X004
...
40
Selector Knob PLN-87877
...
43
Washer PLN-183901
...
44
Shoulder Bolt 5/16-18 x .33 PLN-160828
...
45
Wheel Assembly PLN-189483
...
46
Locknut 1/16-18 PLN-83923
...
51
Screw, Hex Head, Serrated, Type TT 1/4 x 20 PLN-17600406
...
52
Screw, Hex Head, Threaded, Rolled 3/8-16 x 1 PLN-150406
...
55
Danger Decal PLN-141846
...
59
Lawn Mower Housing (Includes Key Number 55) PLN-161657
...
61
Blade Adapter PLN-851514
...
62
22" Blade PLN-141114
...
63
Hardened Washer PLN-851074
...
64
Helical Lockwasher 3/8 PLN-850263
...
65
Screw, Hex Head 3/8-24 x 1-3/8 Grade 8 PLN-851084
...
72
Axle Arm Assembly (LF/RR) PLN-186577X004
...
73
Axle Arm Assembly (RF/LR) PLN-186578X004
...
74
Nut, Hex PLN-166785
...
76
Clip, Closeout PLN-161622
...
77
Screw PLN-750097
...
78
Shoulder Bolt 5/16-18 x .51 PLN-87584X004
...
78
Warning Decal (Not Shown) PLN-161058
...
78
Operator's Manual, English PLN-172782
...
78
Operator's Manual, Spanish PLN-172784
...
78
Repair Parts Manual PLN-189202
...
78
Grass Catcher Accessories not included with mower PLN-GCK3300
...
...
...
