Husqvarna TE475, 952711797 (2009-03) Trimmer/Edger

Model: TE475, 952711797 (2009-03)

Save
 Part Not Listed?Part Not Listed?
product name

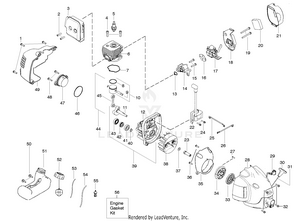

Engine

...
...
1
Screw PLN-530015880
...
2
Bolt-Muffler PLN-530058982
...
3
Assy-Muffler/Shield (Incl. 2) PLN-530057538
...
4
Screw-Cylinder PLN-530015953
...
5
Spark Plug (RCJ 6Y) PLN-952030249
...
6
Cylinder PLN-530012541
...
7
Seal-Cylinder (kit) PLN-530071750
...
8
RING PISTON PLN-545154001
...
9
Retainer-Piston Pin PLN-530015162
...
10
Kit - Piston (Incl. 8, 9) PLN-530071833
...
11
Assy-Crankshaft PLN-530012555
...
12
Assy-Crankcase (Incl. 41-43) PLN-530012584
...
13
Seal-Cyl/Carb.(kit) PLN-530071750
...
14
Adapter-Carb. PLN-530057547
...
15
Screw PLN-530016309
...
16
Gasket-Carb. (kit) PLN-530071750
...
17
Kit-Carb. Zama (C1U-W18) PLN-530071752
...
17
Kit-Carb. Zama (C1U-W18) (Note: Repair kits are not available for this carburetor) PLN-530071752
...
18
Air Box PLN-530057544
...
19
Screw PLN-530016429
...
20
Foam-Air Filter PLN-530036575
...
21
Cover-Air Box PLN-530058740
...
22
KIT MODULE W/O INTERRUPT PLN-545081826
...
23
Coupling-Drive PLN-530027953
...
24
Screw PLN-530016357
...
25
Assy-Leadwire PLN-530014663
...
26
Assy-Ground Wire PLN-530014662
...
27
Screw PLN-530016391
...
28
Assy.-Fan Hsg PLN-530071735
...
29
Kit-Switch PLN-530071356
...
30
Handle-Starter PLN-530058742
...
31
Kit - Rope PLN-530071798
...
32
Screw PLN-530016386
...
33
KIT STARTER SPRING PLN-545008011
...
34
Kit - Starter Pulley PLN-545081852
...
35
Baffle PLN-530057548
...
36
Screw PLN-530015880
...
37
Washer-Flat PLN-530015828
...
38
Assy-Flywheel PLN-530054115
...
39
Assy-C'case & C'shaft (Incl. 11,12,40) PLN-530071751
...
40
Retain. Ring-C'shaft PLN-530015941
...
41
Outer Bearing PLN-530055728
...
42
Seal PLN-530019264
...
43
BEARING BALL 6001 PLN-738210101
...
44
Kit-Piston/Rod (Incl. 10,45) PLN-530071785
...
45
CONNECTING ROD ASSY PLN-530049817
...
46
O-Ring-C'case (kit) PLN-530071750
...
47
Assy - Rear Plug (incl.46) PLN-530057954
...
48
Screw PLN-530016386
...
49
Shroud-Rear PLN-530058737
...
50
Retainer-Tank PLN-530016431
...
51
Assy-Fuel Tank (incl. filter, lines & fuel cap) PLN-545103702
...
52
Assy-Fuel Cap PLN-530058743
...
53
Kit-Fuel Line (Small) PLN-530069247
...
54
Kit-Fuel Line (Large) PLN-530069216
...
55
Assy-Fuel Pickup PLN-530095646
...
56
Kit-Engine Gasket (Incl. 7,13,16,46) PLN-530071750
...
56
Choke Lever - Zama Not Shown PLN-530057827
...
56
Choke Lever - Walbro Not Shown PLN-530058662
...
56
Bulb-Purge Not Shown PLN-530058709

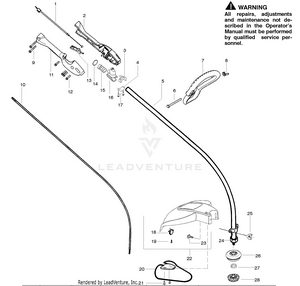

Handle & Controls

...
...
1
Assy-Throttle Cable PLN-530057785
...
2
Throttle Hsg. (Left) PLN-530058747
...
3
Locator- left PLN-530057562
...
4
Locator- right PLN-530057563
...
5
Assy-Drive Shaft Hsg. (incl. 3,4,15-17,24) PLN-530071779
...
6
Bolt-Handle PLN-530016422
...
7
Handle-Assist PLN-530058752
...
8
Wingnut PLN-530401992
...
9
Screw PLN-530016406
...
10
Shaft- Flex PLN-545007502
...
11
Throttle Hsg. (Right) PLN-530058748
...
12
Screw PLN-530015814
...
13
Trigger PLN-530058000
...
14
Nut-Push PLN-530016405
...
15
Spring-Actuator PLN-530016407
...
16
Actuator PLN-530057551
...
17
Screw PLN-530016386
...
18
Line Limiter PLN-530052287
...
19
Screw-Line Limiter PLN-530015814
...
20
Assy-Wire Guard PLN-530054459
...
21
Screw PLN-530016179
...
22
Kit-Shield (Incl.18,19,23,25) PLN-530071749
...
23
Bolt-Shield PLN-530015820
...
24
Dust Cup PLN-530057559
...
25
Wingnut PLN-530401992
...
26
Accy- Spool w/Line (Incl. 27) PLN-952711574
...
27
Guide-Line PLN-530403949
...
28
Assy-Cap PLN-530054223
...
28
Operator Manual Not Shown PLN-545186833
...
28
Decal-Start Inst. Not Shown PLN-530058594
...
28
Decal-Choke Not Shown PLN-530058597
...
28
Decal-Shaft Warning Not Shown PLN-545144405
...
...
...
