Husqvarna QC38B/954140110 (2002) Attachment

Model: QC38B/954140110 (2002)

Save
 Part Not Listed?Part Not Listed?
product name

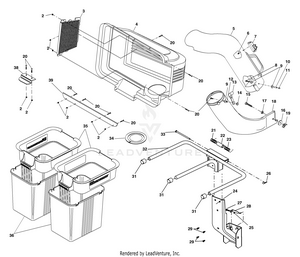

Grass Catcher

...
...
2
Nut, Crown lock #10-24 PLN-532069180
...
3
Screen, Cover PLN-532127533
...
4
Cover Asm. (Incl. 3,38,39) PLN-532171061
...
5
Chute, Upper PLN-532139569
...
6
Screw, Special PLN-818021008
...
7
Dump Bag Indicator PLN-532140572
...
8
SCREW.PAN.HEAD PLN-874981024
...
9
Washer 3/16x3/4x16 Ga. PLN-819061216
...
10
Spacer, Split PLN-532007206
...
11
NUT.#10-24 ACORN.ZD PLN-539108086
...
12
Washer, lock PLN-810071000
...
13
Latch, Chute PLN-532109808
...
14
NUT.WELD.#10-24 PLN-532002029
...
15
Bolt, Hex Head 3/8-16 x 1-1/4 PLN-874930620
...
16
Washer 13/32 x 1 x 12 Ga. PLN-819131612
...
17
Nut PLN-873680600
...
18
Chute, Lower PLN-532131970
...
19
Wingnut 3/8-16 PLN-532135651
...
20
Screw #10-24 x 5/8 PLN-871081010
...
21
Spring, Cover L.H.(black) PLN-532132796
...
22
Spacer, Cover PLN-532133235
...
23
Spring, Cover R.H. (gray) PLN-532132983
...
24
Support Assembly PLN-532180923
...
25
NUT.1/4C.NYLOC PLN-539976978
...
26
RETAINER SPRING PLN-532085902
...
27
Bolt PLN-872140405
...
28
Bracket, Stop PLN-532179745
...
29
Shoulder Bolt PLN-532170165
...
31
Plug, Tubing End PLN-532174083
...
32
Bagger, Frame PLN-532179746
...
33
Pin, Hinge PLN-532192786
...
34
Gasket, Cover PLN-532127534
...
35
Container, Top PLN-532183286
...
36
Container, Bottom PLN-532183286
...
38
Latch Handle, Cover PLN-532130895
...
39
Strip, Reinforcement PLN-532155042
...
xx
Owner's Manual PLN-532183159
...
...
...
