product name

Husqvarna PR7Y21CHB (2004-08) Walk-Behind Mower

Model: PR7Y21CHB (2004-08)

Save
 Part Not Listed?Part Not Listed?
product name

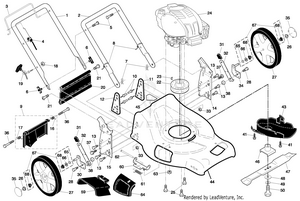

Drive

...
...
1
Upper Handle PLN-183496X479
...
2
Lower Handle PLN-151721X479
...
3
Control Bar PLN-146771
...
4
Engine Zone Control Cable PLN-133107
...
5
Handle Bolt PLN-191574
...
6
Handle Knob PLN-189713X428
...
7
Hairpin Cotter PLN-51793
...
8
Wire Tie PLN-664-26
...
9
Kit, Rear Door (Includes Key Numbers 16 and 17) PLN-180479
...
10
Pop Rivet PLN-128415
...
11
Support Bracket, LH PLN-175069X479
...
12
Support Bracket, RH PLN-175070X479
...
13
Screw 1/4-20 x 5/8 PLN-17060410
...
14
Handle Bracket Assembly, LH PLN-175576X479
...
15
Handle Bracket Assembly, RH PLN-175577X479
...
16
Spring, Rear Door, LH PLN-180071
...
17
Spring, Rear Door, RH PLN-180072
...
18
Keps Locknut 1/4-20 PLN-132004
...
19
Rope Guide PLN-179585
...
20
Rear Skirt PLN-189005
...
21
Hinge Screw 1/4-20 x 1-1/4 PLN-88652
...
25
Screw, Hex Head, Threaded, Rolled 3/8-16 x 1-1/8 PLN-150406
...
26
Nut, Hex, Flangelock 3/8-16 PLN-83923
...
27
Wheel & Tire Assembly, Rear, 14" PLN-181383
...
28
Bolt, Shoulder 5/16-18 PLN-160828
...
30
Axle Arm Assembly, Rear, RH PLN-180411X004
...
31
Selector Knob PLN-175478
...
32
Selector Spring PLN-175053X004
...
33
Nut, Hex, Nylock 5/16-18 PLN-73800500
...
34
Axle Arm Assembly, Rear, LH PLN-180412X004
...
36
Bolt, Rear Door PLN-184193
...
37
Thread Cutting Screw w/Sems 5/16-18 x 3/4 PLN-150078
...
38
Spacer PLN-183901
...
40
Mounting Bracket, Debris Shield PLN-188839X004
...
41
Screw, Debris Shield PLN-192325
...
43
Debris Shield PLN-188784
...
44
Kit, Housing (Includes Key Numbers 10, 11, 12 and 45) PLN-176710
...
45
Danger Decal PLN-107339X
...
46
Blade Adapter / Pulley PLN-189179
...
47
Blade, 21" PLN-189028
...
48
Hardened Washer PLN-851074
...
49
Helical Washer 3/8 PLN-850263
...
50
Hex Head Machine Screw 3/8-24 x 1-3/8 Grade 8 PLN-851084
...
51
Clamp, Cable PLN-111190X
...
52
Screw, Cable Clamp PLN-83816
...
53
Screw, Hex Head 1/4-20 x 2-11/64 PLN-183365
...
54
Throttle Control PLN-174221
...
59
Discharge Deflector PLN-175071
...
60
Hinge Bracket Assembly PLN-175735
...
61
Spring PLN-175285
...
62
Rod, Hinge PLN-175650
...
63
Locknut, Hex 1/4-20 PLN-73800400
...
64
Mulcher Door PLN-175066
...
65
O-Ring PLN-188152
...
66
Washer, Flat 3/8 PLN-88348
...
67
Kit, Bushing, High Wheel PLN-193498
...
68
Bushing, Nylon, Black PLN-193028X428
...
68
Warning Decal (not shown) PLN-162300
...
68
Operator's Manual, English PLN-172787
...
68
Operator's Manual, French PLN-172788
...
68
Repair Parts Manual, English / French PLN-192369

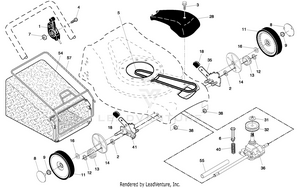

Frame

...
...
1
Control Cable Assembly PLN-184587
...
2
Bearing, Wheel Adjuster PLN-167387
...
3
Pan Head Tapping Screw #10-24 x 2-3/4 PLN-175262
...
4
Hex Washer Head Screw 1/4-20 x 2.12 PLN-158755
...
5
V-Belt PLN-175436
...
6
Spring Retainer PLN-150495
...
7
Nut, Hex, Flanged 1/4-20 PLN-191730
...
8
Hubcap PLN-77400
...
9
Locknut PLN-145212
...
11
Wheel & Tire Assembly PLN-180766
...
12
E-Ring PLN-12000058
...
13
Pinion PLN-137054
...
14
Dust Cover PLN-189403
...
16
Washer 1/2 PLN-67725
...
18
Selector Knob PLN-170143
...
28
Drive Cover PLN-180329
...
31
Nut, Hex, Flanged PLN-132010
...
32
Drive Pulley PLN-189407
...
35
Kit, Wheel Adjuster, LH (Includes Knob and Bearing) PLN-172291
...
36
Gear Case Assembly (See Breakdown) PLN-180184
...
38
Locknut 1/4-20 PLN-73800400
...
40
Spring PLN-137090
...
41
Kit, Wheel Adjuster, RH PLN-172290
...
54
Grassbag Assembly (Includes Knob and Bearing) PLN-188985
...
55
Driveshaft Cover PLN-175739
...
57
Frame, Grassbag PLN-188815

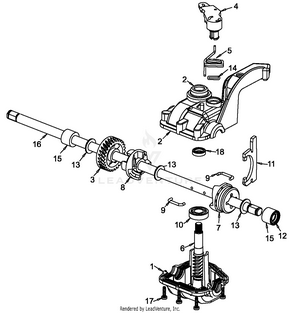

Gearcase Assembly

...
...
1
Case, Lower PLN-183497
...
2
Case, Upper PLN-183498
...
3
Gear, 27 Teeth PLN-183499
...
4
Lever, Clutch PLN-183500
...
5
Spring, Return PLN-183501
...
6
Shaft, Input PLN-183502
...
7
Dog, Movable PLN-183503
...
8
Dog, Fixed PLN-183504
...
9
Wire, Formed PLN-183505
...
10
Bearing, Ball PLN-183506
...
11
Fork, Shift PLN-183507
...
12
Seal, Output Shaft PLN-183508
...
13
Washer PLN-183509
...
14
Seal, Case PLN-183510
...
15
Bushing PLN-183511
...
16
Shaft, Output PLN-183512
...
17
Screw PLN-183513
...
18
Seal, Input Shaft PLN-183514
...
18
Kit, Gearcase Replacement (Includes Instructions) PLN-183404
...
...
...
