Husqvarna PPB335 (2009-01) Trimmer/Edger

Model: PPB335 (2009-01)

Save
 Part Not Listed?Part Not Listed?
product name

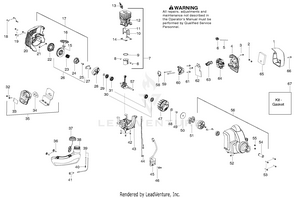

Engine

...
...
1
Cover - Airbox PLN-545189001
...
2
Nut - Carb. Screw PLN-530016101
...
3
Screw 8-32 PLN-530016301
...
4
Base - Airbox PLN-545188901
...
6
Assy - Purge Bulb PLN-530047721
...
7
Kit - Piston/Cylinder (Incl. 8,9,10,11,12) PLN-545008046
...
8
Retainer - Piston pin PLN-545194801
...
9
Ring - Piston PLN-545194601
...
10
Insert - Front Transfer Port PLN-545194901
...
11
Insert - Rear Transfer Port PLN-545195001
...
12
Cylinder - Machined PLN-545181801
...
13
Spark Plug (RCJ- 6Y) PLN-952030249
...
14
Seal - Cylinder (Kit) PLN-545008044
...
15
Kit - Rope PLN-545029901
...
16
Handle - Starter PLN-545208401
...
17
Assy - Starter/Shroud (Incl. 15,16,20,21,22,26) PLN-545212701
...
18
Screw M4 x 1.75 PLN-530016449
...
19
Screw m5x25mm PLN-530015897
...
20
Assy - Starter Hsg. w/eyelet PLN-545216101
...
21
Spacer PLN-545185301
...
22
Kit - Starter Spring PLN-545008013
...
23
Spring - Starter Hub PLN-545188301
...
24
Hub - Starter PLN-545188001
...
25
Screw m6 PLN-545112801
...
26
Kit - Starter Pulley PLN-545008049
...
27
Coupling - Starter (Incl. 23,24,25) PLN-545188201
...
28
Assy - Starter Cup PLN-545188701
...
29
Washer - Flat PLN-530015828
...
30
Seal - Crankshaft (kit) PLN-545008044
...
31
Bearing - Crankshaft PLN-545013401
...
32
Bolt - Muffler PLN-530058982
...
33
SPARK ARRESTER PLN-545224001
...
34
Gasket - Muffler (kit) PLN-545008044
...
35
Assy - Muffler (Incl. 32,33,34) PLN-545180701
...
36
Screw - Tank Retainer PLN-530016445
...
37
Assy-Fuel Cap PLN-530057973
...
38
ASSY FUEL TANK Incl. 37, 39,40,41) PLN-578942701
...
39
Kit - Fuel line (Incl. 40) PLN-530069599
...
40
Fitting - Fuel Line PLN-530023877
...
41
Assy - Fuel Pickup PLN-530095646
...
42
Screw - m5x25mm PLN-530015897
...
43
Crankcase PLN-545181901
...
44
Assy - Leadwire PLN-545191601
...
45
Module - Ignition PLN-545189701
...
46
Screw 8-32 PLN-530016357
...
47
Flywheel PLN-545120401
...
48
Washer PLN-530016463
...
49
Spacer - Flywheel PLN-530057852
...
50
Washer - Clutch PLN-530094189
...
51
Assy-Clutch PLN-530055122
...
52
Screw 10-24 x 1" PLN-530015774
...
53
Screw M5 x 25mm PLN-530015897
...
54
Guide - Clutch Drum PLN-545186401
...
55
Locknut 10-24 PLN-530015768
...
56
Assy - Fan Housing (Incl. 52,54,55) PLN-545212401
...
57
CRANKSHAFT PLN-545194001
...
58
Seal - Cyl./Adapter (kit) PLN-545008044
...
59
Bolt M5 x .80 PLN-530016418
...
60
ADAPTER, CARBURETOR PLN-575391501
...
61
Screw .20 x 32 PLN-530016441
...
62
Gasket - Carb./Adapter (kit) PLN-545008044
...
63
Boot - Carb. PLN-545190501
...
64
CARBURETOR ASSY PLN-525810501
...
65
Filter - Air PLN-545195901
...
66
Bolt - Knob PLN-530016465
...
67
Kit - Gasket (Incl. 14,30,34,58,62) PLN-545008044

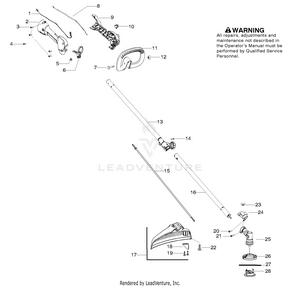

Shaft

...
...
1
Assy-Switch Wire PLN-545191801
...
2
Housing-Throttle (RH) PLN-545189402
...
3
Screw M4 PLN-530016449
...
4
Screw PLN-530015886
...
5
Spring-Trigger PLN-545190001
...
6
Kit - Trigger (Incl. 5) PLN-545008077
...
7
Bolt -1/4 -20 x 2 PLN-530015786
...
8
Assy -Throttle Cable PLN-545199301
...
9
Housing-Throttle (LH) PLN-545189302
...
10
Kit-Switch PLN-545008040
...
11
Assy - Handle Assist (Incl. 7,12) PLN-530058583
...
12
Wingnut PLN-530401992
...
13
Kit-Driveshaft Upper (Incl. #14) (Incl. #14) PLN-545006039
...
14
Screw -12 - 24 x .480 PLN-530016344
...
15
Flexshaft PLN-545132002
...
16
Kit-Driveshaft Lower (Incl. 15,20,21,24,25) PLN-545008072
...
17
Kit-Shield (Incl. 18,19,22,23) PLN-545003325
...
18
Limiter-Line PLN-530052286
...
19
Screw -10 - 14 x 3/4 PLN-530015814
...
20
Screw - 8-16 x .593 PLN-530015775
...
21
Screw - 12-24 x .960 PLN-530016014
...
22
Bolt - 1/4-20 x 1-1/4 PLN-530015820
...
23
Wingnut PLN-530401992
...
24
Bracket - Shield PLN-545150701
...
25
Assy - Gearbox 1" PLN-530096099
...
26
Assy - Fixed Line Head (Incl. line, 28) PLN-545053902
...
27
Accy - Line (12 pcs ) PLN-952711635
...
28
Cap - Fixed Line PLN-545049501
...
28
Manual Not Shown PLN-545186799
...
28
Decal-Shaft Warning (lower) Not Shown PLN-545209101
...
28
Decal-Shaft Warning (upper) Not Shown PLN-545167716
...
...
...
