Husqvarna PPB300E Type 1 (2009-02) Trimmer/Edger

Model: PPB300E Type 1 (2009-02)

Save
 Part Not Listed?Part Not Listed?
product name

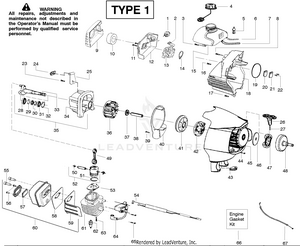

Engine - Type 1

...
...
1
Bulb-Purge PLN-530047721
...
2
Kit-Choke Lever PLN-530071717
...
3
Screw-tank PLN-530015843
...
4
Assy-Fuel Cap PLN-530057973
...
5
Assy-Fuel pickup PLN-530095646
...
6
Kit-Line Carb/Purge PLN-530069247
...
7
Kit-Fuel/Purge line PLN-530069216
...
8
Screw PLN-530015775
...
9
Cover-Air box PLN-545000501
...
10
Filter-Air PLN-545082301
...
11
Screw-Carb. PLN-530015849
...
12
Box-Air PLN-545000601
...
13
Kit-Carb assy. (C1U-W32) PLN-545006017
...
14
Seal-Carb.(kit) PLN-545030102
...
15
Assy-Fuel Tank PLN-545075305
...
16
Screw-Crankcase PLN-530015771
...
17
Screw-Shroud PLN-530015952
...
18
Assy-Rear Shroud PLN-545000701
...
19
O-ring-Shroud (kit) PLN-545030102
...
20
Valve-Reed PLN-530027593
...
21
Stop-Reed PLN-530029781
...
22
SCREW 6-19X.437 PLN-545227101
...
23
Screw-Retainer PLN-530015875
...
24
Isolator-Tank PLN-530055492
...
25
Ret.-Tank PLN-530054941
...
26
Handle-Starter PLN-530054834
...
27
Kit-Rope PLN-545050409
...
28
Bearing-Inner PLN-545081601
...
29
Retainer PLN-530015787
...
30
Seal PLN-530019158
...
31
Bearing-Outer PLN-530032102
...
32
Ret.-Crankshaft PLN-530015789
...
33
Assy-Crankshaft PLN-530028807
...
34
Assy-Crankcase (Incl. 28,29,30,31) PLN-545081901
...
35
Assy-C'case/C'shaft (Incl. 32,33,34) PLN-545006037
...
36
Assy-Flywheel PLN-530055524
...
37
Washer PLN-530016030
...
38
Spacer PLN-530055620
...
39
Screw-Baffle PLN-530015775
...
40
Plate-Baffle PLN-545115201
...
41
Kit-Pulley PLN-545050408
...
42
KIT STARTER SPRING PLN-545008014
...
43
Grommet PLN-530019182
...
44
Screw PLN-530016386
...
45
Assy-Fan Housing PLN-530059254
...
46
Washer-Clutch PLN-530094189
...
47
Assy-Clutch PLN-530055122
...
48
Assy-Drum/Adapter PLN-530150247
...
49
Assy-Conn. Rod PLN-530010960
...
50
Ret.-Piston pin PLN-530015162
...
51
Ring-Piston PLN-530012594
...
52
Kit-Piston (Incl. 50,51) PLN-530071998
...
53
Gasket-Cylinder(kit) PLN-545030102
...
54
Assy-Leadwire PLN-530058846
...
55
Bolt-Muffler 1/4"-20 PLN-530016387
...
56
Screw PLN-530015241
...
57
Kit-Spark Arrestor PLN-545030502
...
58
Gasket-Muffler (kit) PLN-545030102
...
59
Shield PLN-545033201
...
60
Kit-Muffler (Incl. 55,56,57,58,59) PLN-545006016
...
61
Cylinder PLN-530012586
...
62
Plug-Spark(RCJ-6Y) PLN-952030249
...
63
Bolt-Cyl. 1/4"-20 PLN-530001624
...
64
KIT MODULE W/O INTERRUPT PLN-545081826
...
65
Screw-Module PLN-530016357
...
66
Kit-Gasket/Seal (Incl. 14,19, 53,58) PLN-545030102
...
67
Assy-Throttle cable PLN-545026801

Shaft

...
...
1
Screw PLN-530015886
...
2
Screw PLN-530015886
...
3
Hsg.-Throttle-right PLN-530057983
...
4
Screw-Cable Retention PLN-530016326
...
5
Hsg.-Throttle-left PLN-530057984
...
6
Assy-Wire PLN-530058843
...
7
Kit-Switch PLN-530069572
...
8
TRIGGER THROTTLE RED PLN-545017701
...
9
Clamp-Harness (upper) PLN-530057986
...
10
Clamp-Bracket PLN-530058563
...
11
Screw PLN-530015886
...
12
Assy.-Handlebar (incl. grip,cap,decal) PLN-530071996
...
13
Clamp-Harness (lower) PLN-530057987
...
14
Screw PLN-530015940
...
15
Clamp-Handlebar PLN-530058765
...
16
Kit-Upper Shaft (Incl. Flex,clamp & 17) PLN-545006039
...
17
Screw PLN-530016344
...
18
Bracket-Shield PLN-530057554
...
19
Gearbox PLN-530096100
...
20
Screw PLN-530016312
...
21
FLEXSHAFT SPLIT BOOM PLN-545173003
...
22
Assy-Lower Shaft PLN-530071790
...
23
Screw PLN-530016014
...
24
Screw PLN-530015775
...
25
Shoulder Strap PLN-530094417
...
26
Limiter-Line PLN-530052285
...
27
Screw PLN-530015814
...
28
Bolt PLN-530015820
...
29
Wingnut PLN-530401992
...
30
Kit-Shield Assy. (incl. 26,27) PLN-530071997
...
31
Assy - Fixed Line Head PLN-545053902
...
32
Cap-Fixed Line PLN-545049501
...
33
Accy-Line (12 pcs.) PLN-952711635
...
34
Kit-Metal Shield PLN-530071383
...
35
Dust cup PLN-530095815
...
36
Accy.-Weed Blade PLN-952711584
...
37
Washer PLN-530095816
...
38
Washer-Belleville PLN-530016240
...
39
Nut-Flange PLN-530015793
...
39
Operator Manual Not Shown PLN-545137275
...
39
Decal-Shaft Warning Not Shown PLN-545176003
...
39
Decal-Blade Direction Not Shown PLN-530056335
...
39
Wrench-Hex 5/32" Not Shown PLN-530031159
...
39
Decal-Upper Shaft Warning Not Shown PLN-530056221
...
...
...
