product name

Husqvarna PPB300 (2009-02) Trimmer/Edger

Model: PPB300 (2009-02)

Save
 Part Not Listed?Part Not Listed?
product name

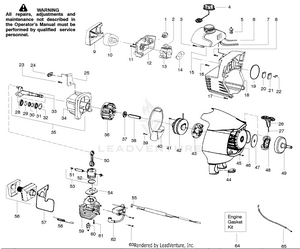

Engine

...
...
1
Bulb-Purge PLN-530047721
...
2
Kit-Choke Lever PLN-530071717
...
3
Screw-tank PLN-530015843
...
4
Assy-Fuel Cap PLN-530057973
...
5
Assy-Fuel pickup PLN-530095646
...
6
Kit-Line Carb/Purge PLN-530069247
...
7
Kit-Fuel/Purge line PLN-530069216
...
8
Screw PLN-530015775
...
9
Cover-Air box PLN-530054935
...
10
Filter-Air PLN-530054946
...
11
Screw-Carb. PLN-530015849
...
12
Box-Air PLN-530054934
...
13
Assy-Carb(WT628) PLN-530071637
...
14
Gasket-Carb.(kit) PLN-530071401
...
15
Assy-Fuel Tank PLN-545075305
...
16
Screw-Crankcase PLN-530015771
...
17
Screw-Shroud PLN-530015952
...
18
Shroud PLN-530058797
...
19
O-ring-Shroud (kit) PLN-530071401
...
20
Valve-Reed PLN-530027593
...
21
Stop-Reed PLN-530054596
...
22
SCREW 6-19X.437 PLN-545227101
...
23
Screw-Retainer PLN-530015875
...
24
Isolator-Tank PLN-530055492
...
25
Ret.-Tank PLN-530054941
...
26
Handle-Starter PLN-530054834
...
27
Kit-Rope PLN-530071325
...
28
Bearing-Inner PLN-530032103
...
29
Retainer PLN-530015787
...
30
Seal PLN-530019158
...
31
Bearing-Outer PLN-530032102
...
32
Ret.-Crankshaft PLN-530015789
...
33
Assy-Crankshaft PLN-530028807
...
34
Assy-Crankcase (Incl. 28,31) PLN-545081901
...
35
Assy-C'case/C'shaft (Incl. 32,33,34) PLN-545006037
...
36
Assy-Flywheel PLN-530055524
...
37
Washer PLN-530016030
...
38
Spacer PLN-530055620
...
39
Screw-Baffle PLN-530015775
...
40
Plate-Baffle PLN-545115201
...
41
Screw-Rope PLN-530016391
...
42
Kit-Pulley (incl.41) PLN-530071399
...
43
KIT STARTER SPRING PLN-545008011
...
44
Grommet PLN-530019182
...
45
Screw PLN-530016386
...
46
Assy.-Fan Housing PLN-530059254
...
47
Washer-Clutch PLN-530094189
...
48
Assy-Clutch PLN-530055122
...
49
Drum-Clutch PLN-530028799
...
50
Assy-Conn. Rod PLN-530010960
...
51
Ret.-Piston pin PLN-530015162
...
52
Ring-Piston PLN-530012594
...
53
Kit-Piston (Incl. 51,52) PLN-530071998
...
54
Gasket-Cylinder(kit) PLN-530071401
...
55
Assy-Leadwire PLN-530058846
...
56
Kit-Muffler PLN-530069310
...
57
Shield PLN-530058957
...
58
Spring-Muffler PLN-530036409
...
59
Kit-Cylinder PLN-530071582
...
60
Plug-Spark(RCJ-6Y) PLN-952030249
...
61
Bolt-Cyl. 1/4-20" PLN-530001624
...
62
Module-Ignition PLN-530039218
...
63
Screw-Module PLN-530016357
...
64
Kit-Gasket (Incl. 14,19, 54) PLN-530071401
...
65
Assy-Throttle cable PLN-545026801

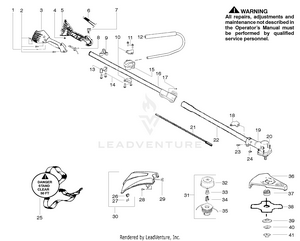

Shaft

...
...
1
Screw PLN-530015886
...
2
Screw PLN-530015886
...
3
Hsg.-Throttle-right PLN-530057983
...
4
Screw-Cable Ret. PLN-530016326
...
5
Hsg.-Throttle-left PLN-530057984
...
6
Assy-Wire PLN-530058843
...
7
Kit-Switch PLN-530069572
...
8
TRIGGER THROTTLE RED PLN-545017701
...
9
Clamp-Harness (upper) PLN-530057986
...
10
Clamp-Bracket PLN-530058563
...
11
Screw PLN-530015886
...
12
Assy.-Handlebar (incl. grip,cap,decal) PLN-530071394
...
13
Clamp-Harness (lower) PLN-530057987
...
14
Screw (incl. 26,27) PLN-530015940
...
15
Clamp-Handlebar (Incl. 32,35) PLN-530058765
...
16
KIT UPPER SHAFT BLACK PLN-575260201
...
17
Screw PLN-530016344
...
18
Bracket-Shield PLN-530057554
...
19
Gearbox PLN-530096100
...
20
Screw PLN-530016312
...
21
FLEXSHAFT SPLIT BOOM PLN-545173003
...
22
Assy-Lower Shaft PLN-530071790
...
23
Screw PLN-530016014
...
24
Screw PLN-530016224
...
25
Shoulder Strap PLN-530094417
...
26
Limiter-Line PLN-530052285
...
27
Screw PLN-530015814
...
28
Bolt PLN-530015820
...
29
Wingnut PLN-530401992
...
30
Kit-Shield Assy. PLN-530071765
...
31
Accy-Cutting Head PLN-952711581
...
32
Assy-Hub/Arbor PLN-530095772
...
33
Spring-Return PLN-530053241
...
34
Retainer-Spool PLN-530401957
...
35
Accy-Wound Spool PLN-952711580
...
36
Kit-Metal Shield PLN-530071383
...
37
Dust cup PLN-530095815
...
38
Accy.-Weed Blade PLN-952711584
...
39
Washer PLN-530095816
...
40
Washer-Belleville PLN-530016240
...
41
Nut-Flange PLN-530015793
...
41
Operator Manual Not Shown PLN-530164256
...
41
Decal-Shaft Warning Not Shown PLN-545176003
...
41
Decal-Blade Direction Not Shown PLN-530056335
...
41
Decal-Start Inst. Not Shown PLN-530057369
...
41
Wrench-Hex 5/32" Not Shown PLN-530031159
...
41
Decal-Upper Shaft warning Not Shown PLN-530056221
...
...
...
