Husqvarna PPB1000E Type 1 (2009-02) Trimmer/Edger

Model: PPB1000E Type 1 (2009-02)

Save
 Part Not Listed?Part Not Listed?
product name

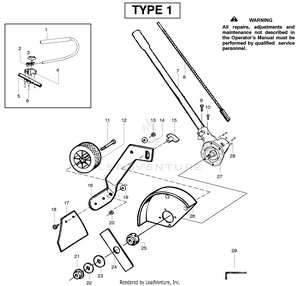

Cutting Equipment - Type 1

...
...
1
Kit-Handlebar (incl. grip,cap,decal) PLN-530071394
...
2
KIT TUBE CLAMP J-BAR UPGRADE PLN-530071868
...
3
KIT TUBE CLAMP J-BAR UPGRADE PLN-530071868
...
4
KIT TUBE CLAMP J-BAR UPGRADE PLN-530071868
...
5
KIT TUBE CLAMP J-BAR UPGRADE (incl. 6) PLN-530071868
...
6
Screw PLN-530016406
...
7
Assy.-Driveshaft PLN-530071863
...
8
Flexshaft-Split boom PLN-530096183
...
9
Screw PLN-530016014
...
10
Screw-Alignment PLN-530016224
...
11
Bolt-Shoulder Axle PLN-530015981
...
12
Wheel-4" (rubber) PLN-530095125
...
13
Locknut PLN-530015515
...
14
Washer PLN-530092062
...
15
Knob PLN-530092059
...
16
Bracket-Adj. Wheel PLN-530053009
...
17
Kit-Mud Flap (incl.#18) PLN-530071251
...
18
Fastener-Mud Flap PLN-530053012
...
19
Washer PLN-530092062
...
20
Locknut PLN-530015515
...
21
Nut-Flange (L.H.) PLN-530015793
...
22
Washer-Belleville PLN-530016240
...
23
Washer-Flat PLN-530015792
...
24
Accy-7.5" Blade PLN-952711625
...
25
Dustcup PLN-530054623
...
26
Kit-Edger Guard PLN-530071930
...
27
Kit-Gearbox PLN-530071586
...
28
Screw PLN-530016312
...
29
Wrench-Hex (5/32") PLN-530031159
...
29
Manual Not Shown PLN-530164693
...
29
Hanger-Attachment Not Shown PLN-530150031
...
29
Decal-Guard Warning Not Shown PLN-545074501
...
...
...
