Husqvarna PP4000C Type 2 (2009-02) Trimmer/Edger

Model: PP4000C Type 2 (2009-02)

Save
 Part Not Listed?Part Not Listed?
product name

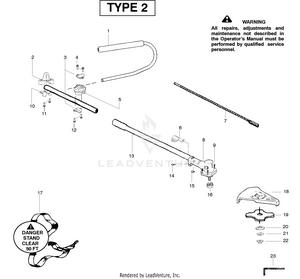

Handle & Controls - Type 2

...
...
1
Kit-Handlebar (incl. grip,cap,decal) PLN-530071394
...
2
KIT HARNESS CLAMP PLN-530071605
...
3
Clamp-Bracket PLN-530058563
...
4
Screw PLN-530015886
...
5
Clamp-Handlebar (7/8") PLN-530058766
...
5
Clamp-Handlebar (1") PLN-530058765
...
6
Bracket-Shield PLN-530095812
...
7
Flexshaft-Split boom PLN-530096183
...
8
Assy-Gearbox PLN-530071585
...
9
Screw PLN-530016312
...
10
KIT HARNESS CLAMP PLN-530071605
...
11
Screw PLN-530016406
...
12
Screw PLN-530015886
...
13
Assy.-Driveshaft PLN-530071860
...
14
Screw PLN-530016014
...
15
Screw-Alignment PLN-530016224
...
16
Dust cup - Blade PLN-530095815
...
17
Shoulder Strap PLN-530094417
...
18
Kit-Blade Shield PLN-530071383
...
19
Accy.-Weed Blade (8") PLN-952711584
...
20
Washer-Blade Retaining PLN-530095816
...
21
Washer-Belleville PLN-530016240
...
22
Nut-Flange PLN-530015793
...
23
Wrench-Hex (5/32") PLN-530031159
...
23
Manual Not Shown PLN-530164830
...
23
Hanger-Attachment Not Shown PLN-530150031
...
23
Decal-Shaft Warning Not Shown PLN-525433601
...
23
Decal-Blade Direction Not Shown PLN-530056335
...
...
...
