Husqvarna PP036 (2007-09) Trimmer/Edger

Model: PP036 (2007-09)

Save
Part Not Listed?Part Not Listed?
product name

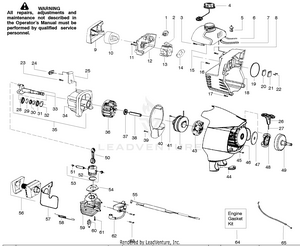

Engine

...
...
1
Bulb-Purge PLN-530047721

...
2
Kit-Choke Lever PLN-530071717

...
3
Screw-tank PLN-530015843

...
4
Assy-Fuel Cap PLN-530057973

...
5
Assy-Fuel pickup PLN-530095646

...
6
Kit-Line Carb/Purge PLN-530069247

...
7
Kit-Fuel/Purge line PLN-530069216


...
9
Cover-Air box PLN-530054935

...
10
Filter-Air PLN-530054946

...
11
Screw-Carb. PLN-530015849

...
12

...
13
Assy-Carb(WT628) (Note: Repair kits are not available for this carburetor) PLN-530071637

...
14
Gasket-Carb.(kit) PLN-530071401

...
15
Assy-Fuel Tank PLN-545075305

...
16
Screw-Crankcase PLN-530015771

...
17
Screw-Shroud PLN-530015952

...
18

...
19
O-ring-Shroud (kit) PLN-530071401

...
20
Valve-Reed PLN-530027593

...
21
Stop-Reed PLN-530054596

...
22
SCREW 6-19X.437 PLN-545227101

...
23
Screw-Retainer PLN-530015875

...
24
Isolator-Tank PLN-530055492

...
25
Ret.-Tank PLN-530054941

...
26
Handle-Starter PLN-530054834

...
27

...
28
Bearing-Inner PLN-530032103

...
29


...
31
Bearing-Outer PLN-530032102

...
32
Ret.-Crankshaft PLN-530015789

...
33
Assy-Crankshaft PLN-530028807

...
34
Assy-Crankcase ( Incl. 28-31) PLN-545081901

...
35
Assy-C'case/C'shaft ( Incl. 32,33,34) PLN-545006037

...
36
Assy-Flywheel PLN-530055524

...
37

...
38

...
39
Screw-Baffle PLN-530015775

...
40
Plate-Baffle PLN-545115201

...
41
Screw-Rope PLN-530016391

...
42
Kit-Pulley (incl.41) PLN-530071399

...
43
KIT STARTER SPRING PLN-545008011

...
44

...

...
46
Assy.-Fan Housing PLN-530055248

...
47
Washer-Clutch PLN-530094189

...
48
Assy-Clutch PLN-530055122

...
49
Drum-Clutch PLN-530028799

...
50
Assy-Conn. Rod PLN-530010960

...
51
Ret.-Piston pin PLN-530015162

...
52
Ring-Piston PLN-530012595

...
53
Kit-Piston (Incl. 51,52) PLN-530072000

...
54
Gasket-Cylinder(kit) PLN-530071401

...
55
Assy-Leadwire PLN-530058846

...
56
Kit-Muffler PLN-530069310

...
57

...
58
Spring-Muffler PLN-530036409

...
59

...
60
Plug-Spark(RCJ-6Y) PLN-952030249

...
61
Bolt-Cyl. 1/4-20" PLN-530001624

...
62
Module-Ignition PLN-530039218

...
63
Screw-Module PLN-530016357

...
64
Kit-Gasket ( Incl. 14,19, 54) PLN-530071401

...
65
Assy-Throttle cable PLN-545026801

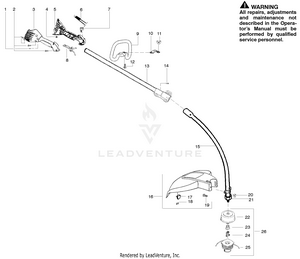

Handle & Controls

...


...
3
Hsg.-Throttle right PLN-530057983

...
4
Screw-Cable Retention PLN-530016326

...
5
Hsg.-Left throttle PLN-530057984

...
6
Assy-Wire PLN-530058843

...
7
Kit-Switch PLN-530069572

...
8
TRIGGER THROTTLE RED PLN-545017701

...
9
Assy-Handle PLN-530059101

...
10
Clamp-Assist Handle PLN-530059185

...
11


...
13
KIT UPPER SHAFT BLACK (Incl. flex, clamp & 14) PLN-575260201

...

...
15
Assy-Lower Shaft PLN-530071788

...
16
Kit-Shield Assy. (incl. 17,18,19,20) PLN-530071802

...
17
Limiter-Line PLN-530052286

...


...
20

...
21

...
22
KIT ASSY HUB W/ARBOR PLN-530071306

...
23
Spring-Return PLN-530053241

...
24
Retainer-Spool PLN-530401957

...
25
Accy-Wound Spool PLN-952711624

...
26
Accy-Cutting Head ( Incl. 22-25) PLN-952711630

...
xx
Operator Manual Not Shown PLN-545123423

...
xx
Decal-Shaft Warning (lower) Not Shown PLN-545209101

...
xx
Decal-Upper Shaft Not Shown PLN-530056221

...
xx
Decal-Start Inst. Not Shown PLN-530057369
...
...
...
