product name

Husqvarna PP025 Type 2 (2008-12) Trimmer/Edger

Model: PP025 Type 2 (2008-12)

Save
 Part Not Listed?Part Not Listed?
product name

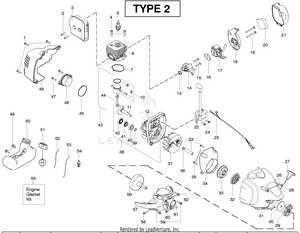

Engine - Type 2

...
...
1
Screw PLN-530015880
...
2
Bolt-Muffler PLN-530058982
...
3
Assy-Muffler/Shield (Incl. 2) PLN-530057538
...
4
Screw-Cylinder PLN-530015953
...
5
Spark Plug (RCJ 6Y) PLN-952030249
...
6
Cylinder PLN-530012541
...
7
Seal-Cylinder (kit) PLN-530071750
...
8
RING PISTON PLN-545154001
...
9
Retainer-Piston Pin PLN-530015162
...
10
Kit - Piston (Incl. 8, 9) PLN-530071833
...
11
ASSY CRANKSHAFT PLN-545145802
...
12
Assy-Crankcase (Incl. 40,41,42) PLN-530012582
...
13
Seal-Cyl/Carb.(kit) PLN-530071750
...
14
Adapter-Carb. PLN-530057547
...
15
Screw PLN-530016441
...
16
Gasket-Carb. (kit) PLN-530071750
...
17
Kit-Carb.(C1U-W19) PLN-530071811
...
18
Air Box PLN-545077501
...
19
Screw PLN-530016429
...
20
Foam-Air Filter PLN-530036575
...
21
Cover-Air Box PLN-530057545
...
22
KIT MODULE W/O INTERRUPT PLN-545081826
...
23
Spacer-Flywheel PLN-530059758
...
24
Screw PLN-530016357
...
25
Assy-Switch wire PLN-530047278
...
26
Screw PLN-530016386
...
27
Handle-Starter PLN-530054834
...
28
Kit - Rope PLN-545050409
...
29
Assy-Clutch PLN-530055122
...
30
Washer-Clutch PLN-530094189
...
31
Assy.-Fan Hsg PLN-545016004
...
32
KIT STARTER SPRING PLN-545008014
...
33
Kit-Starter Pulley PLN-545050407
...
34
Baffle PLN-545080601
...
35
Screw PLN-530015880
...
36
Washer-Clutch Flat PLN-530016463
...
37
Assy-Flywheel PLN-530039243
...
38
ASSY CRANKCASE & CRANKSHAFT (Incl. 11,12,39) PLN-545102101
...
39
Retain. Ring-C'shaft PLN-530015941
...
40
Outer Bearing PLN-530055728
...
41
Seal-C'shaft PLN-530019264
...
42
BEARING BALL 6001 PLN-738210101
...
43
Kit-piston/rod (Incl. 10,44) PLN-530071785
...
44
CONNECTING ROD ASSY PLN-530049817
...
45
O-Ring-C'case (kit) PLN-530071750
...
46
Assy-Plug (incl.45) PLN-530057954
...
47
Screw PLN-530016386
...
48
Shroud-Rear PLN-530057539
...
49
Retainer-Tank PLN-530016445
...
50
Assy-Fuel Tank (incl.filter, lines & fuel cap) PLN-545103702
...
51
Assy-Fuel Cap PLN-530057973
...
52
Kit-Fuel Line (Small) PLN-530069247
...
53
Kit-Fuel Line (Large) PLN-530069216
...
54
Assy-Fuel Pickup PLN-530095646
...
55
Kit-Engine Gasket (Incl. 7,13,16,45) PLN-530071750
...
56
Assy-Clutch Drum PLN-530150247
...
57
Assy-Clutch Cover (Incl. 60,61) PLN-545077301
...
58
Screw-Align PLN-530016319
...
59
Screw PLN-530015772
...
60
Screw 12-24 PLN-530016381
...
61
Nut 12-24 PLN-530016382
...
62
Screw PLN-530015814
...
63
Bulb-Purge Not Shown PLN-530058709

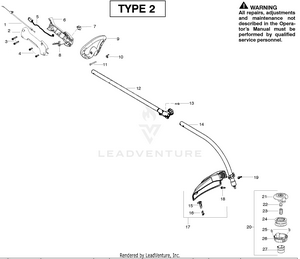

Shaft - Type 2

...
...
1
Assy-Throttle Cable PLN-530059759
...
2
Hsg.-Throttle (RH) PLN-530057541
...
3
Screw PLN-530016406
...
4
Screw PLN-530015814
...
5
Assy.-Wire PLN-530054183
...
6
Hsg. Throttle (LH) PLN-530059760
...
7
KIT SWITCH PLN-545049301
...
8
Trigger PLN-530049107
...
9
Assy - Handle Assist PLN-530058583
...
10
Wingnut PLN-530401992
...
11
Bolt PLN-530015786
...
12
KIT UPPER SHAFT BLACK (Incl. flex, clamp & 13) PLN-575260201
...
13
Screw PLN-530016344
...
14
Kit-Lower Shaft PLN-530071788
...
15
Limiter-Line PLN-530052286
...
16
Screw PLN-530015814
...
17
Kit-Shield Assy. (Incl. 15,16,18,19) PLN-530071802
...
18
Bolt PLN-530015820
...
19
Wingnut PLN-530401992
...
20
CUTTING HEAD ASSY TNG7 (Incl. 21,22,23,24,25,26,27) PLN-537419214
...
21
Housing PLN-537419303
...
22
Adapter PLN-537419901
...
23
Spring P25 PLN-537338801
...
24
Accy-Wound Spool PLN-952711636
...
25
Kit - Cover and Eyelet PLN-545003365
...
26
Kit - Cover and Eyelet PLN-545003365
...
27
Knob P25 PLN-537419601
...
28
Operator Manual Not Shown PLN-545177327
...
29
Decal-Shaft Warning Not Shown PLN-545209101
...
30
Decal-Upper Shaft Not Shown PLN-545167703
...
...
...
