product name

Husqvarna P4500F (2009-01) Trimmer/Edger

Model: P4500F (2009-01)

Save
 Part Not Listed?Part Not Listed?
product name

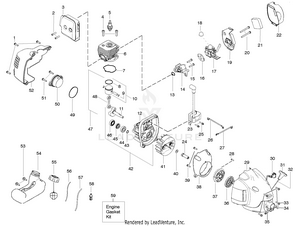

Engine

...
...
1
Screw PLN-530015880
...
2
Bolt-Muffler PLN-530058982
...
3
ASSY MUFFLER SHIELD (Incl. 2) PLN-545227901
...
4
Screw-Cylinder PLN-530015953
...
5
Spark Plug (RCJ 6Y) PLN-952030249
...
6
Cylinder PLN-530012541
...
7
Seal-Cylinder (kit) PLN-530071750
...
8
RING PISTON PLN-545154001
...
9
Retainer-Piston Pin PLN-530015162
...
10
Kit-Piston (Incl. 8, 9) PLN-530071833
...
11
Assy-Crankshaft PLN-530012555
...
12
Assy-Crankcase (Incl. 44,45,46) PLN-530012582
...
13
Seal-Cyl/Carb.(kit) PLN-530071750
...
14
Adapter-Carb. PLN-530057547
...
15
Screw PLN-530016441
...
16
Gasket-Carb. (kit) PLN-530071750
...
17
Kit-Carb Zama (C1U-W19) PLN-530071811
...
17
Kit-Carb Walbro ( WT-670) PLN-545081807
...
18
Bulb - Purge PLN-530058709
...
19
Air Box PLN-530059246
...
20
Screw PLN-530016429
...
21
Foam-Air Filter PLN-530036575
...
22
Cover-Air Box PLN-530057545
...
23
KIT MODULE W/O INTERRUPT PLN-545081826
...
24
Coupling-Drive PLN-530027953
...
25
Screw PLN-530016357
...
26
Assy-Leadwire PLN-530014663
...
27
Assy-Ground Wire PLN-530014662
...
28
Screw PLN-530016391
...
29
Assy.-Fan Hsg PLN-545008209
...
30
Kit-Switch PLN-545081869
...
31
Handle-Starter PLN-530058742
...
32
Kit - Rope PLN-530071798
...
33
Screw PLN-530016386
...
34
Nut 12-24 PLN-530016382
...
35
Screw 12-24 PLN-530016381
...
36
KIT STARTER SPRING PLN-545008011
...
37
Kit - Starter Pulley PLN-545081852
...
38
Baffle PLN-545080601
...
39
Screw PLN-530015880
...
40
Washer-Flat PLN-530015828
...
41
Assy-Flywheel PLN-530054115
...
42
Assy-C'case & C'shaft PLN-530071751
...
43
Retain. Ring-C'shaft PLN-530015941
...
44
Outer Bearing PLN-530055728
...
45
Seal-C'case PLN-530019264
...
46
BEARING BALL 6001 PLN-738210101
...
47
Kit - Piston / Rod (Incl. 10,48) PLN-530071785
...
48
CONNECTING ROD ASSY PLN-530049817
...
49
O-Ring-C'case (kit) PLN-530071750
...
50
Assy - Rear Plug (incl.49) PLN-530057954
...
51
Screw PLN-530016386
...
52
Shroud-Rear PLN-530058737
...
53
Retainer-Tank PLN-530016445
...
54
Assy-Fuel Tank PLN-545103702
...
55
Assy-Fuel Cap PLN-530058743
...
56
Kit-Fuel Line (Small) PLN-530069247
...
57
Kit-Fuel Line (Large) PLN-530069216
...
58
Assy-Fuel Pickup PLN-530095646
...
59
Kit-Engine Gasket (Incl. 7,13,16,49) PLN-530071750
...
59
Choke Lever - Zama Not Shown PLN-530057827
...
59
Choke Lever - Walbro Not Shown PLN-530058662

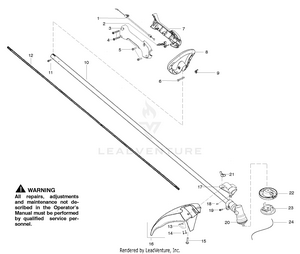

Shaft

...
...
1
Assy-Throttle Cable PLN-530057566
...
2
Trigger PLN-530049107
...
3
Throttle Hsg. (Right) PLN-530058751
...
4
Screw PLN-530016406
...
5
Screw PLN-530015814
...
6
Bolt-Handle PLN-530015786
...
7
Throttle Hsg. (Left) PLN-530058750
...
8
Assy-Handle (Incl. 6,9) PLN-530058753
...
9
Wingnut PLN-530401992
...
10
Assy-Drive Shaft Hsg. PLN-545008316
...
11
Screw PLN-530015886
...
12
Shaft- Flex PLN-530096169
...
13
Line Limiter PLN-530052285
...
14
Screw PLN-530015814
...
15
Bolt-Shield PLN-530015820
...
16
Kit-Shield Assy (Incl.13,14) PLN-530071823
...
17
Bracket-Shield PLN-545150701
...
18
Screw PLN-530015775
...
19
Screw PLN-530016014
...
20
Assy-Gearbox PLN-530096099
...
21
Wingnut PLN-530401992
...
22
Head- Fixed Line PLN-545202401
...
23
Cap- Fixed line PLN-545202501
...
24
Line .095 round (5 pcs) PLN-545214501
...
24
Operator Manual Not Shown PLN-545186897
...
24
Decal-Shaft Warning Not Shown PLN-545144405
...
...
...
