Husqvarna P2500 (2007-10) Trimmer/Edger

Model: P2500 (2007-10)

Save
 Part Not Listed?Part Not Listed?
product name

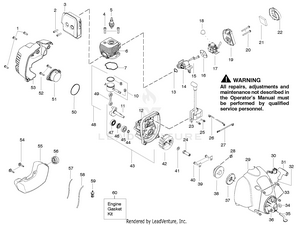

Engine

...
...
1
Screw PLN-530015880
...
2
Bolt-Muffler PLN-530058982
...
3
ASSY MUFFLER SHIELD (Incl. 2) PLN-545227901
...
4
Screw-Cylinder PLN-530015953
...
5
Spark Plug (RCJ 6Y) PLN-952030249
...
6
Cylinder PLN-530012541
...
7
Seal-Cylinder (kit) PLN-530071750
...
8
RING PISTON PLN-545154001
...
9
Retainer-Piston Pin PLN-530015162
...
10
Kit-Piston (Incl. 8, 9) PLN-530071833
...
11
Assy-Crankshaft PLN-530057829
...
12
Assy-Crankcase (Incl. 45,46,47) PLN-530012582
...
13
Seal-Cyl/Carb.(kit) PLN-530071750
...
14
Adapter-Carb. PLN-530057547
...
15
Screw PLN-530016441
...
16
Gasket-Carb. (kit) PLN-530071750
...
17
Kit-Carb. Zama (C1U-W18) PLN-530071752
...
17
Kit-Carb Walbro ( WT-670) (Note: Repair kits are not available for this carburetor) PLN-545081807
...
18
Bulb - Purge Zama PLN-530058709
...
18
Bulb - Purge Walbro PLN-530035497
...
19
BASE PLN-574615001
...
20
Screw PLN-530016429
...
21
Foam-Air Filter PLN-530057781
...
22
Cover-Air Box PLN-530057584
...
23
IGNITION MODULE PLN-530039237
...
24
Coupling-Drive PLN-530038604
...
25
Screw PLN-530016357
...
26
Assy-Leadwire PLN-530014663
...
27
Assy-Ground Wire PLN-530014662
...
28
Screw PLN-530016392
...
29
Assy.-Fan Hsg PLN-545010611
...
30
Kit-Switch PLN-545081869
...
31
Handle-Starter PLN-530027569
...
32
Kit - Rope PLN-530071767
...
33
Screw PLN-530016386
...
34
Nut PLN-530016124
...
35
Clip-Spring PLN-530057588
...
36
Screw PLN-530016430
...
37
STARTER SPRING PLN-545008010
...
38
Kit-Pulley-Starter PLN-530071786
...
39
Retainer-Pulley PLN-530027523
...
40
Screw PLN-530015775
...
41
Washer-Flat PLN-530015828
...
42
Assy-Flywheel PLN-530054115
...
43
Assy-C'case & C'shaft (Incl. 11,12,44) PLN-530071768
...
44
Retain. Ring-C'shaft PLN-530015941
...
45
Outer Bearing PLN-530055728
...
46
Seal-C'case PLN-530019264
...
47
BEARING BALL 6001 PLN-738210101
...
48
Kit-piston/rod (Incl . 10,49) PLN-530071785
...
49
CONNECTING ROD ASSY PLN-530049817
...
50
O-Ring-C'case (kit) PLN-530071750
...
51
Assy-Plug (incl.50) PLN-530057954
...
52
Screw PLN-530016386
...
53
Shroud-Rear PLN-545011004
...
54
Retainer-Tank PLN-530016445
...
55
Assy-Fuel Tank (incl. filter, lines & fuel cap) PLN-545104103
...
56
Assy-Fuel Cap PLN-530014347
...
57
Kit-Fuel Line (Small) PLN-530069247
...
58
Kit-Fuel Line (Large) PLN-530069216
...
59
Assy-Fuel Pickup PLN-530095646
...
60
Kit-Engine Gasket (Incl. 7,13,16,50) PLN-530071750
...
60
Choke Lever - Zama Not Shown PLN-530057827
...
60
Choke Lever - Walbro Not Shown PLN-530058662

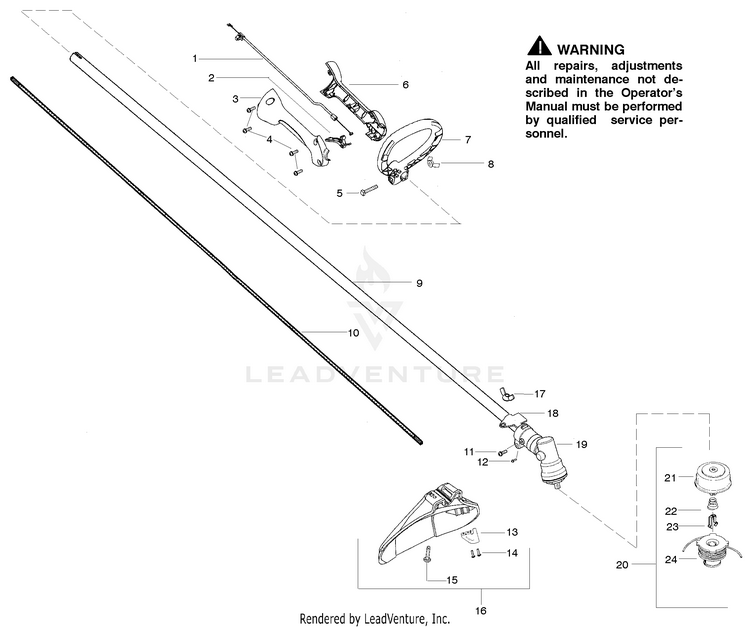

Shaft

...
...
1
Assy-Throttle Cable PLN-530057991
...
2
Trigger PLN-530049107
...
3
Throttle Hsg. (Right) PLN-530057582
...
4
Screw-Throttle Hsg. PLN-530015880
...
5
Bolt-Handle/Shield PLN-530015821
...
6
Throttle Hsg. (Left) PLN-530057581
...
7
KIT 3/4" ASSIST HANDLE (Incl. 5,8) PLN-530071747
...
8
Wingnut PLN-530401992
...
9
Assy-Drive Shaft Hsg. PLN-530071661
...
10
Shaft- Flex PLN-530096075
...
11
Screw PLN-530016014
...
12
Screw- Alignment PLN-530016224
...
13
Line Limiter PLN-530052285
...
14
Screw PLN-530015957
...
15
Bolt PLN-530015820
...
16
Kit-Shield Assy (Incl. 13,14,15,17) PLN-530071771
...
17
Wingnut PLN-530401992
...
18
Bracket-Shield PLN-530096067
...
19
Assy-Gearbox PLN-530096068
...
20
Accy-TNG VI Cutting Head (Incl. 21,22,23,24) PLN-952701724
...
21
Assy-Hub PLN-530095772
...
22
Spring-Compression PLN-530053241
...
23
Clip-Retainer-Head PLN-530401957
...
24
Accy- Spool w/Line PLN-952701721
...
24
Operator Manual Not Shown PLN-545154717
...
24
Decal-Shaft Warning Not Shown PLN-545144402
...
...
...
