Husqvarna LT120BR (1999 & Before) Tractor

Model: LT120BR (1999 & Before)

Save
 Part Not Listed?Part Not Listed?
product name

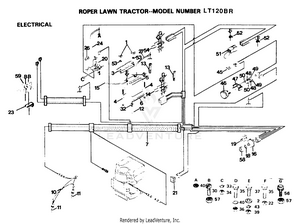

ELECTRICAL

...
...
1
SUB= 146525 PLN-73490400
...
2
WASHER PLN-19091016
...
3
SUB= 150109 PLN-105371X
...
4
BOLT PLN-72240460
...
5
SUB= 226J PLN-228J
...
6
"TRAY, BATTERY LT" PLN-105372X
...
7
HARNESS T PLN-120130X
...
10
HARNESS T PLN-110859X
...
11
SUB= 4152J PLN-7662J
...
12
SUB= 7697J PLN-7604J
...
13
WIRE TIE PLN-7192 J
...
14
SWITCH INTERLOCKT PLN-109553X
...
15
"CABLE T, BATTERY" PLN-2957J
...
16
SUB= STD365402 PLN-4406R
...
18
SUB= 147626 PLN-109787X
...
19
KEY MOLDED PLN-109434X
...
20
SUB= 146154 PLN-109081X
...
21
SWITCH LT PLN-110712X
...
22
SUB= 73690400 PLN-73680400
...
23
CLIP T PLN-4171R
...
24
SUB= 597J PLN-5907J
...
26
SUB= 154336 PLN-719J
...
27
CABLE ASSY LT PLN-2955J
...
30
SCREW PLN-74681008
...
32
HOSE CLAMP T PLN-109596X
...
33
SUB= 10040400 PLN-10090400
...
34
NUT PLN-73350400
...
35
BOLT PLN-74780408
...
36
NUT PLN-73510400
...
37
BOLT LT PLN-74760412
...
39
SUB= 50675 PLN-73220400
...
40
LOCKWASHER PLN-11050400
...
43
LOCKWASHER PLN-10040400
...
45
FUSE HYT PLN-108824X
...
46
AMMETER T PLN-9433R
...
47
SUB= 532131708 PLN-6009J
...
48
SUB= 10071000 PLN-10101000
...
49
NUT PLN-73911000
...
50
WASHER PLN-19070818
...
51
SUB= 141940 PLN-102501X
...
52
CLIPT PLN-235R
...
53
LOCKWASHER GT PLN-11030400
...
54
SWITCH-INTER. GT PLN-104445X
...
56
SUB= 71031008 PLN-71021008
...
57
"NUT,KEPS" PLN-73951000
...
58
SUB= 147626 PLN-109787X
...
59
SWITCH T PLN-121064X
...
xx
SHEET INSTR LT PLN-101539X
...
xx
NLA PLN-110667X
...
...
...
