Husqvarna HDF550M (2003) Tiller

Model: HDF550M (2003)

Save
Part Not Listed?Part Not Listed?
product name

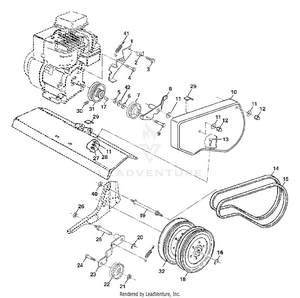

Belt Guard And Pulley Assembly

...
...
1
Assembly, Bracket, Belt Guard PLN-180377

...
2
Clip, Cable PLN-9484R

...
3
Screw, Hex, Washer Hd., Slotted, Thd. Cutting #10-24 x 1/2 Type D PLN-86777

...
4
Bolt, Hex 1/2-20 x 3/4 PLN-74610812

...
5
Nut, Hex Lock 3/8-16 PLN-73660600

...
6
Washer 13/32 x 13/16 x 16 Ga. PLN-19131316

...
7
Pulley, Idler, Reverse PLN-2009J

...
8
Assembly, Arm, Reverse Idler PLN-180323

...
9
Bolt, Hex 3/8-16 x 1-3/4 PLN-74760628

...
10
Guard, Belt PLN-156705X428

...
11
Washer 9/32 x 5/8 x 16 Ga. PLN-19091016

...
12
Nut, Cap 1/4- 20 PLN-104213X

...
13
Bolt, Carriage 1/4-20 x 3/4 PLN-72140406

...
14
V-Belt (Forward Motion) PLN-133035

...
15
V-Belt (Reverse) PLN-2614J

...
16
Ring, Retainer PLN-12000028

...
17
Key, Square PLN-2649M

...
18
Pulley, Flat, Trans. PLN-151236

...
19
Bolt, Belt Guard PLN-165914

...
20
Ring, Klip PLN-12000035

...
21
Nut, Hex, Jam 3/8-16 PLN-73350600

...
22
Pulley, Idler PLN-161806

...
23
Arm, Idler PLN-175377

...
24
Bolt Fin Flex 3/8-16unc X 1-1/4 PLN-74760620

...
25
Shaft, Idler Arm PLN-106968X

...
26
Nut, Hex, Jam 5/16-18 PLN-73350500

...
27
Nut, Fin Hex 1/4-20 PLN-73220400

...
28
Washer LK Hvy Helical 1/4 PLN-10040400

...
29
Pad, Idler PLN-109227X

...
30
Screw, Set, Socket, Headless C.P. 1/4-20 x 1/4 PLN-23200404

...
31
Sheave, Engine PLN-101189L

...
32
Pulley, V-Groove, Trans. PLN-151223

...
40
Nut Keps Hex 1/4-20 PLN-73510400

...
41

...
42

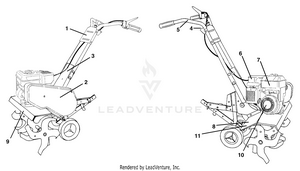

Decals

...
...
1
Decal, Logo PLN-157377

...
2
Decal, Logo PLN-157380

...
3
Decal, HP, Reverse PLN-157378

...
4
Decal, Reverse, Tine Control PLN-141914

...
5
Decal, Hand Placement PLN-141907

...
6
Decal, Eng. Tiller PLN-176391

...
7
Decal, OHV. N-I/C PLN-171077

...
8
Decal, Warning, Rotating Tines PLN-141906

...
9
Decal, Hvy Duty PLN-157381

...
10
Decal, Rewind Intek PLN-171078

...
11
Decal, Tine Shield Wrng. Dom PLN-162215

...
xx
Manual, Owner's (English) PLN-184860

...
xx
Manual, Owner's (Spanish) PLN-184861

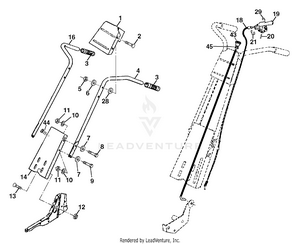

Handle Assembly

...
...
1
Panel Pnt Control PLN-180814X428

...
2
Bolt, Carriage 5/16-18 UNC x 1-1/2 PLN-72140512

...
3
Grip, Handle PLN-9266R

...
4
Handle, L.H. PLN-166376

...
5
Locknut, Crown 5/16-18 PLN-73680500

...
6
Washer 11/32 x 11/16 x 16 Ga. PLN-19111116

...
7
Washer 3/8 x 7/8 x 14 Ga. PLN-19121414

...
8
Bolt, Hex Hd. 5/16-18 x 1 PLN-74760516

...
9
Bolt, Hex Hd 5/16-18 x 3/4 PLN-74760512

...
10
Washer, Lock 5/16 PLN-10040500

...
11
Nut, Hex 5/16-18 PLN-73220500

...
12
Nut, Flanged 5/16-18 PLN-98000129

...
13
Bolt, Carriage 5/16-18 x 3/4 Gr. 5 PLN-180847

...
14
Panel, Handle PLN-181452X428

...
16
Handle, R.H. PLN-166377

...
18
Cable, Control, Tine PLN-166868

...
19
Lever, Control, Tine PLN-151229

...
20
Pin, Pivot PLN-154805

...
21
Ring, Klip PLN-12000027

...
28
Washer 13/32 x 13/16 x 12 Ga. PLN-19131312

...
29
Retaining, Ring PLN-12000059

...
43
Cable Assembly, Reverse PLN-180528

...
44

...
45
Nut Keps 3/8-24 Unf PLN-73920600

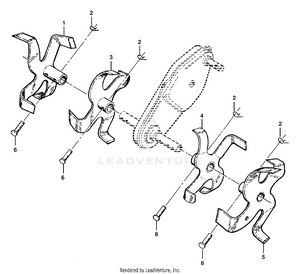

Tine Assembly

...
...
1
Tine, Outer, R.H. PLN-156934

...
2
Retainer, Spring PLN-3146R

...
3
Tine, Inner, R.H. PLN-156932

...
4
Tine, Inner, L.H. PLN-156931

...
5
Tine, Outer, L.H. PLN-156933

...
6
Pin, Clevis PLN-4929H

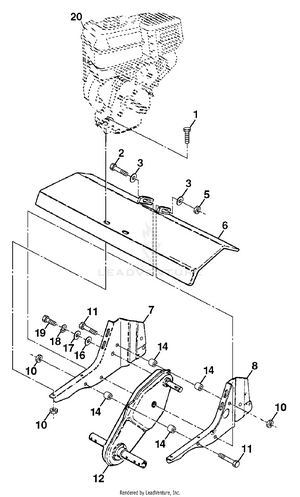

Transmission

...
...
1
Bolt, Hex 5/16-18 x 1-1/2 Gr. 2 PLN-74760524

...
2
Bolt, Hex, Fin 3/8-16 x 3-1/4 PLN-74780652

...
3
Washer 13/32 x 13/16 x 11 PLN-19131311

...
5
Locknut, Hex, w/washer 3/8-16 PLN-73800600

...
6
Shield, Tine PLN-9057R428

...
7
Bracket, Engine, R.H. PLN-165835

...
8
Bracket, Engine, L.H. PLN-1948J

...
11
Bolt, Hex 5/16-18 x 2-3/4 PLN-74760544

...
12
Transmission PLN-176112

...
14
Spacer, Split PLN-9173R

...
15
Nut Lock Hex Flg PLN-73970500

...
16
Washer 9/32 x 7/8 x 12 Ga. PLN-19091412

...
17
Washer 9/32 x 1-1/4 x 16 Ga. PLN-19092016

...
18
Washer, Lock 1/4 PLN-10040400

...
19
Bolt, Hex 1/4-28 x 3/4 Gr. 5 PLN-74610412

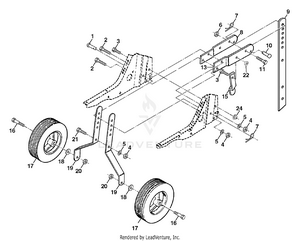

Wheel And Depth Stake Assembly

...
...
1
Pin, Clevis PLN-9194R

...
2
Bolt, Hex 5/16-18 x 1-1/4 PLN-74760520

...
3
Bolt, Hex 5/16-18 x 3/4 PLN-74760512

...
4
Nut, Hex 5/16-18 PLN-73220500

...
5
Washer, Lock 5/16 PLN-10040500

...
6
Locknut, w/washer 3/8-16 PLN-73800600

...
7
Clip, Hairpin PLN-4921H

...
8
Support, Depth Stake, R.H. PLN-1952J

...
9
Stake, Depth PLN-122233X

...
10
Pin, Clevis PLN-326J

...
11
Bolt, Hex, Fin 3/8-16 x 1-3/4 PLN-74780628

...
13
Support, Depth Stake, L.H. PLN-1951J

...
15
Spring, Stake PLN-5388J

...
16
Bolt, Shoulder PLN-121117X

...
17

...
18
Washer 13/32 x 13/16 x 11 Ga. PLN-19131311

...
19
Bracket, Wheel PLN-9190R

...
20
Locknut, Crown 3/8-16 PLN-73680600

...
21
Bolt, Hex 5/16-18 x 1 PLN-74760516

...
22
Locknut, w/insert 5/16-18 PLN-73800500

...
24
Nut Lock Hex Flange PLN-73970500
...
...
...
