product name

Husqvarna HD6A22HWD (2010-02) Walk-Behind Mower

Model: HD6A22HWD (2010-02)

Save
 Part Not Listed?Part Not Listed?
product name

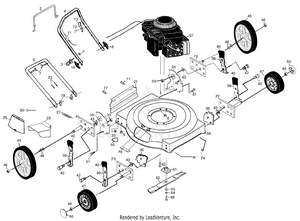

Product Complete

...
...
1
Locknut 1/4-20 PLN-63601
...
2
Control Bar PLN-161748
...
3
Rope Guide PLN-132001
...
4
Upper Handle PLN-165540X479
...
5
Lower Handle PLN-169708X479
...
6
Locknut 1/4-20 PLN-63601
...
7
Handle Bolt 5/16-18 PLN-131959
...
11
Engine Zone Control Cable PLN-158152
...
12
Hex Washer Head Screw #10-24 x 1/2 PLN-750097
...
13
Up-Stop Bracket PLN-850733X004
...
16
Handle Knob PLN-136376
...
19
Hairpin Cotter PLN-51793
...
21
Rear Deflector PLN-165858
...
22
Wire Tie PLN-664-26
...
23
Discharge Guard PLN-160831
...
27
Torsion Spring PLN-160832
...
30
Hinge Rod PLN-160833
...
33
Locknut 5/16-18 PLN-63124
...
34
Wheel Bracket Support (Left) PLN-170373X479
...
35
Wheel Bracket Support (Right) PLN-170374X479
...
36
Wheel Bracket Adjuster PLN-160835X007
...
39
Selector Spring PLN-160826X004
...
40
Selector Knob PLN-87877
...
41
Axle Arm Assembly (RR) PLN-166678X004
...
42
Shoulder Bolt PLN-160828
...
43
Washer PLN-19112222
...
44
Shoulder Bolt PLN-164362
...
45
Wheel Assembly (Rear) PLN-700735
...
46
Locknut 1/16-18 PLN-83923
...
47
Wheel Assembly (Front) PLN-146247
...
48
Washer PLN-57143
...
50
Hubcap PLN-77400
...
51
Hex Head Bolt 5/16-18 x 3/4 PLN-74760514
...
52
Hex Head Thread Rolling Screw 3/8-16 x 1 PLN-150406
...
55
Danger Decal PLN-141846
...
59
Lawn Mower Housing (Incl. Key Nos. 55) PLN-162685
...
61
Blade Adapter PLN-851514
...
62
22" Blade PLN-141114
...
63
Hardened Washer PLN-851074
...
64
Helical Lockwasher 3/8 PLN-850263
...
65
Screw Hex Head 3/8-24 x 1-3/8 (Grd. 8) PLN-851084
...
70
Axle Arm Assem.(LR) PLN-166679X004
...
72
Axle Arm Assm. ((LF) PLN-167132X004
...
73
Axle Arm Assm. (RF) PLN-167133X004
...
74
Nut PLN-751153
...
75
Plate. Mulcher PLN-160830
...
76
Clip. Closeout PLN-161622
...
77
Screw PLN-74760412
...
77
Warning Decal (Not shown) PLN-161058
...
77
Operator's Manual (English) PLN-161116
...
77
Operator's Manual (Spanish) PLN-161659
...
77
Replacement Parts Manual PLN-171720
...
77
Grass Catcher Available accessories not included with mower PLN-GCK3300
...
...
...
