Husqvarna GTB54A (2004) Attachment

Model: GTB54A (2004)

Save
 Part Not Listed?Part Not Listed?
product name

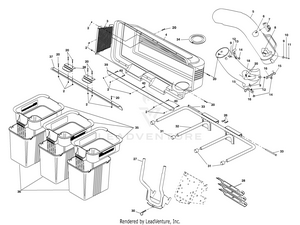

General Assembly

...
...
2
Nut, Crownlock #10-24 PLN-532069180
...
3
Screen, Cover PLN-532127533
...
4
COVER ASM BAGGER (Includes 3, 37, 38, 39) PLN-532400436
...
5
Chute, Upper PLN-532187299
...
6
Screw, Special #10-14x1/2 PLN-818021008
...
7
Dump bag Indicator PLN-532140572
...
8
SCREW.PAN.HEAD PLN-874981024
...
9
Washer 3/16x3/4x16 Ga. PLN-819061216
...
10
Spacer, Split PLN-532007206
...
11
NUT.#10-24 ACORN.ZD PLN-539108086
...
12
Washer, lock PLN-810071000
...
13
Latch, Chute PLN-532109808
...
14
NUT.WELD.#10-24 PLN-532002029
...
15
Latch Hook Asm. PLN-532160793
...
16
Latch Hook Asm. PLN-532160793
...
18
Chute, Lower PLN-532187300
...
20
Screw #10-24 x 5/8 PLN-871081010
...
26
RETAINER SPRING PLN-532085902
...
27
Support Assembly PLN-532176987
...
28
Blade, 54" High Lift PLN-532187256
...
30
Spring, Retainer PLN-532165898
...
31
Plug, Tubing End PLN-532174083
...
32
Bagger, Frame PLN-532176990
...
33
Pin, Hinge PLN-532192786
...
34
Gasket, Cover PLN-532127534
...
35
Container, Top PLN-532183286
...
36
Container, Bottom PLN-532129586
...
37
Seal, Cover PLN-532134637
...
38
Latch Handle, Cover PLN-532130895
...
39
Strip, Reinforcement PLN-532186601
...
40
Screw #10-24 x 1/2 PLN-871141008
...
xx
Owner's Manual PLN-532190226
...
...
...
