product name

Husqvarna GC190BR (1999 & Before) Tractor

Model: GC190BR (1999 & Before)

Save
 Part Not Listed?Part Not Listed?
product name

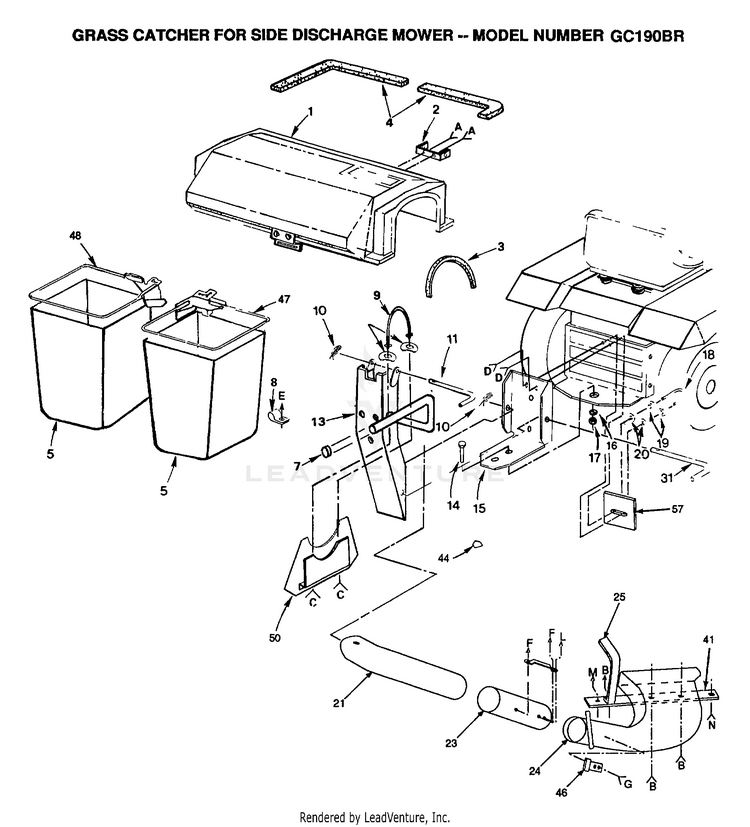

GRASS CATCHER, SIDE DISCHARGE

...
...
1
NLA PLN-120120X
...
2
BRACKET HINGE RB PLN-86578
...
3
FOAM.STRIP.RB PLN-110441X
...
4
SUB= 127073X PLN-106815X
...
5
GRASS BAG RB PLN-86575
...
7
PLUG END RB PLN-104389X
...
8
CLAMP PLN-83553
...
9
RETAINER RB PLN-86558
...
10
SUB= 85902 PLN-4939M
...
11
PIN RB PLN-120097X
...
13
POST SUPPORT RB PLN-110254X
...
14
SUB= 62361 PLN-123199X
...
15
NLA PLN-120245X
...
16
WASHER PM PLN-19131610
...
17
SUB= 73690600 PLN-73680600
...
18
U BOLT RB PLN-86626
...
19
NUT PLN-73350400
...
20
WASHER PLN-19091016
...
21
ELBOW RB PLN-110257X
...
23
TUBE CHUTE PLN-122185X
...
24
NLA PLN-122146X
...
25
STRAP DEFL PLN-122130X
...
31
SUB= 124475X PLN-86543
...
34
WASHER PLN-57734
...
41
BAR PLN-122129X
...
42
HANDLE RB PLN-120107X
...
44
DECAL HYT PLN-107339X
...
46
HOOD LATCH T PLN-109808X
...
47
ASSY FRAME RH PLN-123192X
...
48
ASSY FRAME LH PLN-123193X
...
50
SHIELD RB PLN-110255X
...
57
NLA PLN-120263X
...
xx
SUB= 105070X PLN-104419X
...
xx
OWNERS MANUAL PLN-122171X

HARDWARE

...
...
6
BOLT PLN-72110505
...
20
WASHER PLN-19091016
...
22
WASHER PLN-19091408
...
32
LATCH RB PLN-120203X
...
33
SUB= 73690500 PLN-73680500
...
35
SCREW.TRHD.10-24 PLN-74291008
...
36
SUB= 73690400 PLN-73680400
...
37
BOLT PLN-72110404
...
38
SUB= 146525 PLN-123198X
...
39
WELDNUT PLN-2029J
...
43
LOCKWASHER PLN-10071000
...
45
SUB= 74780414 PLN-74780412
...
49
WASHER PLN-19070818
...
51
NUT PLN-123195X
...
53
BOLT CRT PLN-72110508
...
xx
SUB= 105070X PLN-104419X
...
xx
OWNERS MANUAL PLN-122171X
...
...
...
