product name

Husqvarna FB25, 952711937 (2009-04) Trimmer/Edger

Model: FB25, 952711937 (2009-04)

Save
 Part Not Listed?Part Not Listed?
product name

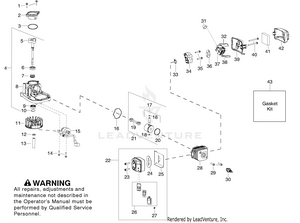

Engine

...
...
1
Screw PLN-530016386
...
2
Assy - Rear Plug (Incl. 3) PLN-530057954
...
3
O-Ring - Rear Plug (kit) PLN-545180866
...
4
Kit - Crankshaft / Crankcase (Incl. 5,8,10) PLN-545180861
...
5
Assy - Crankshaft PLN-545091101
...
6
BEARING BALL 6001 PLN-738210101
...
7
Seal - Crankshaft PLN-530019264
...
8
Assy - Crankcase (Incl. 6,7,9) PLN-530012582
...
9
Bearing - Outer PLN-530055728
...
10
Ring - Crankshaft Retainer PLN-530015941
...
11
Assy - Flywheel PLN-545197301
...
12
Washer PLN-530015149
...
13
Spacer - Flywheel PLN-545113701
...
14
Screw PLN-530016357
...
15
KIT MODULE W/O INTERRUPT PLN-545081826
...
16
Seal - Crankcase / Cylinder (kit) PLN-545180866
...
17
Kit - Piston (Incl. 18,20) PLN-530071833
...
18
Retainer - Wrist Pin PLN-530015162
...
19
CONNECTING ROD ASSY PLN-530049817
...
20
RING PISTON PLN-545154001
...
21
Kit - Piston and Rod (Incl. 17,19) PLN-530071785
...
22
Kit - Muffler (Incl. 23,24,25,26,27) PLN-545180865
...
23
Screw - Muffler PLN-530016338
...
24
Gasket - Muffler (kit) PLN-545180866
...
25
Shield - Muffler PLN-545210501
...
26
Kit - Spark Arrestor PLN-530071544
...
27
Screw PLN-530015241
...
28
Cylinder - Machined (25cc) PLN-530012541
...
29
Screw - Cylinder PLN-530015953
...
30
Accy - Spark Plug (RCJ-6Y) PLN-952030249
...
31
Bulb - Purge PLN-530058709
...
32
Kit - Throttle PLN-545180868
...
33
Seal - Cylinder/Carb. Adapter (kit) PLN-545180866
...
34
Adapter - Carburetor PLN-545197001
...
35
Screw PLN-530016441
...
36
Gasket - Carburetor (kit) PLN-545180866
...
37
Kit - Carburetor Assy. PLN-545180864
...
38
Kit - Choke PLN-545180869
...
39
Base - Air Box PLN-545193501
...
40
Screw PLN-530016429
...
41
Filter - Foam Air PLN-530036575
...
42
Cover - Air Box PLN-545193601
...
43
Kit - Gasket (Incl. 3,16,24,33,36) PLN-545180866

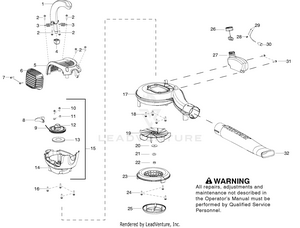

Housing

...
...
1
Assy - Handle (Incl. qty. 2 of ref. 2,3) PLN-545197801
...
2
Screw PLN-530015814
...
3
Spring - Isolator PLN-545206801
...
4
Isolator - Handle PLN-545203101
...
5
Housing - Upper Engine PLN-545192601
...
6
Assy - Muffler Guard PLN-525433201
...
7
Screw PLN-530016449
...
8
Handle - Starter PLN-530054834
...
9
Kit - Rope PLN-545180862
...
10
Screw - Retainer PLN-530015775
...
11
Retainer PLN-530027523
...
12
Kit - Starter Pulley (Incl. 10,11) PLN-545180863
...
13
KIT STARTER SPRING PLN-545008014
...
14
Assy - Fan housing with bearing PLN-526480601
...
15
Assy - Lower Engine Housing (Incl. 10,11,12,13,14) PLN-545196201
...
16
Screw PLN-530016386
...
17
Assy - Scroll Housing PLN-545203001
...
18
Screw PLN-530015814
...
19
IMPELLER PLN-576162901
...
20
Washer - Impeller PLN-545164501
...
21
Washer - Lock PLN-530092322
...
22
Nut PLN-530626605
...
23
Cover - Inlet PLN-545192901
...
24
Screw PLN-530015880
...
25
Deflector - Intake PLN-530057996
...
26
Cap - Fuel (w/retainer) PLN-530014347
...
27
Assy - Fuel Tank (Incl. 26,28,29,30) PLN-545197701
...
28
Fitting - Fuel Line PLN-530023877
...
29
Kit - Fuel Line (Incl. 28) PLN-530069599
...
30
Assy-Fuel Pick-up PLN-530095646
...
31
Screw PLN-530015880
...
32
Tube - Blower PLN-545193701
...
32
Manual Not Shown PLN-545186729
...
32
Decal - Warning Not Shown PLN-545216201
...
32
Decal - Entanglement Warning Not Shown PLN-525485301
...
32
Decal - Spark Arrestor Warning Not Shown PLN-522928601
...
...
...
