product name

Husqvarna CL46B (2002) Attachment

Model: CL46B (2002)

Save
Part Not Listed?Part Not Listed?
product name

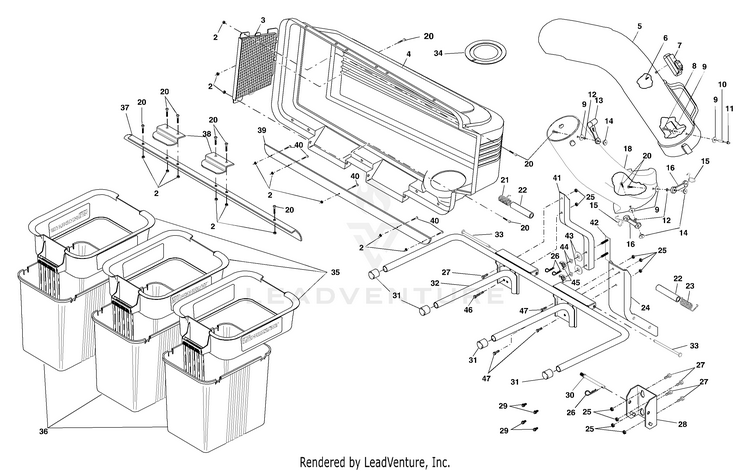

Grass Catcher

...
...
2
Nut, Crownlock #10-24 PLN-532069180

...
3
Screen, Cover PLN-532127533

...
4
COVER ASM BAGGER PLN-532400436

...
5
Chute, Upper PLN-532126840

...
6
Screw, Special #10-14x1/2 PLN-818021008

...
7
Dump Bag Indicator PLN-532140572

...
8
SCREW.PAN.HEAD PLN-874981024

...
9
Washer 3/16x3/4x16 Ga. PLN-819061216

...
10
Spacer, Split PLN-532007206

...
11
NUT.#10-24 ACORN.ZD PLN-539108086

...
12
Washer, lock PLN-810071000

...
13
Latch, Chute PLN-532109808

...
14
NUT.WELD.#10-24 PLN-532002029

...
15
Latch Hook Asm. PLN-532160793

...
16
Latch Hook Asm. PLN-532160793

...
18
Chute, Lower PLN-532145578

...
20
Screw #10-24 x 5/8 PLN-871081010

...
21
Spring, Cover L.H. (black) PLN-532132796

...
22
Spacer, Cover PLN-532133235

...
23
Spring, Cover R.H. (gray) PLN-532132983

...
24
POST.SUPPORT.BAGGER.2BIN PLN-532180925

...
25
Locknut 5/16 x 18 PLN-532063124

...
26
RETAINER SPRING PLN-532085902

...
27
HCS.5/16-18X3/4 PLN-539976934

...
28
Bracket, Mounting PLN-532170053

...
29
Shoulder Bolt,Self Tapping PLN-532170165

...
30
Pin, Support Post PLN-532131137

...
31
Plug, Tubing End PLN-532174083

...
32
Bagger, Frame PLN-532134639

...
33
Pin, Hinge PLN-532192786

...
34
Gasket, Cover PLN-532127534

...
35
Container, Top PLN-532183286

...
36
Container, Bottom PLN-532129586

...
37
Seal, Cover PLN-532134637

...
38
Latch Handle, Cover PLN-532130895

...
39
Strip, Reinforcement PLN-532155857

...
40
Screw #10-24 x 1/2 PLN-871141008

...
41
Bagger, Support Tube PLN-532156006

...
42
Reinforcement Plate PLN-532145186

...
43
Washer 11/32x1.5x10 Ga. PLN-819112410

...
44
Washer, lock PLN-810040500

...
45
Nut, Wing PLN-532128638

...
46
Bolt, Hex 5/16-18 x 2-1/4 PLN-874760536

...
47
Carriage Bolt 5/16-18 x 3/4 PLN-872110506

...
xx
Bag, 3.0 mil. 30 Gallon Trash (Not included with bagger) PLN-532104419

...
xx
Owner's Manual PLN-532156239
...
...
...
