Husqvarna C36C (2002) Attachment

Model: C36C (2002)

Save
 Part Not Listed?Part Not Listed?

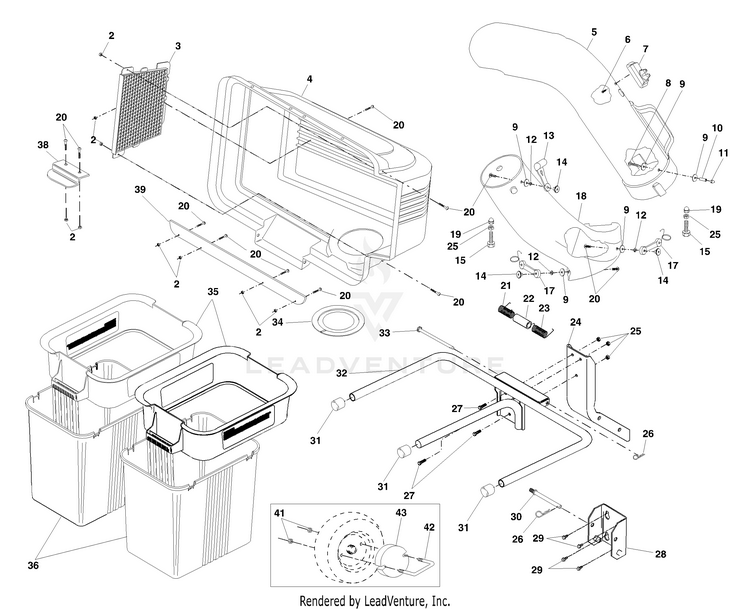

product name

Grass Catcher

...
...
2
Locknut #10-24 PLN-532069180
...
3
Screen, Cover PLN-532127533
...
4
Cover Assembly (Incl 3,38,39) PLN-532171061
...
5
Chute, Upper PLN-532128598
...
6
Screw, Special PLN-818021008
...
7
Indicator, Dump Bag PLN-532140572
...
8
SCREW.PAN.HEAD PLN-874981024
...
9
Washer 3/16 x 3/4 x 16 Ga. PLN-819061216
...
10
Spacer, Split PLN-532007206
...
11
NUT.#10-24 ACORN.ZD PLN-539108086
...
12
Washer, lock PLN-810071000
...
13
Latch, Chute PLN-532109808
...
14
NUT.WELD.#10-24 PLN-532002029
...
15
BOLT FIN HEX 5/16-18 X 1 PLN-874780516
...
17
Latch Hook Asm. PLN-532160793
...
18
Chute, Lower PLN-532128599
...
19
Nut, Acorn 5/16-18 PLN-532133841
...
20
Screw #10-24 x 5/8 PLN-871081010
...
21
Spring, Cover L.H. (black) PLN-532132796
...
22
Spacer, Cover PLN-532133235
...
23
Spring, Cover R.H. (gray) PLN-532132983
...
24
Post, Support PLN-532127720
...
25
Locknut 5/16 x 18 PLN-532063124
...
26
RETAINER SPRING PLN-532085902
...
27
RHSNB.5/16-18.X3/4.GR.5.ZD PLN-539990316
...
28
Bracket, Mounting PLN-532170053
...
29
Shoulder Bolt, Self-Tapping PLN-532170165
...
30
Pin, Support Post PLN-532131137
...
31
Cap, Tubing End PLN-532174083
...
32
Bagger, Frame PLN-532126919
...
33
Pin, Hinge PLN-532192786
...
34
Gasket, Cover PLN-532127534
...
35
Container, Top PLN-532183286
...
36
Container, Bottom PLN-532129586
...
38
Latch Handle, Cover PLN-532130895
...
39
Strip, Reinforcement PLN-532155042
...
41
Nut PLN-873680600
...
42
U-Bolt PLN-532137031
...
43
Weight, Wheel PLN-532123635
...
xx
Bag, 3.0 mil. 30 Gallon Trash (Not included with bagger) PLN-532104419
...
xx
Owner's Manual PLN-532140600
...
...
...
