Husqvarna 917375820 Walk Behind Mower

Model: 917375820

Save
 Part Not Listed?Part Not Listed?
product name

Husqvarna 917375820

...
...
1
Lawn Mower Handle Assembly, Upper PLN-427658
...
2
Lawn Mower Zone Control Cable HUS-532183567
...
3
Lawn Mower Bail Control Bar Stop Bracket HUS-532850733
...
4
Lawn Mower Mulching Plug PLN-166649
...
5
Plastic Cable Tie, 6-In, 8-Pack PLN-STD426600
...
6
Lawn Mower Handle Knob HUS-532185577
...
7
Lawn & Garden Equipment Self-Tapping Screw PLN-750634
...
8
Lawn Mower Bail Control Bar PLN-194580X422
...
9
Lawn Mower Discharge Chute Door Assembly PLN-193679
...
10
Lawn & Garden Equipment Pop Rivet PLN-128415
...
11
Lawn & Garden Equipment Hex Head Screw, #10-24 X 1/2-In PLN-150050
...
12
Machine Screw, 8-Pack PLN-STD512505
...
14
Lawn Mower Handle Bracket PLN-532195622
...
16
Lawn Tractor Discharge Chute PLN-532176655
...
17
Lawn Mower Deck Baffle, Rear PLN-532140661
...
18
Lawn Tractor Nut PLN-539976978
...
19
Lawn Mower Recoil Starter Rope Guide Kit HUS-586122501
...
20
Lawn Mower Rear Skirt PLN-413160
...
21
Lawn Mower Discharge Chute Door Spring, Left PLN-170938
...
24
Lawn Mower Discharge Chute Door Spring, Right PLN-170939
...
25
Lawn Mower Lock Nut, 3/8-In HUS-532409149
...
26
Lawn Mower Bolt PLN-184193
...
27

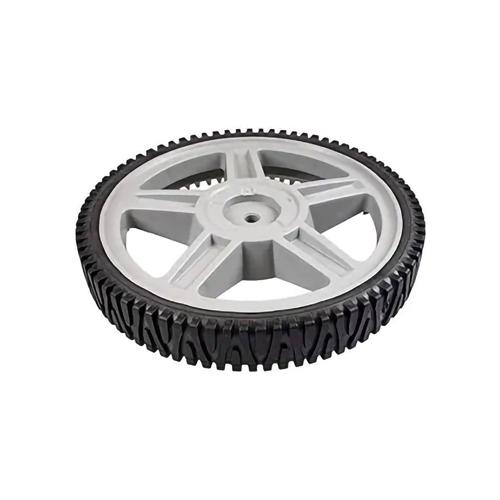

Lawn Mower Wheel, Rear PLN-581010309
...
28
Lawn & Garden Equipment Shoulder Bolt HUS-532174719
...
29
Lawn Mower Washer PLN-532401630
...
30
Lawn Mower Axle, Rear PLN-180413X004
...
32
Lawn Mower Selector Spring PLN-198169X004
...
33
Lawn Mower Mulching Door PLN-189917X498
...
34
Lawn Mower Height Adjuster Lever Spacer HUS-532401629
...
35
Lawn Mower Height Adjuster Plate PLN-700325X005
...
36
Lawn Mower Deflector Shield Hinge Bracket PLN-532175735
...
37
Snowblower Screw PLN-407767
...
38
Lawn Mower Discharge Chute Deflector PLN-402574X498
...
39
Lawn Mower Handle Bracket, Left PLN-532195915
...
40
Lawn Mower Handle Bracket, Right PLN-532195914
...
41
Lawn & Garden Equipment Bolt PLN-150406
...
42
Lawn Mower Deflector Shield Torsion Spring PLN-193000
...
43
Lawn Tractor Nut PLN-539976978
...
44
Lawn Mower Housing PLN-197556
...
45
Lawn Mower Discharge Chute Hinge Rod HUS-532175650
...
46
Lawn Mower Blade Adapter With Pulley PLN-443950
...
47
Lawn Mower 22-In Deck Blade HUS-532141114
...
48
Lawn & Garden Equipment Washer PLN-851074
...
49
Lock Washer, 8-Pack PLN-STD551137
...
50
Lawn & Garden Equipment Screw PLN-532435345
...
51
Lawn Mower Front Baffle PLN-532170031
...
52
Lawn Tractor Decal HUS-539913010
...
53
Lawn Tractor Screw PLN-17600406
...
54
Lawn & Garden Equipment Washer PLN-88348
...
55
Lawn Tractor Lock Nut PLN-73930600
...
56
Lawn Mower Screw HUS-532088652
...
57
Lawn Mower Cotter Pin HUS-532051793
...
58
Lawn Mower Lower Handle PLN-532151590
...
59
Lawn Mower Bolt HUS-532191574
...
60
Hex Bolt, 5-Pack PLN-STD523707
...
62
Lawn Mower Blade Debris Shield PLN-413032
...
63
Lawn Mower Hex Screw PLN-192325
...
65
Lawn Mower O-Ring PLN-197480
...
69
Cable Clip PLN-197991
...
72
Lawn Mower Screw PLN-182227
...
73
Lawn Mower Belt Keeper PLN-197162
...
74
Lawn Mower Nut PLN-182228

Husqvarna 917375820

...
...
xx
= Not shown on schematic.</span> FNLA
...
1
Lawn Mower Drive Control Assembly PLN-404142
...
3
Lawn Mower Drive Control Pulley PLN-187353
...
4
Lawn Mower Drive Control Lever PLN-425583
...
6
Fender Decal PLN-186198
...
7
Lawn Mower Drive Control Bracket PLN-400235X479
...
8
Lawn Mower Drive Control Cable PLN-197195
...
9
Lawn Mower Drive Control Panel Cover PLN-184987
...
10
Drive Decal PLN-189074
...
11
Lawn Mower Wheel HUS-581009202
...
12
Lawn Mower E-Ring PLN-12000058
...
13
Lawn Mower Drive Pinion Gear HUS-532403849
...
14
Lawn Mower Wheel Dust Cover HUS-581840401
...
15
Lawn Mower Transmission Axle Pin HUS-532404845
...
16
Lawn Mower Washer HUS-532067725
...
17
Lawn Mower Wheel Bearing Assembly PLN-421836
...
18
Lawn Mower Rear Height Adjuster Knob PLN-196401
...
23
Lawn Mower Screw HUS-532088652
...
24
Lawn Mower Hex Nut, #10-24 PLN-191730
...
25
Lawn Mower Belt Guide Bracket PLN-197163X479
...
26
Lawn Mower Hex Screw PLN-192325
...
27
Lawn & Garden Equipment Pan Head Screw PLN-175262
...
28
Lawn Mower Drive Cover PLN-194407X498
...
29
Lawn Mower Nut PLN-532409148
...
32
Lawn Mower Drive Pulley PLN-443262
...
33
Lawn Mower Ground Drive Belt, 3/8 X 33-3/16-In PLN-196857
...
35
Lawn Mower Height Adjuster HUS-581497907
...
36
Lawn Mower Transmission Assembly PLN-532191636
...
38
Lawn Tractor Nut PLN-539976978
...
40
Lawn Mower Spring PLN-192849
...
41
Lawn Mower Height Adjuster HUS-581497908
...
54
Lawn Mower Grass Bag PLN-410673
...
57
Lawn Mower Grass Bag Frame PLN-532189680
...
61
Lawn Mower Transmission Housing, Upper PLN-196886
...
62
Lawn Mower Transmission Assembly PLN-532191636
...
63
Lawn Mower Output Shaft Seal HUS-532183508
...
64
Lawn & Garden Equipment Bushing HUS-532183511
...
65
Lawn & Garden Equipment Washer HUS-532183509
...
66
Lawn Mower Worm Shaft Seal HUS-532183514
...
67
Lawn & Garden Equipment Bearing HUS-532183506
...
68
Lawn Mower Transmission Helical Gear HUS-532183499
...
69
Clutch PLN-196884
...
70
Formed Wire HUS-532183505
...
71
Clutch PLN-196883
...
72
Fork PLN-196882
...
73
Lawn Mower Screw PLN-183513
...
74
Gear Case Housing PLN-196881
...
75
Seal PLN-196880
...
76
Lawn Mower Lever PLN-196879
...
77
Lawn Mower Lever Screw PLN-196878
...
78
Spring PLN-196877
...
79
Lawn Mower Transmission Input Shaft PLN-532183502
...
...
...
