Husqvarna 5030-14 (1999 & Before) Tiller

Model: 5030-14 (1999 & Before)

Save
 Part Not Listed?Part Not Listed?
product name

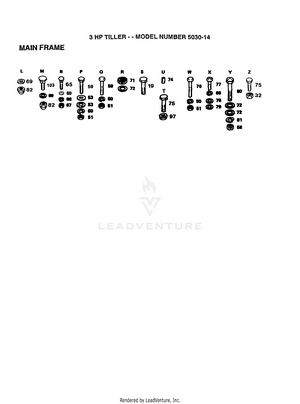

HARDWARE

...
...
19
SCREW PLN-74770812
...
32
SUB= 68478 PLN-1685H
...
50
LOCKWASHER PLN-10040500
...
51
NUT.HEX.5/16-18 PLN-73220500
...
53
WASHER PLN-19121414
...
58
GRIPCO NUT PLN-7810H
...
59
BOLT PLN-74760520
...
65
BOLT T PLN-72140406
...
66
LOCKWASHER PLN-10040400
...
67
SUB= 50675 PLN-73220400
...
69
WASHER PLN-19091016
...
71
SUB= 73690600 PLN-73680600
...
72
WASHER PLN-19131311
...
74
SET SCREW PLN-23230506
...
75
BOLT.HEX.5/16-1.5 PLN-74760524
...
76
SUB= 74780544 PLN-74760544
...
77
BOLT PLN-74610412
...
78
WASHER PLN-19092016
...
79
WASHER PLN-19091412
...
80
BOLT.3/8-24X3.75 PLN-74610652
...
81
Washer, Lock Hvy. Hlcl. Spr. 3/8 PLN-10040600
...
82
NUT-CAP TI PLN-104213X
...
97
NUT PLN-73510500
...
103
BOLT PLN-72140404

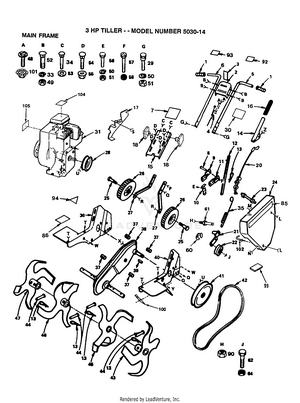

MAIN FRAME

...
...
1
SUB= 624A78 PLN-9266R
...
2
"BRKT,HANDLE" PLN-127046X424
...
3
DECAL, THROTTLE PLN-121751X
...
4
SUB= 532127011 PLN-127011X
...
5
SUB= 154127 PLN-2621J
...
6
SUB= 159764 PLN-2622J
...
7
"DECAL,PANEL HANDL" PLN-128574
...
8
DRILLED RIVET RT PLN-9551R
...
9
STAKE.SUPT.TILLER PLN-318J
...
10
STAKE SPRING CT PLN-325J
...
11
SUB= 317J500 PLN-317J
...
12
SUB= 9193R500 PLN-9193R
...
13
SPRING.RETAINER PLN-4921H
...
14
SUB= 164937 PLN-3069J
...
15
"PANEL,HANDLE" PLN-2626J424
...
16
GRIP T PLN-8206H
...
17
BRKT ASSY PLN-122955X
...
18
SUB= 136376 PLN-63688
...
20
SUB= 100382K PLN-3067J
...
21
IDLER ARM TI PLN-674A30
...
22
SUB= 75673 PLN-9178R
...
23
BOLT TI PLN-110528X
...
24
"GUARD,BELT" PLN-121613X424
...
25
BOLT SHOULDER PLN-121117X
...
26
SUB= STD333760 PLN-9186R
...
27
SUB= 674H4 PLN-9189R
...
28
PULLEY PLN-7417J
...
29
BOLT CT PLN-471J
...
30
DECAL, HANDLE BRACKET PLN-127914X
...
31
ENGINE - 3HP - BRIGGS & STRATTON PLN-121637X
...
33
WASHER PLN-19111116
...
34
BOLT PLN-72110510
...
35
SPRING EXT TI PLN-3070J
...
36
"BRKT,ENG RH" PLN-2606J424
...
37
SPLIT SPACER RT PLN-9173R
...
38
SUB= 918105391X PLN-105391X
...
39
KEY T PLN-2649M
...
40
"BRKT,ENG LH" PLN-110510X424
...
41
TRANS SHEAVE RT PLN-9174R
...
42
SUB= TH3H390 PLN-9179R
...
43
TINE ASS'Y LH PLN-106859X
...
44
DRILLED RIVET RT PLN-9194R
...
45
TINE INN LH TI PLN-106857X
...
46
TINE ASSY, INNER PLN-106858
...
47
TINE ASSY RH PLN-106860X
...
48
SCREW PLN-71091008
...
49
SUB= 73690500 PLN-73680500
...
50
LOCKWASHER PLN-10040500
...
51
NUT.HEX.5/16-18 PLN-73220500
...
52
BOLT PLN-72140512
...
53
WASHER PLN-19121414
...
54
BOLT PLN-72140506
...
55
NUT PLN-98000129
...
56
BOLT PLN-74760512
...
57
BOLT.3/8-24X1-1/2 PLN-74610624
...
58
GRIPCO NUT PLN-7810H
...
60
KLIP RING TI PLN-12000036
...
61
SHAFT IDLER TI PLN-106968X
...
62
Bolt Fin Flex 3/8-16unc X 1-1/4 PLN-74760620
...
64
NUT PLN-73350600
...
85
DECAL, BELT GUARD PLN-127915X
...
86
SUB= 120075X PLN-120076X
...
90
JAM NUT TI PLN-73350500
...
92
DECAL TI PLN-110613X
...
93
DECAL TI PLN-110614X
...
94
DECAL - OPEI PLN-110596X
...
99
PAD IDLER TI PLN-109227X
...
100
SHIELD-DIRT TI PLN-105358X
...
101
NUT PLN-73731000
...
102
KEEPER BELT PLN-121463X
...
104
DECAL TI PLN-110612X
...
105
"DECAL,ENG HP" PLN-126230X
...
xx
OWNER'S MANUAL PLN-127913X
...
...
...
