Husqvarna 4H494A (1999 & Before) Walk Behind Rotary Mower

Model: 4H494A (1999 & Before)

Save
 Part Not Listed?Part Not Listed?
product name

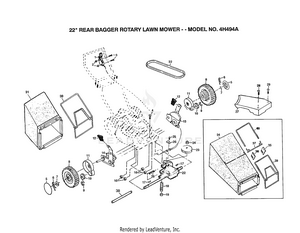

22" REAR BAGGER ROTARY LAWN MOWER

...
...
1
CONTROL.DRIVE PLN-133051
...
2
NUT PLN-74189
...
3
SCREW PLN-750029
...
4
BOLT PM PLN-74760444
...
5
HUB CAP PLN-77400
...
6
RETAINER CLIP PM PLN-85179
...
7
WASHER PLN-52160
...
8
WHL & TIRE ASS'Y PLN-850986
...
9
RING T PLN-12000003
...
10
PINION.10.TEETH PLN-74507
...
11
DUST COVER PLN-76401
...
12
KNOB PM PLN-87877
...
13
SUB= 48175 PLN-851032
...
14
SUB= 48174 PLN-851031
...
16
SUB= 73800400 PLN-63601
...
17
WOODRUFF KEY PLN-65692
...
18
SUB= 137090 PLN-83632
...
19
SUB= 73850400 PLN-68038
...
20
SPRING PLN-75192
...
22
SUB= 48281 PLN-132232
...
23
DRIVE PULLEY PLN-131482
...
24
LOCKNUT PLN-132010
...
25
SCREW WASHER HD PLN-750108
...
26
CABLE CLAMP PLN-83700
...
27
DRIVE COVER PLN-133215
...
28
SUB= 146072 PLN-87866
...
29
SUB= 149746 PLN-136797
...
30
CATCHER FRAME PLN-133413
...
31
GRASS BAG PLN-132655
...
32
V-BELT.LM.DRIVE PLN-83691
...
34
LEAF BAG PLN-700475
...
35
BRKT.HANG.HDLE LH PLN-700413
...
36
BRKT.HANG HNDL.RH PLN-700412
...
37
BRKT.HNG GRASSBAG PLN-700411
...
38
DRV SHAFT TUBE PM PLN-86012
...
39
FRAME THROAT ASSY PLN-700409
...
40
TUBE PLN-700410
...
xx
NLA PLN-851812
...
xx
CLIPPING DEFL PLN-MA36

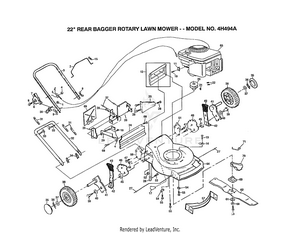

22" REAR BAGGER ROTARY LAWN MOWER

...
...
1
NUT PLN-73510400
...
2
CONTROL BAR PLN-132570
...
3
SUB= 154480X479 PLN-132670X479
...
4
SUB= 73800400 PLN-63601
...
5
"CABLE,ENG ZONE CO" PLN-130861
...
6
WASHER PM PLN-85723
...
7
"CONTROL, THROTTLE" PLN-700417
...
8
SUB= 74250434 PLN-85692
...
9
"NUT,WING PM" PLN-128638
...
10
SCREW PM PLN-83816
...
11
CABLE CLAMP PLN-213146
...
12
SUB= 91848137 PLN-48137
...
13
TAPPING SCREW PLN-750097
...
14
GUIDE CLIP PM PLN-87930
...
15
"SCREW,PAN HD" PLN-851552
...
17
DECAL HYT PLN-107339X
...
18
SCREW PM PLN-86344
...
20
ENGINE.PULLEY.FWG PLN-84596
...
21
HI PRO KEY PM PLN-87677
...
22
SCREW PLN-59708
...
23
REAR BAFFLE PLN-133040X479
...
24
SUB= 140540 PLN-128796
...
25
SUB= 700365X479 PLN-133189X479
...
26
SUB= 132680X479 PLN-132680X505
...
27
BLIND RIVET PLN-128415
...
28
SCREW PLN-54583
...
29
DISCHARGE BAFFLE PLN-133190X479
...
30
ROPE GUIDE PLN-132001
...
31
SUB= 7192J PLN-664-26
...
32
SUB= 151721X479 PLN-132813X479
...
33
BOLT.HANDLE.LM PLN-131959
...
34
HAIRPIN COTTER PLN-51793
...
35
HUB CAP PLN-77400
...
36
RETAINER CLIP PM PLN-85179
...
37
WASHER PLN-52160
...
38
SUB= 148446 PLN-851071
...
39
SUB= 142748 PLN-84921
...
40
"WASHER, BELLEVIL." PLN-62335
...
41
AXLE ARM PLN-85021X004
...
42
SUB= 700331X004 PLN-850855X004
...
43
KNOB PM PLN-87877
...
45
SUB= 146630 PLN-84920
...
46
SUB= 750085X007 PLN-850955
...
47
SCREW PLN-55187
...
48
SUB= 73690500 PLN-63124
...
50
SUB= 81963X479 PLN-81963X505
...
51
SUB= 81964X479 PLN-81964X505
...
52
LOCKNUT PM PLN-751592
...
53
SUB= 72140505 PLN-72070505
...
54
WASHER PLN-851201X004
...
55
SCREW PLN-850998
...
57
SUB= 144964 PLN-132255X479
...
59
SCREW PLN-851084
...
60
LOCKWASHER PLN-850263
...
61
"WASHER,HARDEN" PLN-851074
...
62
SUB= 141114 PLN-134768
...
63
ADAPTOR.BLADE.LM PLN-851514
...
64
SUB= 701437 PLN-700476
...
68
HINGE SCREW PLN-88652
...
69
MULCHER PLATE PLN-133170X479
...
70
SUB= 48283 PLN-134612
...
71
DEBRIS SHLD RET PLN-135030
...
xx
"MANUAL,OP" PLN-700480
...
xx
"MANUAL, PARTS" PLN-700481
...
xx
NLA PLN-851811

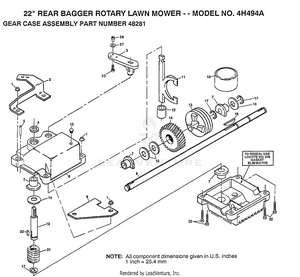

22" REAR BAGGER/GEAR CASE ASSY

...
...
xx
GEARCASE KIT PLN-48281
...
1
NUT PLN-73510400
...
2
"BRKT,ADJ" PLN-85177X004
...
3
SUB= 137053 PLN-131483
...
4
SEAL PLN-57072
...
5
DRIVE LOK PIN PLN-57388
...
6
CASE HALF KIT PM PLN-48032
...
7
BEARING PLN-77881
...
8
SPRING BRKT PLN-81585X004
...
9
DRIVE SHAFT PLN-750430
...
10
THRUST WASHER PLN-57079
...
11
CLUTCH YOKE PLN-131484
...
12
SUB= 700343 PLN-131485
...
13
PLUG PM PLN-86447
...
14
HELICAL GEAR PLN-133804
...
15
SUB= 750436X PLN-750436
...
16
SUB= 6066J PLN-750355
...
17
RING T PLN-12000003
...
18
HI PRO KEY PLN-850848
...
19
WORM SHAFT PLN-131481
...
20
WOODRUFF KEY PLN-65692
...
21
WORM PLN-83680
...
22
SUB= 2276J PLN-50950
...
...
...
