Husqvarna 4H472F (1996) Walk Behind Rotary Mower

Model: 4H472F (1996)

Save
 Part Not Listed?Part Not Listed?
product name

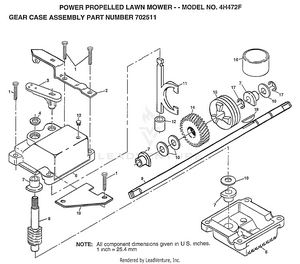

GEAR CASE

...
...
xx
SUB= 48367 PLN-702511
...
1
SCREW.1/4-20 PLN-17490416
...
2
BRACKET.GEARCASE PLN-137055X004
...
3
SHIFTER PLN-137053
...
4
SEAL PLN-57072
...
6
KIT GEARCASE HALV PLN-48373
...
7
BEARING PLN-77881
...
8
SHAFT.WORM PLN-137051
...
9
SHAFT.DRIVE PLN-137074
...
10
THRUST WASHER PLN-57079
...
11
CLUTCH YOKE PLN-131484
...
12
BUSHING.GEAR BOX PLN-700343
...
13
PLUG PM PLN-86447
...
14
GEAR.HELICAL PLN-137050
...
15
CLUTCH JAW PLN-750436X
...
16
SUB= 6066J PLN-750369
...
17
RING T PLN-12000003
...
18
HI PRO KEY PLN-850848
...
19
SPRING BRKT PLN-81585X004

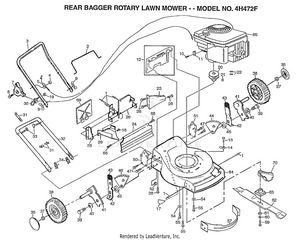

REAR BAGGER

...
...
1
BLIND RIVET PLN-128415
...
2
BAIL.CNTRL.DLX.ST PLN-146771
...
3
SUB= 154480X479 PLN-149637X479
...
4
SUB= 73800400 PLN-63601
...
5
"CABLE,ENG ZONE CO" PLN-130861
...
7
"CONTROL, THROTTLE" PLN-700417
...
8
SCREW.HXHD.WASH. PLN-144929
...
9
"NUT,WING PM" PLN-128638
...
10
SCREW PM PLN-83816
...
11
CABLE CLAMP PLN-213146
...
12
KIT.DOOR.REAR PLN-151023
...
13
TAPPING SCREW PLN-750097
...
14
GUIDE CLIP PM PLN-87930
...
17
DECAL HYT PLN-107339X
...
18
SCREW.HXTAP.10-24 PLN-150050
...
19
NUT PLN-73510400
...
20
ENGINE.PULLEY.FWG PLN-84596
...
21
HI PRO KEY PM PLN-87677
...
22
SCREW PLN-59708
...
23
REAR BAFFLE PLN-133040X479
...
24
SKIRT.REAR.FGD.22 PLN-140540
...
25
BAFFLE.SIDE PLN-700365X479
...
26
PLATE.BACK PLN-700360X479
...
28
SCREW PLN-54583
...
29
DISCHARGE BAFFLE PLN-133190X479
...
30
ROPE GUIDE PLN-132001
...
31
SUB= 7192J PLN-151517
...
32
LOWER HANDLE PLN-151721X479
...
33
BOLT.HANDLE.LM PLN-131959
...
34
HAIRPIN COTTER PLN-51793
...
35
HUB CAP PLN-77400
...
37
HEX FLANGE LOCKNT PLN-83923
...
38
WHEEL.8X2.PR.RAD. PLN-146247
...
39
BOLT SHLD 3/8-16 PLN-142748
...
40
"WASHER, BELLEVIL." PLN-62335
...
41
ARM.AXLE.ASM.BZP. PLN-145935X004
...
42
SPRING SELECTOR PLN-700331X004
...
43
KNOB PM PLN-87877
...
44
BRACKET.ADJ.9.LH PLN-700326X007
...
45
SPACER.HEIGHT.ADJ PLN-146630
...
46
BRACKET.ADJ.9.RH PLN-700327X007
...
47
SCREW.HXWS.5/16 PLN-150078
...
50
BRACKET.HDL.RH. PLN-151588X479
...
51
BRACKET.HDL.LH. PLN-151589X479
...
52
LOCKNUT PM PLN-751592
...
54
WASHER PLN-851201X004
...
55
BOLT.ENG.3/8-16 PLN-150406
...
57
SUB= 144964 PLN-132255X479
...
59
SCREW PLN-851084
...
60
LOCKWASHER PLN-850263
...
61
"WASHER,HARDEN" PLN-851074
...
62
"BLADE.MULCH.22""" PLN-141114
...
63
ADAPTOR.BLADE.LM PLN-851514
...
64
KIT.HSG.22RD.FWGD PLN-149106
...
68
HINGE SCREW PLN-88652
...
69
MULCHER PLATE PLN-133170X479
...
70
SUB= 48283 PLN-134612
...
xx
MANUAL.GEN.SP.E. PLN-145658
...
xx
MANUAL.P.4H472F PLN-154260
...
xx
CLIPPING DEFL PLN-MA36

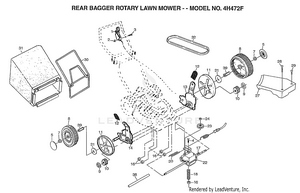

REAR BAGGER

...
...
1
CONTROL.DRV.56.25 PLN-146323
...
2
SUB= 73800400 PLN-63601
...
3
SCREW.HXHD.WASH. PLN-144929
...
4
BOLT.1/4-20X2.0 PLN-700875
...
5
HUB CAP PLN-77400
...
7
NUT.HXFLG.LOCK. PLN-145212
...
8
WHEEL.8X2.LP.PR PLN-700953
...
9
E-RING.7/16.RE. PLN-12000058
...
10
PINION.GEAR PLN-137054
...
11
DUST SHROUD PM PLN-88080
...
12
KNOB PM PLN-87877
...
13
WHEEL.ADJ.ASM.LH. PLN-151521
...
14
WHEEL.ADJ.ASM.RH. PLN-151520
...
16
SUB= 73800400 PLN-63601
...
17
HI PRO KEY PLN-850848
...
18
SPRING.TENSION PLN-137090
...
20
SPRING PLN-75192
...
21
WASHER FLUT PLN-67725
...
22
SUB= 48367 PLN-702511
...
23
PULLEY.DRIVEN PLN-137052
...
24
LOCKNUT PLN-132010
...
27
"COVER.DRIVE 22""RD" PLN-137081
...
28
SCREWL.SLOT.TORXT PLN-146072
...
29
SCREW.SLOT.TORTX. PLN-149746
...
30
FRAME.CATCHER.2.5 PLN-149555
...
31
GRASSBAG.250B1.BL PLN-149596
...
32
SUB= 157769 PLN-137078
...
38
DRV SHAFT TUBE PM PLN-86012
...
39
BUSHING.HEX PLN-88446
...
xx
NLA PLN-851812
...
...
...
