product name

Husqvarna 4E372B (1999 & Before) Walk Behind Rotary Mower

Model: 4E372B (1999 & Before)

Save
 Part Not Listed?Part Not Listed?
product name

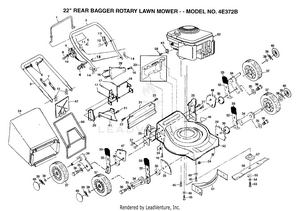

22" REAR BAGGER MOWER

...
...
1
CONTROL BAR PLN-131696
...
2
SUB= 154480X479 PLN-131697X479
...
3
SUB= 151721X479 PLN-132813X479
...
4
ROPE GUIDE PLN-132001
...
5
SUB= 73800400 PLN-63601
...
6
BOLT.HANDLE.LM PLN-131959
...
7
SUB= 7192J PLN-664-26
...
8
SUB= 144929 PLN-86055
...
9
CNTL.THROT.47.5 PLN-700654
...
10
WASHER PM PLN-85723
...
11
"CABLE,ENG ZONE CO" PLN-130861
...
12
TAPPING SCREW PLN-750097
...
13
"BRKT,UPSTOP" PLN-850733X004
...
14
"NUT,WING PM" PLN-128638
...
15
HAIRPIN COTTER PLN-51793
...
16
SCREW PLN-54583
...
17
BLIND RIVET PLN-128415
...
18
NUT PLN-73510400
...
19
PLATE.BACK PLN-700360X479
...
20
BAFFLE.SIDE PLN-700365X479
...
21
SUB= 140540 PLN-128796
...
22
HINGE SCREW PLN-88652
...
23
SUB= 91848137 PLN-48137
...
24
LOCKNUT PM PLN-751592
...
25
SUB= 150956 PLN-700913X479
...
26
SUB= 150956 PLN-700915X479
...
27
SCREW PLN-55187
...
28
REAR BAFFLE PLN-133040X479
...
29
BRACKET.ADJ.9POS. PLN-700325X007
...
30
SUB= 146630 PLN-84920
...
31
SCREW PM PLN-86344
...
32
SPRING SELECTOR PLN-700331X004
...
33
KNOB PM PLN-87877
...
34
AXLE ARM PLN-85021X004
...
35
"WASHER, BELLEVIL." PLN-62335
...
36
SUB= 142748 PLN-84921
...
37
SUB= 146247 PLN-800390
...
38
WASHER PLN-52160
...
39
RETAINER CLIP PM PLN-85179
...
40
HUB CAP PLN-77400
...
41
DISCHARGE BAFFLE PLN-133190X479
...
42
MULCHER PLATE PLN-133170X479
...
43
CABLE CLAMP PLN-213146
...
45
SCREW PLN-850998
...
46
DECAL HYT PLN-107339X
...
47
BRACKET.ADJ.9.RH PLN-700327X007
...
48
BRACKET.ADJ.9.LH PLN-700326X007
...
49
WASHER PLN-851201X004
...
51
SUB= 144964 PLN-132255X479
...
52
KIT.HSG.22RD.PUSH PLN-701997
...
53
SCREW PLN-851084
...
54
LOCKWASHER PLN-850263
...
55
"WASHER,HARDEN" PLN-851074
...
56
SUB= 141114 PLN-134768
...
57
ADAPTOR.BLADE.LM PLN-851514
...
58
SCREW PM PLN-83816
...
59
GRASS BAG PLN-132655
...
60
CATCHER FRAME PLN-133413
...
xx
MANUAL OP GEN PUS PLN-140753
...
xx
MANUAL PTS 4E372B PLN-140937
...
...
...
