Husqvarna 4C472B (1999 & Before) Walk Behind Rotary Mower

Model: 4C472B (1999 & Before)

Save
 Part Not Listed?Part Not Listed?
product name

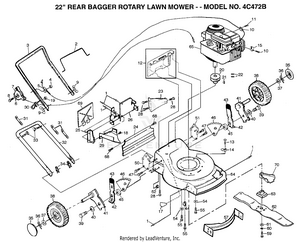

22" REAR BAGGER MOWER

...
...
1
BLIND RIVET PLN-128415
...
2
CONTROL BAR PLN-132570
...
3
SUB= 154480X479 PLN-132670X479
...
4
SUB= 73800400 PLN-63601
...
5
"CABLE,ENG ZONE CO" PLN-130861
...
6
WASHER PM PLN-85723
...
7
CONTROL THROTTLE PLN-851462
...
8
SUB= 74250434 PLN-85692
...
9
"NUT,WING PM" PLN-128638
...
10
SCREW PM PLN-83816
...
11
CABLE CLAMP PLN-213146
...
12
SUB= 91848137 PLN-48137
...
13
TAPPING SCREW PLN-750097
...
14
GUIDE CLIP PM PLN-87930
...
15
"CLIP,CABLE" PLN-850472
...
17
DECAL HYT PLN-107339X
...
18
SCREW PM PLN-86344
...
19
NUT PLN-73510400
...
20
ENGINE.PULLEY.FWG PLN-84596
...
21
HI PRO KEY PM PLN-87677
...
22
SCREW PLN-59708
...
23
REAR BAFFLE PLN-133040X479
...
24
SUB= 140540 PLN-128796
...
25
BAFFLE.SIDE PLN-700365X479
...
26
PLATE.BACK.22RD PLN-700361X479
...
28
SCREW PLN-54583
...
29
DISCHARGE BAFFLE PLN-133190X479
...
30
ROPE GUIDE PLN-132001
...
31
SUB= 7192J PLN-664-26
...
32
SUB= 151721X479 PLN-132813X479
...
33
BOLT.HANDLE.LM PLN-131959
...
34
HAIRPIN COTTER PLN-51793
...
35
HUB CAP PLN-77400
...
36
RETAINER CLIP PM PLN-85179
...
37
WASHER PLN-52160
...
38
SUB= 146247 PLN-800390
...
39
SUB= 142748 PLN-84921
...
40
"WASHER, BELLEVIL." PLN-62335
...
41
AXLE ARM PLN-85021X004
...
42
SPRING SELECTOR PLN-700331X004
...
43
KNOB PM PLN-87877
...
44
DEBRIS SHLD RET PLN-135030
...
45
SUB= 146630 PLN-84920
...
46
SUB= 700326X007 PLN-700376
...
47
SCREW PLN-55187
...
48
SUB= 700327X007 PLN-700377
...
50
SUB= 150956 PLN-700915X505
...
51
SUB= 150956 PLN-700913X505
...
52
LOCKNUT PM PLN-751592
...
54
WASHER PLN-851201X004
...
55
SCREW PLN-850998
...
57
SUB= 144964 PLN-132255X479
...
59
SCREW PLN-851084
...
60
LOCKWASHER PLN-850263
...
61
"WASHER,HARDEN" PLN-851074
...
62
SUB= 141114 PLN-134768
...
63
ADAPTOR.BLADE.LM PLN-851514
...
64
KIT.HSG.22RD.FWGD PLN-701437
...
68
HINGE SCREW PLN-88652
...
69
MULCHER PLATE PLN-133170X479
...
70
SUB= 48283 PLN-134612
...
xx
"MANUAL,OP" PLN-700480
...
xx
MANUAL.P.4C472B PLN-702587

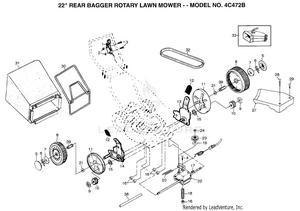

22" REAR BAGGER MOWER

...
...
1
CONTROL.DRIVE PLN-700615
...
2
NUT PLN-74189
...
3
SCREW PLN-750029
...
4
BOLT.1/4-20X2.0 PLN-700875
...
5
HUB CAP PLN-77400
...
6
RETAINER CLIP PM PLN-85179
...
7
WASHER PLN-52160
...
8
WHEEL.8X2.LP.PR PLN-700953
...
9
SUB= 12000058 PLN-12000057
...
10
PINION.GEAR PLN-137054
...
11
DUST SHROUD PM PLN-88080
...
12
KNOB PM PLN-87877
...
13
SUB= 151228 PLN-700339
...
14
SUB= 151226 PLN-700340
...
15
WASHER PM PLN-88118
...
16
SUB= 73800400 PLN-63601
...
17
HI PRO KEY PLN-850848
...
18
SPRING.TENSION PLN-137090
...
19
BEARING PLN-77881
...
20
SPRING PLN-75192
...
21
WASHER FLUT PLN-67725
...
22
SUB= 48367 PLN-702511
...
23
PULLEY.DRIVEN PLN-137052
...
24
LOCKNUT PLN-132010
...
27
"COVER.DRIVE 22""RD" PLN-137081
...
28
SUB= 146072 PLN-87866
...
29
SUB= 149746 PLN-136797
...
30
CATCHER FRAME PLN-133413
...
31
GRASS BAG PLN-132655
...
32
SUB= 157769 PLN-137078
...
38
DRV SHAFT TUBE PM PLN-86012
...
39
BUSHING.HEX PLN-88446
...
xx
NLA PLN-851812

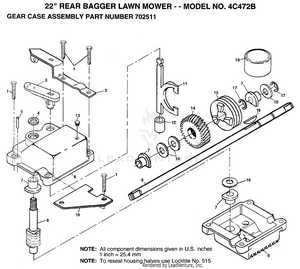

22" REAR BAGGER MOWER

...
...
1
SCREW.1/4-20 PLN-17490416
...
2
SUB= 137055X004 PLN-137055
...
3
SHIFTER PLN-137053
...
4
SEAL PLN-57072
...
5
DRIVE LOK PIN PLN-57388
...
6
GEARCASE KIT PLN-48281
...
7
BEARING PLN-77881
...
8
SHAFT.WORM PLN-137051
...
9
SHAFT.DRIVE PLN-137074
...
10
THRUST WASHER PLN-57079
...
11
CLUTCH YOKE PLN-131484
...
12
BUSHING.GEAR BOX PLN-700343
...
13
PLUG PM PLN-86447
...
14
GEAR.HELICAL PLN-137050
...
15
CLUTCH JAW PLN-750436X
...
16
SUB= 6066J PLN-750355
...
17
RING T PLN-12000003
...
18
HI PRO KEY PLN-850848
...
19
SPRING BRKT PLN-81585X004
...
...
...
