product name

Husqvarna 4232A59 (1999 & Before) Walk Behind Rotary Mower

Model: 4232A59 (1999 & Before)

Save
 Part Not Listed?Part Not Listed?
product name

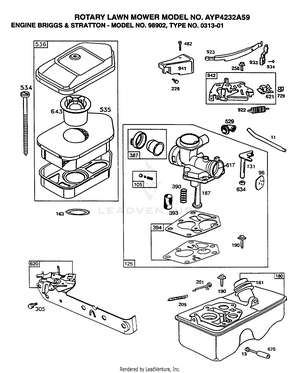

ENGINE/BRIGGS AND STRATTON

...
...
11
TUBE, BREATHER PLN-231774
...
13
SCREW, CYLINDER HEAD PLN-93111
...
96
VALVE THROTTLE PLN-224412
...
105
SEAT, NEEDLE VALVE PLN-494409
...
125
CARBURETOR ASSEMBLY PLN-494407
...
131
SHAFT AND LEVER, THROTTLE PLN-281047
...
163
GASKET, AIR CLEANER PLN-271139
...
180
TANK ASSEMBLY, FUEL PLN-494406
...
181
CAP, FUEL TANK PLN-493982
...
187
PIPE, FUEL PLN-493981
...
190
SCREW, FUEL TANK MOUNTING PLN-93440
...
201
LINK, GOVERNOR PLN-262753
...
209
SPRING, GOVERNOR PLN-262759
...
228
SCREW, HEX HEAD PLN-93490
...
258
SCREW, AIR CLEANER PLN-94018
...
305
SCREW, SEMS, BLOWER HOUSING MNT. PLN-94153
...
387
PRIMER BULB PLN-494408
...
390
SPRING, DIAPHRAGM PLN-262764
...
393
SCREEN, CARBURETOR PLN-262734
...
394
DIAPHRAGM, CARBURETOR PLN-281028
...
482
SCREW, SEMS PLN-93621
...
529
GROMMET, BREATHER TUBE PLN-67838
...
534
SCREW PLN-93865
...
535
ELEMENT, AIR CLEANER PLN-272235
...
536
CLEANER ASSEMBLY, AIR PLN-493492
...
617
SEAL, FUEL INTAKE TUBE PLN-270344
...
620
PLATE, CARBURETOR CONTROL PLN-495486
...
621
SWITCH, STOP PLN-396847
...
634
WASHER, THROTTLE SHAFT PLN-281080
...
643
CUP, AIR CLEANER PLN-280972
...
670
SPACER, FUEL TANK PLN-94038
...
729
CLIP, WIRE PLN-280470
...
922
SPRING, BAND BRAKE PLN-261647
...
923
BRAKE ASSEMBLY, BAND PLN-394867
...
933
PIVOT, BAND BRAKE PLN-223448
...
934
SCREW, BAND BRAKE PIVOT PLN-94037
...
941
COVER, LINKAGE PLN-280395
...
942
BRACKET ASSEMBLY, LEVER PLN-493248

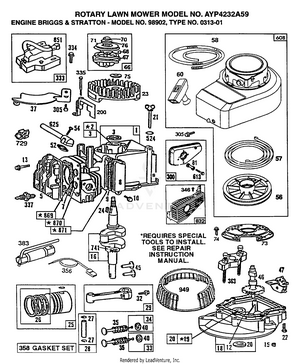

ENGINE/BRIGGS AND STRATTON

...
...
1
CYLINDER ASSEMBLY PLN-399164
...
2
BUSHING, CYLINDER PLN-293708
...
3
SEAL, OIL PLN-299819
...
5
HEAD, CYLINDER PLN-211479
...
7
GASKET, CYLINDER HEAD PLN-272536
...
8
BREATHER, VALVE CHAMBER PLN-495197
...
9
GASKET, VALVE COVER PLN-272602
...
10
SCREW, SEMS, BREATHER, MOUNTING PLN-93394
...
12
GASKET, CRANKCASE, STANDARD .015" PLN-270833
...
xx
GASKET, CRANKCASE .005" PLN-270895
...
xx
GASKET, CRANKCASE .009" PLN-270896
...
13
SCREW, CYLINDER HEAD PLN-93111
...
15
PLUG, OIL DRAIN PLN-94720
...
16
CRANKSHAFT PLN-492086
...
xx
CRANKSHAFT GEAR PIN PLN-230978
...
18
SUMP, ENGINE PLN-395384
...
19
BUSHING, ENGINE SUMP PLN-293709
...
20
SEAL, OIL PLN-391483
...
21
PLUG, OIL FILLER PLN-281081
...
22
SCREW, SEM, MOUNTING PLN-93032
...
23
FLYWHEEL, MAGNETO ROD ASSY, CONNECTING PLN-495046
...
24
KEY, FLYWHEEL PLN-222698
...
25
PISTON ASSEMBLY, STANDARD PLN-298904
...
xx
PISTON ASSEMBLY .010" OVERSIZE PLN-298905
...
xx
PISTON ASSEMBLY .020" OVERSIZE PLN-298906
...
26
RING SET, PISTON, STANDARD PLN-298982
...
xx
RING SET, PISTON, CHROME, STANDARD PLN-299742
...
xx
RING SET, PISTON .010" OVERSIZE PLN-298983
...
xx
RING SET, PISTON .020" OVERSIZE PLN-298984
...
xx
RING SET, PISTON .030" OVERSIZE PLN-298985
...
27
LOCK, PISTON PIN PLN-26026
...
28
PIN ASSY, PISTON, STD PLN-298909
...
xx
PIN ASSEMBLY, PISTON .005" OVERSIZE PLN-298908
...
29
ROD ASSEMBLY, CONNECTING PLN-294201
...
xx
ROD ASSEMBLY, CONNECTING .020" UNDERSIZE CRANKPIN PLN-296079
...
32
SCREW, CONNECTING ROD PLN-94404
...
33
VALVE, EXHAUST PLN-296676
...
34
VALVE, INTAKE PLN-296677
...
35
SPRING, INTAKE VALVE PLN-260552
...
37
GUARD, FLYWHEEL PLN-223150
...
40
RETAINER, VALVE SPRING PLN-93312
...
45
TAPPET, VALVE PLN-230173
...
46
GEAR, CAM PLN-491675
...
47
OIL SLINGER GEAR & BRACKET PLN-491688
...
52
GASKET, INTAKE ELBOW PLN-270345
...
54
SCREW PLN-93485
...
56
PULLEY, STARTER PLN-280439
...
57
SPRING, REWIND STARTER PLN-490179
...
58
ROPE, REWIND STARTER PLN-280406
...
60
HANDLE, REWIND STARTER PLN-393152
...
66
CLUTCH ASSEMBLY, REWIND STARTER PLN-399671
...
67
HOUSING, STARTER CLUTCH PLN-394897
...
68
BALL, CLUTCH PLN-63770
...
70
RATCHET, REWIND STARTER PLN-298799
...
71
WASHER, CLUTCH RETAINER PLN-394506
...
73
SCREEN, REWIND STARTER PLN-221661
...
74
SCREW, SEMS PLN-93758
...
75
WASHER, SPRING PLN-223047
...
76
WASHER, RATCHET SEALING PLN-68238
...
200
BLADE, GOVERNOR PLN-281024
...
300
MUFFLER, EXHAUST PLN-394569
...
305
SCREW, SEMS, BLOWER HOUSING MNT. PLN-94153
...
333
ARMATURE, MAGNETO PLN-398593
...
334
SCREW, SEMS PLN-94731
...
335
SCREW PLN-94732
...
337
PLUG, SPARK PLN-802592
...
356
WIRE, GROUND PLN-398808
...
358
GASKET SET PLN-298989
...
363
PULLEY, FLYWHEEL PLN-19069
...
524
SEAL, FILLER TUBE PLN-271485
...
608
STARTER ASSEMBLY, REWIND PLN-494495
...
625
TUBE, FUEL INTAKE PLN-298775
...
729
CLIP, WIRE PLN-280470
...
741
GEAR, TIMING PLN-261533
...
851
TERMINAL, IGNITION CABLE PLN-221798
...
869
SEAT, INTAKE VALVE, STANDARD PLN-211172
...
870
SEAT, EXHAUST VALVE, STANDARD PLN-211291
...
871
GUIDE, EXHAUST VALVE PLN-231348
...
xx
GUIDE, INTAKE VALVE PLN-63709

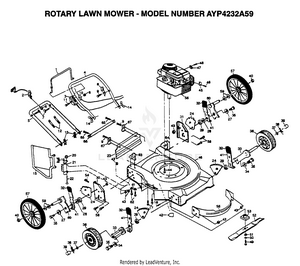

ROTARY LAWN MOWER

...
...
1
CONTROL BAR PM PLN-86902
...
2
ROPER GUIDE PM PLN-103672X
...
3
CONTROL THROTTLE PLN-851462
...
4
SUB= 918133088X479 PLN-133088X479
...
5
SUB= 151516X479 PLN-84676X479
...
6
SUB= 73800400 PLN-63601
...
7
BOLT.HANDLE.LM PLN-131959
...
8
"BRKT,UPSTOP" PLN-850733X004
...
9
TAPPING SCREW PLN-750097
...
10
"CABLE,ENG ZONE CO" PLN-130861
...
11
SCREW.HXHD.WASH. PLN-144929
...
12
SUB= 7192J PLN-664-26
...
13
HAIRPIN COTTER PLN-51793
...
14
"NUT,WING PM" PLN-128638
...
15
SUB= 532851750 PLN-851750
...
16
BLIND RIVET PLN-128415
...
17
SCREW PLN-851856
...
19
"SPRING,TORSION" PLN-851855
...
20
PUSH ON SPEED NUT PLN-83731
...
21
"BRKT,HSG" PLN-851852X004
...
22
"ROD,HINGE " PLN-851854
...
23
SKIRT.REAR.22SD. PLN-140539
...
24
BRKT.WHL.ADJ PLN-750085X007
...
27
WASHER PLN-61651
...
28
WASHER PM PLN-88348
...
29
SUB= 146630 PLN-84920
...
30
BRACKET.SUPT.WHEL PLN-107607X479
...
31
BRACKET.SUPT.WHEL PLN-107609X479
...
32
KNOB PM PLN-87877
...
33
AXLE ARM PLN-85021X004
...
34
"WASHER, BELLEVIL." PLN-62335
...
35
BOLT SHLD 3/8-16 PLN-142748
...
36
WHEEL.ASM PLN-800220
...
37
WASHER PLN-52160
...
38
RETAINER CLIP PM PLN-85179
...
39
HUB CAP-PLASTIC PLN-800090
...
40
HEX FLANGE LOCKNT PLN-83923
...
41
SPRING SELECTOR PLN-700331X004
...
42
DECAL-DANGER PM PLN-85463
...
43
LOCKNUT PM PLN-751592
...
44
SCREW PLN-850998
...
45
CABLE CLAMP PLN-111190X
...
46
HOUSING KIT PLN-135070
...
47
GUIDE CLIP PM PLN-87930
...
48
SCREW PM PLN-83816
...
49
SCREW PLN-851084
...
50
LOCKWASHER PLN-850263
...
51
"WASHER,HARDEN" PLN-851074
...
52
"BLADE.MULCH.22""" PLN-141114
...
53
BLADE ADAPTOR PLN-850977
...
54
SCREW PLN-54583
...
55
BAFFLE.FRT/REAR PLN-700929X479
...
57
WHEEL & TIRE PM PLN-107620X
...
58
SUB= 74780612 PLN-74760612
...
59
WAVE WASHER PLN-57143
...
60
AXLE ARM ASSY R PLN-851119X004
...
61
STEEL WASHER PLN-59289
...
62
SCREW PLN-55187
...
63
SUB= 150959 PLN-701969X479
...
64
SUB= 150959 PLN-701971X479
...
65
SCREW PLN-54583
...
66
ROD.SUPPORT.WB. PLN-107611X
...
67
"BRKT,DEFL PM" PLN-87584X004
...
xx
MANUAL.O.4232A59 PLN-146439
...
...
...
