Husqvarna 409942 (1996) Walk Behind Rotary Mower

Model: 409942 (1996)

Save
 Part Not Listed?Part Not Listed?
product name

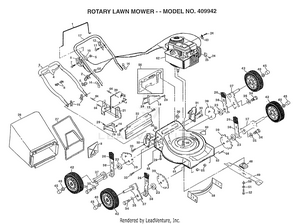

ROTARY LAWN MOWER

...
...
1
CONTROL BAR PM PLN-86902
...
2
ROPE GUIDE PLN-132001
...
3
LOWER HANDLE PLN-151516X479
...
4
BOLT.HANDLE.LM PLN-131959
...
5
SUB= 73800400 PLN-63601
...
6
SUB= 7192J PLN-151517
...
7
SCREW.HXHD.WASH. PLN-144929
...
8
MULCHER PLATE PLN-133169X479
...
9
CONTROL THROTTLE PLN-851462
...
10
"CABLE,ENG ZONE CO" PLN-130861
...
11
TAPPING SCREW PLN-750097
...
12
"BRKT,UPSTOP" PLN-850733X004
...
13
HINGE SCREW PLN-88652
...
14
"NUT,WING PM" PLN-128638
...
15
HAIRPIN COTTER PLN-51793
...
16
SCREW.HXTAP.10-24 PLN-150050
...
17
SUB= 160223X479 PLN-132649X479
...
18
REAR BAFFLE PLN-700063X479
...
19
DISCHARGE GUARD PLN-133188X479
...
20
PLATE.BACK.20RD PLN-700356X479
...
21
BAFFLE.SIDE PLN-700363X479
...
22
SKIRT.PUSH.20RD PLN-140657
...
23
SPACER.HEIGHT.ADJ PLN-146630
...
24
SCREW PM PLN-83816
...
25
CABLE CLAMP PLN-213146
...
26
KNOB PM PLN-87877
...
27
FRAME.CATCHER.2.5 PLN-149555
...
28
GRASSBAG.250B1.BL PLN-149688
...
29
SCREW PLN-54583
...
30
SUB= 73220600 PLN-54178
...
31
BRACKET.HDL.LH. PLN-151589X479
...
32
BRACKET.HDL.RH. PLN-151588X479
...
33
SCREW.HXWS.5/16 PLN-150078
...
34
BOLT.SHLD.W/PATCH PLN-151611
...
35
"WASHER, BELLEVIL." PLN-62335
...
37
ARM.AXLE.ASM.BZP. PLN-145935X004
...
38
SPRING SELECTOR PLN-700331X004
...
39
BRACKET.ADJ.9POS. PLN-700325X007
...
40
HEX FLANGE LOCKNT PLN-83923
...
42
WHL & TIRE PLN-851070
...
45
HUB CAP-PLASTIC PLN-800090
...
46
BOLT.ENG.3/8-16 PLN-150406
...
48
BLADE ADAPTOR PLN-850977
...
49
BLADE.20.MULCH.AY PLN-145106
...
50
"WASHER,HARDEN" PLN-851074
...
51
LOCKWASHER PLN-850263
...
52
SCREW PLN-851084
...
53
HOUSING ASSY PLN-152593
...
56
KIT.DOOR.RR.20STL PLN-147613
...
58
SUB= 144961 PLN-132198X479
...
60
DECAL DANGER E/S PLN-141846
...
63
GUIDE CLIP PM PLN-87930
...
64
BLIND RIVET PLN-128415
...
65
SUB= 73220600 PLN-54178
...
66
NUT PLN-73510400
...
xx
MANUAL.OP.GEN.PUS PLN-145655
...
xx
REPLACEMENT PARTS MANUAL PLN-155893
...
xx
CLIPPING DEFL PLN-MA36
...
...
...
