Husqvarna 3M402A (1995) Walk Behind Rotary Mower

Model: 3M402A (1995)

Save
 Part Not Listed?Part Not Listed?
product name

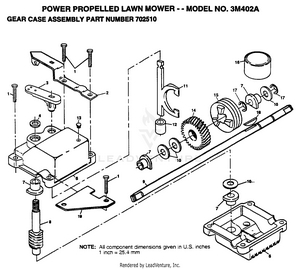

GEAR CASE

...
...
1
SCREW.1/4-20 PLN-17490416
...
2
BRACKET.GEARCASE PLN-137055X004
...
3
SHIFTER PLN-137053
...
4
SEAL PLN-57072
...
6
KIT GEARCASE HALV PLN-48373
...
7
BEARING PLN-77881
...
8
SHAFT.WORM PLN-137051
...
9
SHAFT.DRIVE.SD PLN-137077
...
10
THRUST WASHER PLN-57079
...
11
CLUTCH YOKE PLN-131484
...
12
BUSHING.GEAR BOX PLN-700343
...
13
PLUG PM PLN-86447
...
14
GEAR.HELICAL PLN-137050
...
15
CLUTCH JAW PLN-750436X
...
16
SUB= 6066J PLN-750369
...
17
RING T PLN-12000003
...
18
HI PRO KEY PLN-850848
...
19
SPRING BRKT PLN-81585X004

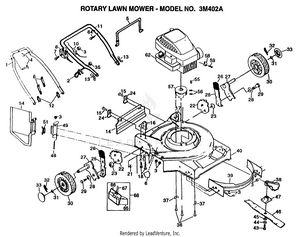

ROTARY LAWN MOWER

...
...
1
SUB= 151516X479 PLN-84676X479
...
2
ROPE GUIDE PLN-132001
...
3
SUB= 73800400 PLN-63601
...
4
BOLT.HANDLE.LM PLN-131959
...
5
CONTROL BAR PLN-851509
...
6
SUB= 7192J PLN-664-26
...
7
SCREW.HXHD.WASH. PLN-144929
...
8
"CONTROL, THROTTLE" PLN-700417
...
10
"CABLE,ENG ZONE CO" PLN-130861
...
11
SUB= 160223X479 PLN-132649X479
...
12
HAIRPIN COTTER PLN-51793
...
13
"NUT,WING PM" PLN-128638
...
14
SKIRT.REAR.FGD.22 PLN-140540
...
15
TAPPING SCREW PLN-750097
...
16
SUB= 150959 PLN-701969X479
...
17
SUB= 150959 PLN-701971X479
...
18
SCREW PLN-55187
...
19
STEEL WASHER PLN-59289
...
21
LOCKNUT PM PLN-751592
...
22
BRACKET.ADJ.9POS. PLN-700325X007
...
23
SUB= 146630 PLN-84920
...
24
"BRKT,DEFL PM" PLN-87584X004
...
25
SPRING SELECTOR PLN-700331X004
...
26
KNOB PM PLN-87877
...
27
AXLE ARM PLN-85021X004
...
28
"WASHER, BELLEVIL." PLN-62335
...
29
BOLT SHLD 3/8-16 PLN-142748
...
30
WHEEL.8X2.PR.RAD. PLN-146247
...
31
WASHER PLN-52160
...
32
RETAINER CLIP PM PLN-85179
...
33
HUB CAP PLN-77400
...
35
NUT PLN-73510400
...
36
SCREW PLN-850998
...
37
WASHER PLN-851201X004
...
38
SUB= 48283 PLN-134612
...
39
BAFFLE FRONT 22SD PLN-132352X479
...
40
KIT.HSG.22SD.FWGD PLN-147827
...
43
"WASHER,HARDEN" PLN-851074
...
46
"BLADE.MULCH.22""" PLN-141114
...
47
ADAPTOR.BLADE.LM PLN-851514
...
48
ROD.HINGE.COMBI-C PLN-147286
...
49
BRACKET.HINGE.W/F PLN-147775
...
51
SUB= 152186 PLN-145286
...
54
GUARD.DISCH.22SD. PLN-145282
...
55
HI PRO KEY PM PLN-87677
...
56
SCREW PLN-59708
...
57
ENGINE.PULLEY.FWG PLN-84596
...
58
CABLE CLAMP PLN-213146
...
59
SCREW PM PLN-83816
...
61
DECAL HYT PLN-107339X
...
64
"SCREW,PAN HD" PLN-851552
...
65
SUB= 150117 PLN-146345
...
66
BAIL.PLUG.MUL.22. PLN-146365
...
67
SUB= 146343X004 PLN-146343X479
...
68
SUB= 150577 PLN-148099
...
xx
"BAFFLE,REAR" PLN-83976X479
...
xx
MANUAL.GEN.SP.E. PLN-145658
...
xx
MANUAL.RPL.3M402A PLN-149297
...
xx
SUB= GCK3200A PLN-GCK 2200

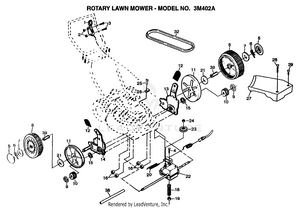

ROTARY LAWN MOWER

...
...
1
CONTROL.DRIVE PLN-137076
...
2
LOCKNUT PLN-69180
...
3
SCREW PLN-750029
...
4
BOLT.1/4-20X2.0 PLN-700875
...
5
HUB CAP PLN-77400
...
6
RETAINER CLIP PM PLN-85179
...
7
WASHER PLN-52160
...
8
WHEEL.8X2.LP.PR PLN-700953
...
9
E-RING.7/16.RE. PLN-12000058
...
10
PINION.GEAR PLN-137054
...
11
DUST SHROUD PM PLN-88080
...
12
KNOB PM PLN-87877
...
13
SUB= 151228 PLN-148484
...
14
SUB= 151226 PLN-148485
...
15
WASHER PM PLN-88118
...
16
SUB= 73800400 PLN-63601
...
18
SPRING.TENSION PLN-137090
...
19
SUB= 73800400 PLN-63601
...
20
SPRING PLN-75192
...
21
WASHER FLUT PLN-67725
...
22
SUB= 48366 PLN-702510
...
23
PULLEY.DRIVEN PLN-137052
...
24
LOCKNUT PLN-132010
...
25
TAPPING SCREW PLN-750097
...
26
GUIDE CLIP PM PLN-87930
...
27
COVER DRIVE BLK PLN-137080
...
28
SUB= 146072 PLN-87866
...
29
SUB= 149746 PLN-136797
...
32
SUB= 157769 PLN-137078
...
38
DRV SHAFT TUBE PM PLN-86012
...
39
BUSHING.HEX PLN-88446
...
...
...
