Husqvarna 3H402A (1999 & Before) Walk Behind Rotary Mower

Model: 3H402A (1999 & Before)

Save
 Part Not Listed?Part Not Listed?
product name

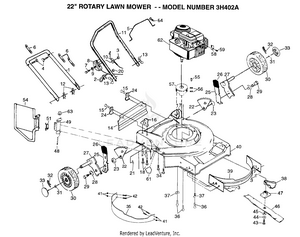

22" ROTARY LAWN MOWER

...
...
1
SUB= 151721X479 PLN-132813X479
...
2
ROPE GUIDE PLN-132001
...
3
SUB= 73800400 PLN-63601
...
4
BOLT.HANDLE.LM PLN-131959
...
5
CONTROL BAR PLN-132570
...
6
SUB= 7192J PLN-664-26
...
7
SUB= 144929 PLN-86055
...
8
"CONTROL, THROTTLE" PLN-700417
...
9
WASHER PM PLN-85723
...
10
"CABLE,ENG ZONE CO" PLN-130861
...
11
SUB= 154480X479 PLN-132670X479
...
12
HAIRPIN COTTER PLN-51793
...
13
"NUT,WING PM" PLN-128638
...
14
SUB= 140540 PLN-128797
...
15
TAPPING SCREW PLN-750097
...
16
SUB= 150959 PLN-701969X505
...
17
SUB= 150959 PLN-701971X505
...
18
SCREW PLN-55187
...
19
STEEL WASHER PLN-59289
...
20
NUT PLN-73510400
...
21
LOCKNUT PM PLN-751592
...
22
SUB= 700325X007 PLN-700375
...
23
SUB= 146630 PLN-84920
...
24
"BRKT,DEFL PM" PLN-87584X004
...
25
SPRING SELECTOR PLN-700331X004
...
26
KNOB PM PLN-87877
...
27
AXLE ARM PLN-85021X004
...
28
"WASHER, BELLEVIL." PLN-62335
...
29
SUB= 142748 PLN-84921
...
30
SUB= 146247 PLN-800390
...
31
WASHER PLN-52160
...
32
RETAINER CLIP PM PLN-85179
...
33
HUB CAP PLN-77400
...
34
SCREW PLN-851856
...
35
BAFFLE.MULCH.22SD PLN-82432X479
...
36
SCREW PLN-850998
...
37
WASHER PLN-851201X004
...
38
DEBRIS SHIELD PLN-134912
...
39
BAFFLE FRONT 22SD PLN-132352X479
...
40
SUB= 702527 PLN-701767
...
41
LOCKNUT PLN-69180
...
42
SCREW WS PLN-74961008
...
43
SCREW PLN-851084
...
44
LOCKWASHER PLN-850263
...
45
"WASHER,HARDEN" PLN-851074
...
46
SUB= 141114 PLN-134768
...
47
ADAPTOR.BLADE.LM PLN-851514
...
48
"ROD,HINGE " PLN-851854
...
49
"BRKT,HSG" PLN-851852X004
...
51
"SPRING,TORSION" PLN-851855
...
54
SUB= 532851750 PLN-851750
...
55
HI PRO KEY PM PLN-87677
...
56
SCREW PLN-59708
...
57
ENGINE.PULLEY.FWG PLN-84596
...
58
CABLE CLAMP PLN-213146
...
59
SCREW PM PLN-83816
...
61
DECAL-DANGER PM PLN-85463
...
63
PUSH ON SPEED NUT PLN-83731
...
64
"SCREW,PAN HD" PLN-851552
...
xx
"BAFFLE,REAR" PLN-83976X479
...
xx
"MANUAL,OP" PLN-700480
...
xx
NLA PLN-702166

22" ROTARY LAWN MOWER

...
...
1
NUT PLN-74189
...
2
CONTROL.DRIVE PLN-700615
...
3
SCREW PLN-750029
...
4
SUB= 7192J PLN-664-26
...
5
TAPPING SCREW PLN-750097
...
6
GUIDE CLIP PM PLN-87930
...
7
SUB= 157769 PLN-137078
...
8
BOLT.1/4-20X2.0 PLN-700875
...
9
WASHER PM PLN-88118
...
10
WASHER FLUT PLN-67725
...
11
SUB= 151226 PLN-700340
...
12
SUB= 151228 PLN-700339
...
13
KNOB PM PLN-87877
...
14
DUST SHROUD PM PLN-88080
...
15
PINION.GEAR PLN-137054
...
16
SUB= 12000058 PLN-12000057
...
17
WHEEL.8X2.LP.PR PLN-700953
...
18
BUSHING.ROUND PLN-86960
...
19
WASHER PLN-52160
...
20
RETAINER CLIP PM PLN-85179
...
21
HUB CAP PLN-77400
...
22
DRV SHAFT TUBE PM PLN-86012
...
23
SUB= 48366 PLN-702510
...
24
HI PRO KEY PLN-850848
...
25
SUB= 73800400 PLN-63601
...
26
SPRING.TENSION PLN-137090
...
27
SPRING PLN-75192
...
28
BEARING PLN-77881
...
29
PULLEY.DRIVEN PLN-137052
...
30
LOCKNUT PLN-132010
...
33
COVER DRIVE BLK PLN-137080
...
34
SUB= 146072 PLN-87866
...
35
SUB= 149746 PLN-136797
...
xx
NLA PLN-851812

GEAR CASE

...
...
1
SCREW.1/4-20 PLN-17490416
...
2
SUB= 137055X004 PLN-137055
...
3
SHIFTER PLN-137053
...
4
SEAL PLN-57072
...
5
DRIVE LOK PIN PLN-57388
...
6
GEARCASE KIT PLN-48281
...
7
BEARING PLN-77881
...
8
SHAFT.WORM PLN-137051
...
9
SHAFT.DRIVE.SD PLN-137077
...
10
THRUST WASHER PLN-57079
...
11
CLUTCH YOKE PLN-131484
...
12
BUSHING.GEAR BOX PLN-700343
...
13
PLUG PM PLN-86447
...
14
GEAR.HELICAL PLN-137050
...
15
CLUTCH JAW PLN-750436X
...
16
SUB= 6066J PLN-750355
...
17
RING T PLN-12000003
...
18
HI PRO KEY PLN-850848
...
19
SPRING BRKT PLN-81585X004
...
...
...
