product name

Husqvarna 3H302D (1995) Walk Behind Rotary Mower

Model: 3H302D (1995)

Save
 Part Not Listed?Part Not Listed?
product name

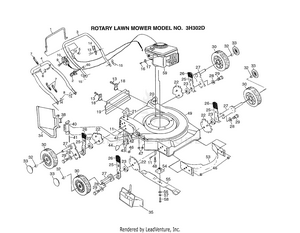

ROTARY LAWN MOWER

...
...
1
CONTROL BAR PLN-131696
...
2
ROPE GUIDE PLN-132001
...
3
SUB= 154480X479 PLN-131697X479
...
4
SUB= 151721X479 PLN-132813X479
...
5
SUB= 73800400 PLN-63601
...
6
BOLT.HANDLE.LM PLN-131959
...
7
SUB= 7192J PLN-664-26
...
8
HAIRPIN COTTER PLN-51793
...
9
SCREW.HXHD.WASH. PLN-144929
...
10
"CONTROL, THROTTLE" PLN-700417
...
11
BLIND RIVET PLN-128415
...
12
"CABLE,ENG ZONE CO" PLN-130861
...
13
TAPPING SCREW PLN-750097
...
14
"BRKT,UPSTOP" PLN-850733X004
...
15
"NUT,WING PM" PLN-128638
...
16
SCREW PM PLN-83816
...
17
CABLE CLAMP PLN-213146
...
18
"BRKT,DEFL PM" PLN-87584X004
...
19
SKIRT.REAR.FGD.22 PLN-140540
...
20
SUB= 150959 PLN-701971X479
...
21
SUB= 150959 PLN-701969X479
...
22
BRACKET.ADJ.9POS. PLN-700325X007
...
23
SUB= 146630 PLN-84920
...
25
SPRING SELECTOR PLN-700331X004
...
26
KNOB PM PLN-87877
...
27
ARM.AXLE.ASM.BZP. PLN-145935X004
...
28
"WASHER, BELLEVIL." PLN-62335
...
29
BOLT SHLD 3/8-16 PLN-142748
...
30
WHEEL.8X1.75.WHT PLN-148438
...
32
HEX FLANGE LOCKNT PLN-83923
...
33
HUB CAP PLN-77400
...
34
GUARD.DISCH.22SD. PLN-145282
...
35
PLUG.MULCHING.ASM PLN-148100
...
36
SCREW WS PLN-74961008
...
37
LOCKNUT PLN-69180
...
38
SUB= 152186 PLN-145286
...
40
BRACKET.HINGE.W/F PLN-147775
...
41
ROD.HINGE.COMBI-C PLN-147286
...
42
STEEL WASHER PLN-59289
...
43
SCREW PLN-55187
...
44
DECAL HYT PLN-107339X
...
46
LOCKNUT PM PLN-751592
...
47
SUB= 73800400 PLN-63601
...
48
SCREW PLN-850998
...
49
KIT.HSG.22SD.PUSH PLN-702208
...
53
BAFFLE.FRT/REAR PLN-700929X479
...
54
BLADE ADAPTOR PLN-850977
...
55
"BLADE.MULCH.22""" PLN-141114
...
56
"WASHER,HARDEN" PLN-851074
...
67
LOCKWASHER PLN-850263
...
58
SCREW PLN-851084
...
60
NUT PLN-73510400
...
xx
MANUAL.OP.GEN.PUS PLN-145655
...
xx
MANUAL.3H302D.PT. PLN-149664
...
xx
SUB= GCK3200A PLN-GCK 2200
...
...
...
