product name

Husqvarna 3H302B (1999 & Before) Walk Behind Rotary Mower

Model: 3H302B (1999 & Before)

Save
 Part Not Listed?Part Not Listed?
product name

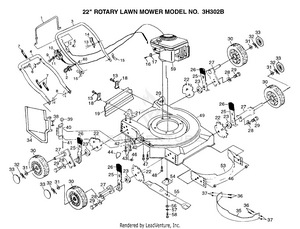

22" ROTARY MOWER

...
...
1
CONTROL BAR PLN-131696
...
2
ROPE GUIDE PLN-132001
...
3
SUB= 154480X479 PLN-131697X479
...
4
SUB= 151721X479 PLN-132813X479
...
5
SUB= 73800400 PLN-63601
...
6
BOLT.HANDLE.LM PLN-131959
...
7
SUB= 7192J PLN-664-26
...
8
HAIRPIN COTTER PLN-51793
...
9
SUB= 144929 PLN-86055
...
10
"CONTROL, THROTTLE" PLN-700417
...
11
WASHER PM PLN-85723
...
12
"CABLE,ENG ZONE CO" PLN-130861
...
13
TAPPING SCREW PLN-750097
...
14
"BRKT,UPSTOP" PLN-850733X004
...
15
"NUT,WING PM" PLN-128638
...
16
SCREW PM PLN-83816
...
17
CABLE CLAMP PLN-213146
...
18
"BRKT,DEFL PM" PLN-87584X004
...
19
SUB= 140540 PLN-128797
...
20
SUB= 150959 PLN-701971X479
...
21
SUB= 150959 PLN-701969X479
...
22
BRACKET.ADJ.9POS. PLN-700325X007
...
23
SUB= 146630 PLN-84920
...
25
SPRING SELECTOR PLN-700331X004
...
26
KNOB PM PLN-87877
...
27
AXLE ARM PLN-85021X004
...
28
"WASHER, BELLEVIL." PLN-62335
...
29
SUB= 142748 PLN-84921
...
30
SUB= 146247 PLN-800390
...
31
WASHER PLN-52160
...
32
RETAINER CLIP PM PLN-85179
...
33
HUB CAP PLN-77400
...
34
SUB= 532851750 PLN-851750
...
35
BAFFLE.MULCH.22SD PLN-700930X479
...
36
SCREW WS PLN-74961008
...
37
LOCKNUT PLN-69180
...
38
"SPRING,TORSION" PLN-851855
...
39
PUSH ON SPEED NUT PLN-83731
...
40
"BRKT,HSG" PLN-851852X004
...
41
"ROD,HINGE " PLN-851854
...
42
STEEL WASHER PLN-59289
...
43
SCREW PLN-55187
...
44
DECAL HYT PLN-107339X
...
46
LOCKNUT PM PLN-751592
...
47
SCREW PLN-851856
...
48
SCREW PLN-850998
...
49
KIT.HSG.22SD.PUSH PLN-702208
...
53
BAFFLE.FRT/REAR PLN-700929X479
...
54
BLADE ADAPTOR PLN-850977
...
55
SUB= 141114 PLN-134768
...
56
"WASHER,HARDEN" PLN-851074
...
57
LOCKWASHER PLN-850263
...
58
SCREW PLN-851084
...
60
NUT PLN-73510400
...
xx
MANUAL OP GEN PUS PLN-140753
...
xx
MANUAL PARTS ENG PLN-140888
...
...
...
