Husqvarna 3B (1999 & Before) Walk Behind Rotary Mower

Model: 3B (1999 & Before)

Save
 Part Not Listed?Part Not Listed?
product name

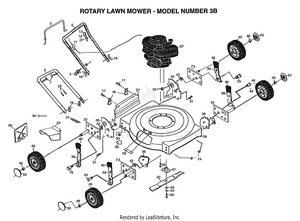

ROTARY LAWN MOWER

...
...
1
SUB= 73800400 PLN-63601
...
2
CONTROL BAR PM PLN-86902
...
3
ROPE GUIDE PLN-132001
...
4
UPPER HANDLE PLN-160834X479
...
5
LOWER HANDLE PLN-160609X479
...
7
BOLT.HANDLE.LM PLN-131959
...
11
"CONTROL-ZONE,ENG" PLN-153892
...
12
TAPPING SCREW PLN-750097
...
13
"BRKT,UPSTOP" PLN-850733X004
...
16
"NUT,WING PM" PLN-128638
...
19
HAIRPIN COTTER PLN-51793
...
21
"SKIRT.REAR.22SD/ECON.21""" PLN-165858
...
22
SUB= 7192J PLN-664-26
...
23
GUARD.DISCHARGE PLN-160831
...
27
HINGE.SPRING PLN-160832
...
30
HINGE.ROD.22SD PLN-160833
...
33
LOCKNUT PLN-751153
...
34
BRKT.HDLE/ADJ.LT PLN-168164X479
...
35
BRKT.HDLE/ADJ.RT PLN-168165X479
...
36
WHEEL.BRKT.ADJ. PLN-160835X007
...
39
SPRING.SELECTOR.5/9POS PLN-168360X004
...
40
KNOB PM PLN-87877
...
43
WASHER.BELLEVELLE PLN-19112222
...
44
SHOULDER BOLT PLN-160828
...
45
WHEEL.8X1.75.WHT PLN-148438
...
46
HEX FLANGE LOCKNT PLN-83923
...
50
HUB CAP PLN-77400
...
51
SCREW 1/4X20 PLN-17600406
...
52
BOLT.ENG.3/8-16 PLN-150406
...
55
DECAL HYT PLN-107339X
...
59
LAWNMOWER HOUSING ASSY PLN-165187
...
61
ADAPTOR.BLADE.LM PLN-851514
...
62
"BLADE.MULCH.22""" PLN-141114
...
63
"WASHER,HARDEN" PLN-851074
...
64
LOCKWASHER PLN-850263
...
65
SCREW PLN-851084
...
67
CHECK WITH SUPPLIER PLN-SUPPLIER
...
72
ARM.ASM.AXLE.RR/LF. PLN-167132X004
...
73
ARM.ASM.AXLE.LR/RF PLN-167133X004
...
74
LOCKNUT PLN-751153
...
76
CLIP.CLOSECUT.22SD PLN-161622
...
77
TAPPING SCREW PLN-750097
...
78
"BRKT,DEFL PM" PLN-87584X004
...
79
SHOULDER BOLT PLN-160828
...
80
MULCHER PLATE PLN-160830
...
xx
DECAL.WARNING PLN-162300
...
xx
MANUAL.GEN.PUSH PLN-161116
...
xx
REPLACEMENT PARTS MANUAL PLN-168740
...
xx
GRASS CATCHER KIT PLN-GCK3300
...
...
...
