product name

Husqvarna 38807/388070 (2006) Walk Behind Rotary Mower

Model: 38807/388070 (2006)

Save
 Part Not Listed?Part Not Listed?
product name

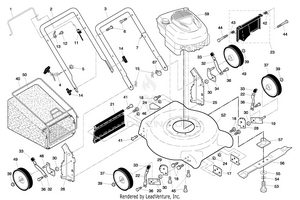

Handle & Deck Assembly

...
...
1
Control Bar PLN-194177X428
...
2
Upper Handle PLN-194179X479
...
3
Lower Handle PLN-169708X479
...
4
Rope Guide PLN-194788
...
5
Nut, Hex 1/4-20 PLN-132004
...
6
Handle Bolt PLN-191574
...
7
Wire Tie PLN-664-26
...
11
Engine Zone Control Cable PLN-183281
...
12
Screw, Threaded, Rolled #10-24 x 1/2 PLN-750634
...
13
Up-Stop Bracket PLN-86899X004
...
14
Handle Knob PLN-189713X428
...
15
Hairpin Cotter PLN-51793
...
17
Support Bracket PLN-165946X479
...
18
Screw 1/4-20 x 3/8 PLN-17600406
...
19
Axle Arm Assembly, Front, LH PLN-186577X004
...
20
Axle Arm Assembly, Front, RH PLN-186578X004
...
21
Rear Skirt PLN-188987
...
22
Selector Spring, Front PLN-168360X004
...
23
Kit, Rear Door (Includes Springs) PLN-186612
...
24
Locknut, Hex 5/16-18 PLN-73930500
...
25
Handle Bracket Assembly, LH PLN-166111X479
...
26
Handle Bracket Assembly, RH PLN-166112X479
...
28
Wheel Adjusting Bracket, Front, LH PLN-196664X007
...
29
Wheel Adjusting Bracket, Front, RH PLN-196663X007
...
30
Spacer PLN-183901
...
32
Selector Spring, Rear PLN-169421X004
...
33
Selector Knob PLN-87877
...
34
Axle Arm Assembly, Rear, LH PLN-186576X004
...
36
Shoulder Bolt 5/16-18 PLN-160828
...
37
Wheel & Tire Assembly, Front PLN-193855X617
...
39
Nut, Hex, Flangelock 3/8-16 PLN-83923
...
40
Frame, Grassbag PLN-194642
...
41
Hinge Screw PLN-88652
...
42
Spring, Rear Door, LH PLN-165766
...
43
Spring, Rear Door, RH PLN-165767
...
44
Bolt, Rear Door PLN-184193
...
45
Screw, Hex Head, Threaded, Rolled 3/8-16 x 1 PLN-150406
...
46
Danger Decal PLN-404763
...
48
Axle Arm Assembly, Rear, RH PLN-186575X004
...
49
Wheel & Tire Assembly, Rear PLN-193851X615
...
50
Grassbag PLN-401737
...
52
Kit, Lawn Mower Housing (Includes Key Numbers 17, 18 and 46) PLN-185425
...
53
Screw, Hex Head, Grade 8, 3/8-24 x 1-3/8 PLN-851084
...
54
Helical Lockwasher PLN-850263
...
55
Hardened Washer PLN-851074
...
56
21" Blade PLN-189028
...
57
Blade Adapter PLN-193707
...
67
Clip, Cable PLN-197991
...
xx
Warning Decal (not shown) PLN-404764
...
xx
Operator's Manual, English PLN-193732
...
xx
Operator's Manual, Spanish PLN-193735
...
xx
Repair Parts Manual PLN-405300
...
...
...
