Husqvarna 386090 (2005) Walk Behind Rotary Mower

Model: 386090 (2005)

Save
 Part Not Listed?Part Not Listed?
product name

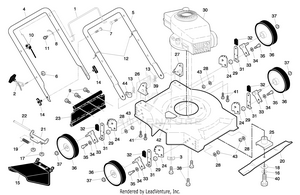

Rotary Lawn Mower

...
...
1
Control Bar PLN-194176X428
...
2
Rope Guide PLN-189585
...
3
Washer, Engine, Zinc Plated PLN-851201X004
...
4
Upper Handle PLN-194180X479
...
5
Lower Handle PLN-151590X479
...
6
Nut, Hex 1/4-20 PLN-132004
...
7
Bolt, Handle 5/16-18 x 1-3/4 PLN-191574
...
8
Up-Stop Bracket PLN-850733X004
...
9
Screw, Hex Washer Head #10-24 x 1/2 PLN-189241
...
10
Cable, Operator Presence PLN-164322
...
11
Screw PLN-750634
...
12
Wire Tie PLN-664-26
...
13
Hairpin Cotter PLN-51793
...
14
Knob, Handle PLN-189713X428
...
15
Discharge Guard PLN-752052
...
16
Washer, Lock, Helical Spring 3/8 PLN-850263
...
17
Locknut, Hex 1/4-20 PLN-73800400
...
18
Washer, Hardened PLN-851074
...
19
Spring, Torsion PLN-851855
...
20
Blade, 20" PLN-145106
...
21
Hinge Bracket PLN-88602
...
22
Hinge Rod PLN-150215
...
23
Rear Skirt PLN-189240
...
24
Bracket, Wheel Height Adjustment PLN-750085X007
...
25
Blade Adapter PLN-850977
...
26
Handle Bracket Assembly, RH PLN-170345X479
...
27
Handle Bracket Assembly, LH PLN-170346X479
...
28
Washer PLN-61537
...
29
Spacer PLN-146630
...
31
Selector Spring PLN-700331X004
...
32
Selector Knob PLN-87877
...
33
Axle Arm Assembly PLN-145935X479
...
34
Washer, Belleville PLN-62335
...
35
Bolt, Shoulder PLN-142748
...
36
Wheel & Tire Assembly PLN-193850X427
...
37
Nut, Hex PLN-83923
...
38
Screw, Hex Head, Threaded, Rolled 3/8-16 x 3/4 PLN-150406
...
39
Housing Assembly PLN-194952
...
40
Screw, Hex Head, Grade 8, 3/8-24 x 1-3/8 PLN-851084
...
41
Screw, Thread Cutting 5/16-18 x 3/4 PLN-149741
...
42
Decal, Danger PLN-85463
...
43
Locknut, Hex 3/8-16 PLN-751592
...
44
Clip, Cable PLN-192770
...
xx
Decal, Warning (not shown) PLN-161058
...
xx
Operator's Manual, English PLN-193732
...
xx
Operator's Manual, Spanish PLN-193735
...
xx
Repair Parts Manual, English PLN-193848
...
...
...
