Husqvarna 2P659A (1999 & Before) Walk Behind Rotary Mower

Model: 2P659A (1999 & Before)

Save
 Part Not Listed?Part Not Listed?
product name

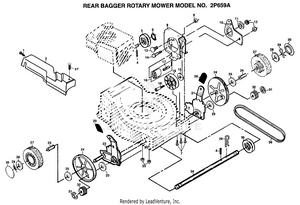

REAR BAGGER MOWER

...
...
1
SCREW HXHD 10-24 PLN-141912
...
2
COVER.DRV.B&S.20 PLN-701459
...
4
DRIVE PAWL PLN-851980
...
5
PULLEY PM PLN-88043
...
6
RETAINING RING ST PLN-12000030
...
7
SCREW PLN-54583
...
8
"CLUTCH,FRAME" PLN-851947X004
...
9
LOCKNUT PLN-50962
...
10
LEVER.CLUTCH PLN-702631X004
...
11
SPACER PM PLN-88067
...
12
LOCKNUT PLN-750253
...
13
CARRIAGE BOLT PLN-72070504
...
14
BOLT 1/4-20-1 1/2 PLN-74350424
...
15
SPACER PM PLN-88069
...
16
IDLER ASSY PLN-48160
...
17
IDLER SPACER PLN-88576
...
18
SHOULDER BOLT PLN-88517
...
19
IDLER PULLEY PLN-88516
...
20
KNOB PM PLN-87877
...
21
SUB= 151207 PLN-148758
...
22
SUB= 151206 PLN-148759
...
23
WASHER PM PLN-88118
...
24
DUST SHROUD PM PLN-88080
...
25
WASHER FLUT PLN-67725
...
26
BUSHING.HEX PLN-88446
...
27
WHEEL &TIRE ASSY PLN-850690
...
28
WASHER PLN-52160
...
29
RETAINER CLIP PM PLN-85179
...
30
HUB CAP PLN-77400
...
31
E-RING.7/16.RE. PLN-12000058
...
32
PINION.GEAR PLN-137054
...
33
SUB= 73800400 PLN-63601
...
34
SHAFT.DRIVE.17.81 PLN-700537
...
35
DRIVE PULLEY PM PLN-88082
...
36
SUB= TH3H340 PLN-111924X
...
xx
"DECAL,CLEAN UNDER" PLN-852000
...
37
FASTNER PUSH DRCV PLN-701477
...
xx
CLIPPING DEFL PLN-MA36
...
xx
"KIT, MULCHER 20""" PLN-MK20FRD

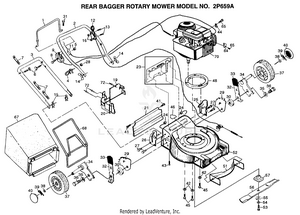

REAR BAGGER MOWER

...
...
1
CONTROL BAR PLN-132570
...
2
SUB= 154480X479 PLN-132670X479
...
3
SUB= 151590X479 PLN-134081X479
...
4
ROPE GUIDE PLN-132001
...
5
SUB= 73800400 PLN-63601
...
6
BOLT.HANDLE.LM PLN-131959
...
7
SUB= 7192J PLN-664-26
...
8
SCREW.HXHD.WASH. PLN-144929
...
9
CONTROL THROTTLE PLN-851462
...
11
"CABLE,ENG ZONE CO" PLN-130861
...
12
CONTROL DRV 20 FB PLN-702734
...
13
SCREW PLN-750029
...
14
"NUT,WING PM" PLN-128638
...
15
HAIRPIN COTTER PLN-51793
...
16
LOCKNUT PLN-69180
...
19
PLATE.BACK.20RD PLN-700356X479
...
20
BAFFLE.SIDE PLN-700363X479
...
21
SKIRT.PUSH.20RD PLN-140657
...
23
KIT.DOOR.RR.20STL PLN-147613
...
24
LOCKNUT PM PLN-751592
...
25
SUB= 150956 PLN-700913X479
...
26
SUB= 150956 PLN-700915X479
...
27
SCREW PLN-55187
...
28
NUT PLN-73510400
...
29
BRKT.WHL.ADJ PLN-750085X007
...
30
SUB= 146630 PLN-84920
...
31
"SCREW,PAN HD" PLN-851552
...
32
SPRING SELECTOR PLN-700331X004
...
33
KNOB PM PLN-87877
...
34
AXLE ARM PLN-85021X004
...
35
"WASHER, BELLEVIL." PLN-62335
...
36
BOLT SHLD 3/8-16 PLN-142748
...
37
WHEEL.8X1.75.WHT PLN-148440
...
38
WASHER PLN-52160
...
39
RETAINER CLIP PM PLN-85179
...
40
HUB CAP PLN-77400
...
41
HINGE SCREW PLN-88652
...
42
SUB= 19131216 PLN-53998
...
43
SCREW PLN-54583
...
44
GUIDE CLIP PM PLN-87930
...
45
SCREW PLN-850999
...
46
DECAL HYT PLN-107339X
...
48
ENGINE SPACER PLN-850988
...
51
SUB= 144961 PLN-132198X479
...
52
KIT.HSG.20RD.FWBD PLN-147806
...
53
SCREW PLN-851084
...
54
LOCKWASHER PLN-850263
...
55
"WASHER,HARDEN" PLN-851074
...
56
BLADE.20.MULCH.AY PLN-145106
...
57
ADAPTOR.BLADE.LM PLN-851514
...
64
CABLE CLAMP PLN-213146
...
65
SCREW PM PLN-83816
...
67
GRASS BAG PLN-133266
...
68
FRAME.CATCHER.ASM PLN-750532
...
72
BLIND RIVET PLN-128415
...
xx
MANUAL.GEN.SP.E. PLN-145658
...
xx
MAN.RP.PTS.2P659A PLN-147803
...
xx
HOUSING DECAL PLN-133414
...
xx
CLIPPING DEFL PLN-MA36
...
xx
"KIT, MULCHER 20""" PLN-MK20FRD
...
...
...
