Husqvarna 2N151B (1995) Walk Behind Rotary Mower

Model: 2N151B (1995)

Save
 Part Not Listed?Part Not Listed?
product name

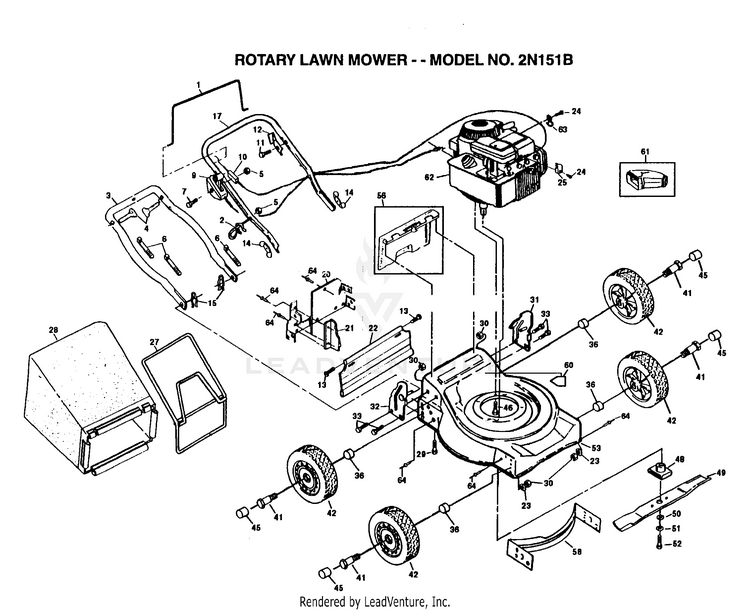

ROTARY LAWN MOWER

...
...
1
CONTROL BAR PM PLN-86902
...
2
ROPE GUIDE PLN-132001
...
3
SUB= 151516X479 PLN-84676X479
...
4
BOLT.HANDLE.LM PLN-131959
...
5
SUB= 73800400 PLN-63601
...
6
SUB= 7192J PLN-664-26
...
7
SCREW.HXHD.WASH. PLN-144929
...
9
CONTROL THROTTLE PLN-851462
...
10
"CABLE,ENG ZONE CO" PLN-130861
...
11
TAPPING SCREW PLN-750097
...
12
"BRKT,UPSTOP" PLN-850733X004
...
13
HINGE SCREW PLN-88652
...
14
"NUT,WING PM" PLN-128638
...
15
HAIRPIN COTTER PLN-51793
...
17
SUB= 160223X479 PLN-132649X479
...
20
PLATE.BACK.20RD PLN-700356X479
...
21
BAFFLE.SIDE PLN-700363X479
...
22
SKIRT.REAR.20RD. PLN-140541
...
23
WASHER PM PLN-74316
...
24
SCREW PM PLN-83816
...
25
CABLE CLAMP PLN-213146
...
27
FRAME.CATCHER.ASM PLN-750532
...
28
GRASS BAG PLN-133266
...
29
SCREW PLN-54583
...
30
LOCKNUT PM PLN-751592
...
31
SUB= 150956 PLN-700913X505
...
32
SUB= 150956 PLN-700915X505
...
36
SUB= 532136624 PLN-136624
...
41
AXLE BOLT PLN-67609
...
42
WHEEL.ASM PLN-800220
...
45
HUB CAP-PLASTIC PLN-800090
...
46
SCREW PLN-850998
...
48
BLADE ADAPTOR PLN-850977
...
49
BLADE.20.MULCH.AY PLN-145106
...
50
WASHER (HARDENED) PLN-751074
...
51
LOCKWASHER PLN-850263
...
52
SCREW PLN-851084
...
53
SUB= 163765 PLN-147768
...
56
KIT.DOOR.RR.20STL PLN-147613
...
58
SUB= 144961 PLN-132198X479
...
60
DECAL HYT PLN-107339X
...
63
GUIDE CLIP PM PLN-87930
...
64
BLIND RIVET PLN-128415
...
xx
MANUAL.OP.GEN.RTA PLN-145653
...
xx
MANUAL.P.2N151B PLN-147769
...
xx
REAR BAFFLE PLN-700063X479
...
...
...
