product name

Husqvarna 2D772B (1999 & Before) Walk Behind Rotary Mower

Model: 2D772B (1999 & Before)

Save
 Part Not Listed?Part Not Listed?
product name

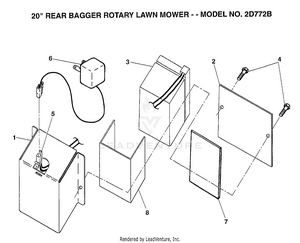

20" REAR BAGGER ROTARY LAWN MOWER

...
...
1
BRACKET.BATTERY PLN-86334X479
...
2
COVER.BATTERY PLN-86337X479
...
3
SUB= 48374 PLN-750909
...
4
SCREW SELF TAP PLN-36953
...
5
CONNECTOR PM PLN-86353
...
6
CHARGER PM PLN-111549X
...
7
"PAD PM, BATTERY" PLN-86649
...
8
"WRAP, BATTERY" PLN-134861

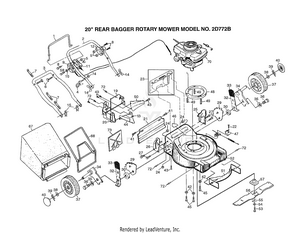

20" REAR BAGGER ROTARY MOWER

...
...
1
CONTROL BAR PLN-133006
...
2
SUB= 154480X479 PLN-132670X479
...
3
SUB= 151590X479 PLN-134081X479
...
4
ROPE GUIDE PLN-132001
...
5
SUB= 73800400 PLN-63601
...
6
BOLT.HANDLE.LM PLN-131959
...
7
SUB= 7192J PLN-664-26
...
8
SUB= 74250434 PLN-85692
...
9
SUB= 107245X PLN-107244X
...
10
WASHER PM PLN-85723
...
11
CABLE MZR E/S PLN-144025
...
12
DRIVE CONTROL PLN-133879
...
13
SCREW PM PLN-86344
...
14
"NUT,WING PM" PLN-128638
...
15
HAIRPIN COTTER PLN-51793
...
19
"PLATE.BACK.20""" PLN-700355X479
...
20
BAFFLE.SIDE PLN-700363X479
...
21
SKIRT.PUSH.20RD PLN-140657
...
22
"SCREW, HEX PM" PLN-85768
...
23
"KIT, REAR DOOR PM" PLN-48257
...
24
LOCKNUT PM PLN-751592
...
25
SUB= 150956 PLN-700913X479
...
26
SUB= 150956 PLN-700915X479
...
27
SCREW PLN-55187
...
29
BRACKET.ADJ.9POS. PLN-700325X007
...
30
SUB= 146630 PLN-84920
...
32
SPRING SELECTOR PLN-700331X004
...
33
KNOB PM PLN-87877
...
34
AXLE ARM PLN-85021X004
...
35
"WASHER, BELLEVIL." PLN-62335
...
36
BOLT SHLD 3/8-16 PLN-142748
...
37
WHEEL&TIRE ASSY PLN-850957
...
38
WASHER PLN-52160
...
39
RETAINER CLIP PM PLN-85179
...
40
HUB CAP PLN-77400
...
41
HINGE SCREW PLN-88652
...
42
SUB= 19131216 PLN-53998
...
43
SCREW PLN-54583
...
44
DISCHARGE GUARD PLN-133188X479
...
45
SCREW PLN-850999
...
46
DECAL HYT PLN-107339X
...
47
BRKT DRV COV PLN-88615
...
48
ENGINE SPACER PLN-850988
...
49
SUB= 850988 PLN-850987
...
50
REAR BAFFLE PLN-700063X479
...
51
SUB= 144961 PLN-132198X479
...
52
KIT.HSG.20RD.FWBD PLN-702084
...
53
SCREW PLN-851084
...
54
LOCKWASHER PLN-850263
...
55
"WASHER,HARDEN" PLN-851074
...
56
SUB= 145106 PLN-134871
...
57
ADAPTOR.BLADE.LM PLN-851514
...
58
SUB= 128889 PLN-851185
...
67
GRASS BAG PLN-132655
...
68
CATCHER FRAME PLN-133413
...
72
BLIND RIVET PLN-128415
...
73
MULCHER PLATE PLN-133169X479
...
74
NUT PLN-73510400
...
xx
DECAL ELEC START ENGINE PLN-851101
...
xx
MANUAL OPR GEN SP PLN-140755
...
xx
NLA PLN-140756
...
xx
MANUAL.P.2D779B PLN-144907
...
xx
HOUSING DECAL PLN-133414
...
xx
CLIPPING DEFL PLN-MA36

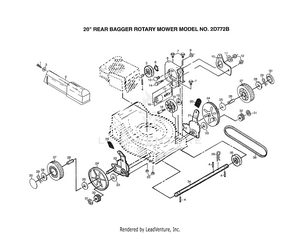

20" REAR BAGGER ROTARY MOWER

...
...
1
TAPPING SCREW PLN-750097
...
2
DRIVE CVR PLN-750727
...
3
SUB= 19070818 PLN-4802
...
4
DRIVE PAWL PLN-851980
...
5
PULLEY PM PLN-88043
...
6
RETAINING RING ST PLN-12000030
...
7
SCREW PLN-54583
...
8
"CLUTCH,FRAME" PLN-851947X004
...
9
LOCKNUT PLN-50962
...
10
LEVER.CLUTCH PLN-702631X004
...
11
SPACER PM PLN-88067
...
12
LOCKNUT PLN-750253
...
13
CARRIAGE BOLT PLN-72070504
...
14
BOLT 1/4-20-1 1/2 PLN-74350424
...
15
SPACER PM PLN-88069
...
16
IDLER ASSY PLN-48160
...
17
IDLER SPACER PLN-88576
...
18
SHOULDER BOLT PLN-88517
...
19
IDLER PULLEY PLN-88516
...
20
KNOB PM PLN-87877
...
21
SUB= 151228 PLN-700339
...
22
SUB= 151226 PLN-700340
...
23
WASHER PM PLN-88118
...
24
DUST SHROUD PM PLN-88080
...
25
WASHER FLUT PLN-67725
...
26
BUSHING.HEX PLN-88446
...
27
WHEEL &TIRE ASSY PLN-850690
...
28
WASHER PLN-52160
...
29
RETAINER CLIP PM PLN-85179
...
30
HUB CAP PLN-77400
...
31
E-RING.7/16.RE. PLN-12000058
...
32
PINION.GEAR PLN-137054
...
33
SUB= 73800400 PLN-63601
...
34
SHAFT.DRIVE.17.81 PLN-700537
...
35
DRIVE PULLEY PM PLN-88082
...
36
"DRIVE, BELT" PLN-850053
...
xx
DECAL PLN-850077
...
...
...
