Husqvarna 2CA (2000) Walk Behind Rotary Mower

Model: 2CA (2000)

Save
 Part Not Listed?Part Not Listed?
product name

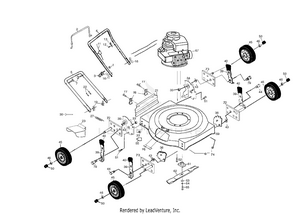

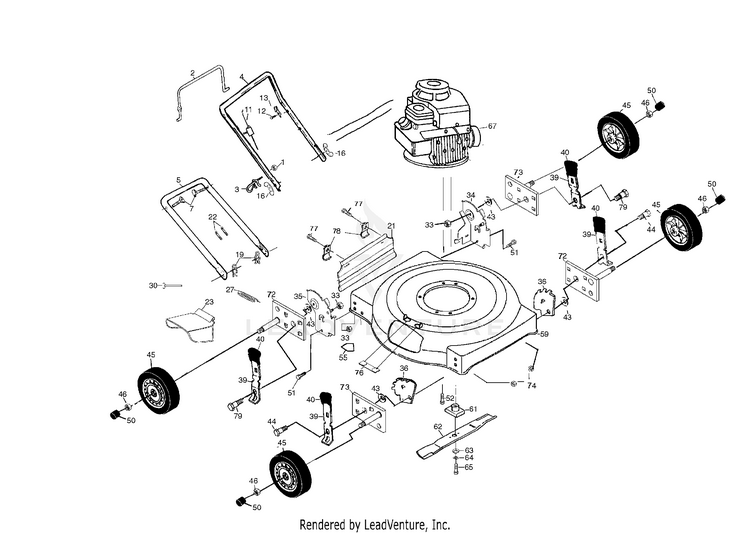

General Assembly

...
...
1
Locknut 1/4-20 PLN-63601
...
2
Control Bar PLN-86902
...
3
Rope Guide PLN-132001
...
4
Upper Handle PLN-169709X479
...
5
Lower Handle PLN-169708X479
...
7
Handle Bolt 5/16-18 PLN-131959
...
11
Engine Zone Control Cable PLN-162778
...
12
Hex Washer Head Screw #10-24 x 1/2 PLN-750097
...
13
Up-Stop Bracket PLN-86899X004
...
16
Wing Nuts PLN-128638
...
19
Hairpin Cotter PLN-51793
...
21
Rear Deflector PLN-165858
...
22
Wire Tie PLN-664-26
...
23
Discharge Guard PLN-160831
...
27
Torsion Spring PLN-160832
...
30
Hinge Rod PLN-160833
...
33
Nut Hex Flange Lock 5/16 - 18 PLN-751153
...
34
Wheel Bracket Support (Left) PLN-168164X479
...
35
Wheel Bracket Support (Right) PLN-168165X479
...
36
Wheel Bracket Adjuster PLN-160835X007
...
39
Selector Spring PLN-168360X004
...
40
Selector Knob PLN-87877
...
43
Washer PLN-19112222
...
44
Shoulder Bolt (5/16-18 x .33) PLN-160828
...
45
Wheel Assembly PLN-800220
...
46
Locknut 1/16-18 PLN-83923
...
50
Hubcap PLN-800090
...
51
Screw Hex Serrated 1/4 x 20.tt PLN-17600406
...
52
Hex Head Thread Rolling Screw 3/8-16 x 1 PLN-150406
...
55
Danger Decal PLN-107339X
...
59
Lawn Mower Housing (Incl. Key Nos. 55) PLN-164184
...
61
Blade Adapter PLN-851514
...
62
22" Blade PLN-141114
...
63
Hardened Washer PLN-851074
...
64
Helical Lockwasher 3/8 PLN-850263
...
65
Screw Hex Head 3/8-24 x 1-3/8 (Grd. 8) PLN-851084
...
72
Axle Arm Assm. ((LF/RR) PLN-167132X004
...
73
Axle Arm Assm. (RF/LR) PLN-167133X004
...
74
Nut PLN-751153
...
76
Clip. Closeout PLN-161622
...
77
Screw PLN-750097
...
78
Rear Deflector Brkt. PLN-87584X004
...
79
Shoulder Bolt (5/16-18 x .51) PLN-160828
...
xx
Warning Decal (Not Shown) PLN-162300
...
xx
Operator's Manual (English) PLN-172782
...
xx
Replacement Parts Manual PLN-171862
...
xx
Grass Catcher Available accessories not included with mower: PLN-GCK3300
...
xx
Mulching Kit Available accessories not included with mower: PLN-MK3300
...
...
...
