product name

Husqvarna 2C672A (1999 & Before) Walk Behind Rotary Mower

Model: 2C672A (1999 & Before)

Save
 Part Not Listed?Part Not Listed?
product name

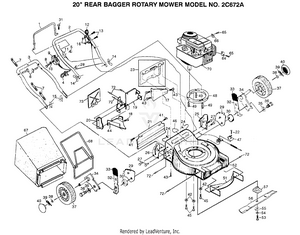

20" REAR BAGGER

...
...
1
CONTROL BAR PLN-132570
...
2
SUB= 154480X479 PLN-132670X479
...
3
SUB= 151590X479 PLN-134081X479
...
4
ROPE GUIDE PLN-132001
...
5
SUB= 73800400 PLN-63601
...
6
BOLT.HANDLE.LM PLN-131959
...
7
SUB= 7192J PLN-664-26
...
8
SUB= 74250434 PLN-85692
...
9
CONTROL THROTTLE PLN-851462
...
10
WASHER PM PLN-85723
...
11
"CABLE,ENG ZONE CO" PLN-130861
...
12
CONTROL.DRIVE PLN-700401
...
13
SCREW PLN-750029
...
14
"NUT,WING PM" PLN-128638
...
15
HAIRPIN COTTER PLN-51793
...
16
NUT PLN-74189
...
17
REAR BAFFLE PLN-700063X479
...
18
SCREW PM PLN-86344
...
19
PLATE.BACK.20RD PLN-700356X479
...
20
BAFFLE.SIDE PLN-700363X479
...
21
SUB= 140657 PLN-133259
...
22
"SCREW, HEX PM" PLN-85768
...
23
"KIT, REAR DOOR PM" PLN-48257
...
24
LOCKNUT PM PLN-751592
...
25
SUB= 150956 PLN-700913X419
...
26
SUB= 150956 PLN-700915X419
...
27
SCREW PLN-55187
...
28
NUT PLN-73510400
...
29
SUB= 700325X007 PLN-700375
...
30
SUB= 146630 PLN-84920
...
31
"SCREW,PAN HD" PLN-851552
...
32
SPRING SELECTOR PLN-700331X004
...
32
SPRING SELECTOR PLN-700331X004
...
33
KNOB PM PLN-87877
...
34
AXLE ARM PLN-85021X004
...
35
SUB= 146247 PLN-800390
...
36
SUB= 142748 PLN-84921
...
37
SUB= 146247 PLN-800390
...
38
WASHER PLN-52160
...
39
RETAINER CLIP PM PLN-85179
...
40
HUB CAP PLN-77400
...
41
HINGE SCREW PLN-88652
...
42
SUB= 19131216 PLN-53998
...
43
SCREW PLN-54583
...
44
DISCHARGE GUARD PLN-133188X479
...
45
SCREW PLN-850999
...
46
DECAL HYT PLN-107339X
...
47
BRKT DRV COV PLN-88615
...
48
ENGINE SPACER PLN-850988
...
49
SUB= 850988 PLN-850987
...
51
SUB= 144961 PLN-132198X479
...
52
KIT.HSG.20RD.FWBD PLN-701446
...
53
SCREW PLN-851084
...
54
LOCKWASHER PLN-850263
...
55
"WASHER,HARDEN" PLN-851074
...
56
SUB= 145106 PLN-134871
...
57
ADAPTOR.BLADE.LM PLN-851514
...
64
CABLE CLAMP PLN-213146
...
65
SCREW PM PLN-83816
...
66
GUIDE CLIP PM PLN-87930
...
67
GRASS BAG PLN-132655
...
68
CATCHER FRAME PLN-133413
...
72
BLIND RIVET PLN-128415
...
73
MULCHER PLATE PLN-133169X479
...
xx
"MANUAL,OP" PLN-700480
...
xx
MANUAL.P.2C672A PLN-702296
...
xx
HOUSING DECAL PLN-133414

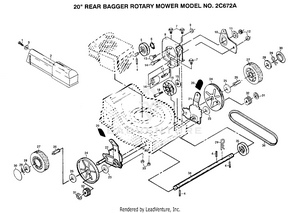

20" REAR BAGGER

...
...
1
TAPPING SCREW PLN-750097
...
2
COVER.DRIVE PLN-111925X
...
3
SUB= 19070818 PLN-4802
...
4
DRIVE PAWL PLN-851980
...
5
PULLEY PM PLN-88043
...
6
RETAINING RING ST PLN-12000030
...
7
SCREW PLN-54583
...
8
"CLUTCH,FRAME" PLN-851947X004
...
9
LOCKNUT PLN-50962
...
10
SUB= 702631X004 PLN-88065X004
...
11
SPACER PM PLN-88067
...
12
LOCKNUT PLN-750253
...
13
CARRIAGE BOLT PLN-72070504
...
14
BOLT 1/4-20-1 1/2 PLN-74350424
...
15
SPACER PM PLN-88069
...
16
IDLER ASSY PLN-48160
...
17
IDLER SPACER PLN-88576
...
18
SHOULDER BOLT PLN-88517
...
19
IDLER PULLEY PLN-88516
...
20
KNOB PM PLN-87877
...
21
SUB= 151228 PLN-700339
...
22
SUB= 151226 PLN-700340
...
23
WASHER PM PLN-88118
...
24
DUST SHROUD PM PLN-88080
...
25
WASHER FLUT PLN-67725
...
26
BUSHING.HEX PLN-88446
...
27
WHEEL.8X2.LP.PR PLN-700953
...
28
WASHER PLN-52160
...
29
RETAINER CLIP PM PLN-85179
...
30
HUB CAP PLN-77400
...
31
SUB= 12000058 PLN-12000057
...
32
PINION.GEAR PLN-137054
...
33
SUB= 73800400 PLN-63601
...
34
SHAFT.DRIVE.17.81 PLN-700537
...
35
DRIVE PULLEY PM PLN-88082
...
36
SUB= TH3H340 PLN-111924X
...
xx
"DECAL,CLEAN UNDER" PLN-852000
...
xx
DECAL DR CVR PLN-850428
...
...
...
