product name

Husqvarna 2226-74 (1997) Walk Behind Rotary Mower

Model: 2226-74 (1997)

Save
 Part Not Listed?Part Not Listed?
product name

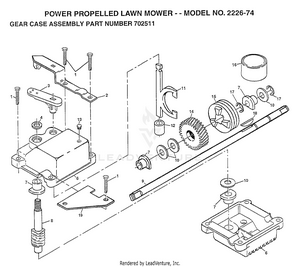

GEAR CASE ASSY

...
...
1
SCREW.1/4-20 PLN-17490416
...
2
BRACKET.GEARCASE PLN-137055X004
...
3
SHIFTER PLN-137053
...
4
SEAL PLN-57072
...
6
KIT GEARCASE HALV PLN-48373
...
7
BEARING PLN-77881
...
8
SHAFT.WORM PLN-137051
...
9
SHAFT.DRIVE PLN-137074
...
10
THRUST WASHER PLN-57079
...
11
CLUTCH YOKE PLN-131484
...
12
BUSHING.GEAR BOX PLN-700343
...
13
PLUG PM PLN-86447
...
14
GEAR.HELICAL PLN-137050
...
15
CLUTCH JAW PLN-750436X
...
16
SUB= 6066J PLN-750369
...
17
RING T PLN-12000003
...
18
HI PRO KEY PLN-850848
...
19
SPRING BRKT PLN-81585X004

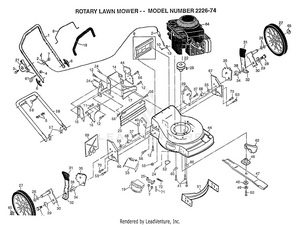

LAWN MOWER

...
...
1
HANDLE.UP.DLX.CON SUBS/1 PLN-145640X479
...
2
"CABLE,ENG ZONE CO" PLN-130861
...
3
SCREW.HXHD.WASH. PLN-144929
...
4
SUB= 73800400 PLN-63601
...
5
SUB= 7192J PLN-151517
...
6
KNOB HANDLE PLN-136376
...
7
SUB= 73800400 PLN-63601
...
8
BAIL.CNTRL.DLX. PLN-145794
...
9
KIT.DOOR.RR.22.PL PLN-147615
...
10
SCREW PM PLN-83816
...
11
SCREW.HXTAP.10-24 PLN-150050
...
12
SCREW PLN-54583
...
13
CABLE CLAMP PLN-213146
...
14
PLATE.BACK PLN-700360X479
...
15
BAFFLE.SIDE PLN-700365X479
...
16
DISCHARGE BAFFLE PLN-133190X479
...
17
REAR BAFFLE PLN-133040X479
...
18
SUB= 164265 PLN-155890
...
19
DOOR.MULCH.COMBI PLN-145281
...
20
SKIRT.REAR.FGD.22 PLN-140540
...
21
"CONTROL, THROTTLE" PLN-700417
...
22
ENGINE.PULLEY.FWG PLN-84596
...
23
HI PRO KEY PM PLN-87677
...
24
BLIND RIVET PLN-128415
...
25
BRACKET.HINGE.W/F PLN-147775
...
26
WAVE WASHER PLN-57143
...
27
ASM WHL & TIRE PLN-700735
...
28
BOLT SHLD 3/8-16 PLN-142748
...
29
WASHER PLN-61651
...
30
AXLE ARM ASSY R PLN-851119X004
...
31
KNOB PM PLN-87877
...
32
SPRING SELECTOR PLN-700331X004
...
33
GUARD.DISCH.CLIPO PLN-145285
...
34
SPACER.HEIGHT.ADJ PLN-146630
...
35
BRACKET.ADJ.9POS. PLN-700325X007
...
37
SCREW.HXWS.5/16 PLN-150078
...
38
WASHER PM PLN-88348
...
39
BRKT.ASM.HDL.LH PLN-701923X479
...
40
BRACKET.ASM.HD.RH PLN-701921X479
...
41
BOLT.ENG.3/8-16 PLN-150406
...
44
HOUSING ASSEMBLY PLN-159102
...
46
ADAPTOR.BLADE.LM PLN-851514
...
47
"BLADE.MULCH.22""" PLN-141114
...
48
"WASHER,HARDEN" PLN-851074
...
49
LOCKWASHER PLN-850263
...
50
SCREW PLN-851084
...
51
KIT.BAF.FRT.22RD PLN-144964
...
52
DECAL HYT PLN-107339X
...
53
SUB= 74780612 PLN-74760612
...
55
LOCKNUT PM PLN-751592
...
56
HINGE SCREW PLN-88652
...
57
HAIRPIN COTTER PLN-51793
...
58
LOWER HANDLE PLN-151721X479
...
59
BOLT.HANDLE.LM PLN-131959
...
60
WASHER PLN-851201X004
...
61
ROPE GUIDE PLN-132001
...
62
SUB= 48283 PLN-134612
...
64
ENGINE PLN-12H802
...
65
HEX FLANGE LOCKNT PLN-83923
...
66
WHL.BRKT.SUPT. RH PLN-107641X479
...
67
WHL BRKT SUPT LH PLN-107640X479
...
68
SPACER PLN-73713
...
69
MULCHER PLATE PLN-133170X479
...
70
SCREW.HX.WSHD. PLN-149588
...
71
ROD.HINGE.COMBI-C PLN-147286
...
72
SPRING.HINGE PLN-152186
...
xx
MANUAL.GEN.SP.E. PLN-145658
...
xx
MANUAL.P.2226-74 PLN-159101

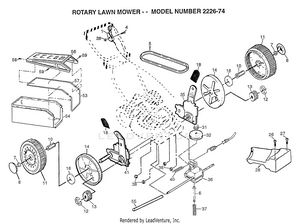

LAWN MOWER

...
...
1
CONTROL.DRV.56.25 PLN-146323
...
4
SCREW.HXHD.WASH. PLN-144929
...
5
SUB= 157769 PLN-146527
...
6
SPRING.RETAINER. PLN-150495
...
7
NUT.HXFLG.LOCK. PLN-145212
...
8
HUB CAP PLN-77400
...
10
BUSHING.HEX PLN-88446
...
11
WHEEL.DRIVE.ASM PLN-88558
...
12
E-RING.7/16.RE. PLN-12000058
...
13
PINION.GEAR PLN-137054
...
14
DUST SHROUD PM PLN-88080
...
16
WASHER FLUT PLN-67725
...
18
KNOB PM PLN-87877
...
26
SCREWL.SLOT.TORXT PLN-146072
...
27
SCREW.SLOT.TORTX. PLN-149746
...
28
"COVER.DRIVE 22""RD" PLN-137081
...
31
LOCKNUT PLN-132010
...
32
PULLEY.DRIVEN PLN-137052
...
35
WHEEL.ADJ.ASM.RH. PLN-151520
...
36
SUB= 48367 PLN-702511
...
37
SPRING.TENSION PLN-137090
...
38
SUB= 73800400 PLN-63601
...
40
SPRING PLN-75192
...
41
WHEEL.ADJ.ASM.LH. PLN-151521
...
53
"FRAME,CATCHER" PLN-851735
...
54
GRASS CATCHER PLN-144605
...
55
DRV SHAFT TUBE PM PLN-86012
...
56
"TOP,CATCHER" PLN-851739
...
57
"TUBE,CATCHER" PLN-851658
...
58
SCREW PLN-131029
...
59
SCREW PLN-750634
...
xx
DRIVE COVER DECAL PLN-159162
...
...
...
