product name

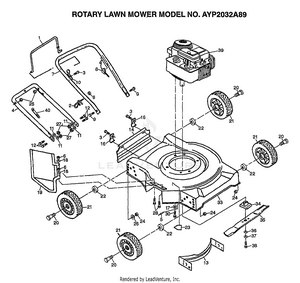

Husqvarna 2032A89 (1998) Walk Behind Rotary Mower

Model: 2032A89 (1998)

Save
 Part Not Listed?Part Not Listed?
product name

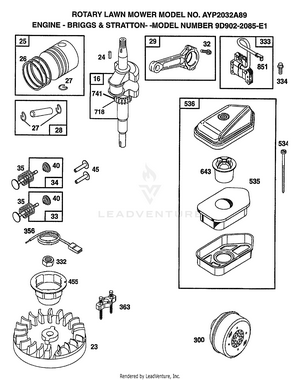

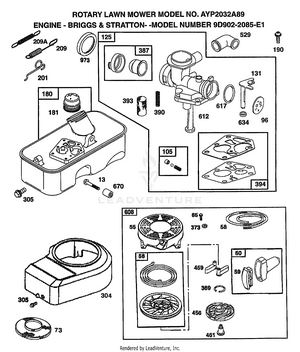

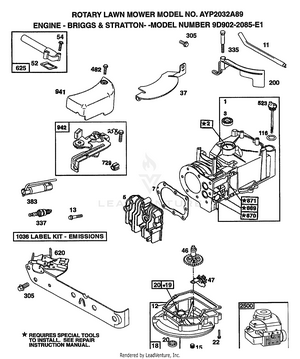

ENGINE BRIGGS AND STRATTON

...
...
1
CYLINDER ASSEMBLY PLN-399164
...
2
BUSHING, CYLINDER PLN-293708
...
3
SEAL, OIL PLN-299819
...
4
SUMP, ENGINE PLN-395384
...
5
HEAD, CYLINDER PLN-214277
...
7
GASKET, CYLINDER HEAD PLN-272694
...
8
BREATHER, VALVE CHAMBER PLN-495785
...
9
GASKET, VALVE COVER PLN-272602
...
10
SCREW, SEMS PLN-94719
...
11
TUBE, BREATHER PLN-231774
...
12
GASKET, CRANKCASE, STANDARD .015" PLN-270833
...
13
SCREW, CYLINDER HEAD PLN-93111
...
15
PLUG, OIL DRAIN PLN-94720
...
16
CRANKSHAFT PLN-499014
...
19
BUSHING, ENGINE SUMP PLN-293709
...
20
SEAL, OIL PLN-391483
...
22
SCREW PLN-94682
...
23
FLYWHEEL, MAGNETO ROD ASSY, CONNECTING PLN-495046
...
24
KEY, FLYWHEEL PLN-222698
...
25
PISTON ASSEMBLY, STANDARD PLN-498668
...
25
PISTON ASSEMBLY, .010" OVERSIZE PLN-498669
...
25
PISTON ASSEMBLY, .020" OVERSIZE PLN-498670
...
25
PISTON ASSEMBLY, .030" OVERSIZE PLN-498671
...
26
RING SET, STANDARD SIZE PLN-498680
...
26
RING SET, .010" OVERSIZE PLN-498681
...
26
RING SET, .020" OVERSIZE PLN-498682
...
26
RING SET, .030" OVERSIZE PLN-498683
...
27
LOCK, PISTON PIN PLN-26026
...
28
PIN ASSY, PISTON, STD PLN-298909
...
28
PIN ASSEMBLY, PISTON .005" OVERSIZE PLN-298908
...
29
ROD ASSEMBLY, CONNECTING PLN-294201
...
29
ROD ASSEMBLY, CONNECTING .020" UNDERSIZE CRANKPIN PLN-296079
...
32
SCREW PLN-94699
...
33
VALVE, EXHAUST PLN-296676
...
34
VALVE, INTAKE PLN-296677
...
35
SPRING, INTAKE VALVE PLN-260552
...
37
GUARD, FLYWHEEL PLN-225013
...
40
RETAINER, VALVE SPRING PLN-93312
...
45
TAPPET, VALVE PLN-230173
...
46
GEAR, CAM PLN-493747
...
47
OIL SLINGER GEAR & BRACKET PLN-491688
...
52
GASKET, INTAKE ELBOW PLN-270345
...
54
SCREW PLN-93485
...
55
HOUSING, REWIND STARTER PLN-499441
...
56
PULLEY, STARTER PLN-499901
...
58
ROPE, REWIND STARTER PLN-280406
...
59
INSERT, HANDLE PLN-396892
...
60
HANDLE, REWIND STARTER PLN-393152
...
65
SCREW, SEMS PLN-94904
...
73
SCREEN, ROTATING PLN-225381
...
96
VALVE THROTTLE PLN-224412
...
105
SEAT, NEEDLE VALVE PLN-494409
...
116
SEAL, FILLER TUBE PLN-271485
...
125
CARBURETOR ASSY PLN-498809
...
131
SHAFT THROTTLE PLN-281437
...
163
GASKET, AIR CLEANER PLN-271139
...
180
TANK ASSEMBLY, FUEL PLN-494406
...
181
CAP, FUEL TANK PLN-497929
...
190
SCREW, FUEL TANK MOUNTING PLN-93440
...
200
BLADE, GOVERNOR PLN-281024
...
201
LINK, GOVERNOR PLN-262753
...
209
SPRING, GOVERNOR PLN-263114
...
209A
SPRING, GOVERNOR PLN-263109
...
258
SCREW PLN-95120
...
300
MUFFLER, EXHAUST PLN-394569
...
304
HOUSING, BLOWER PLN-499165
...
305
SCREW PLN-94786
...
306
SHIELD, CYLINDER PLN-221805
...
307
SCREW HEX HD PLN-94515
...
332
NUT, FLYWHEEL PLN-94877
...
333
ARMATURE, MAGNETO PLN-496914
...
334
SCREW, SEMS PLN-94731
...
335
SCREW PLN-94732
...
337
PLUG, SPARK PLN-802592
...
356
WIRE GROUND PLN-497833
...
363
PULLEY, FLYWHEEL PLN-19069
...
369
SPRING, RETAINER PLN-263073
...
373
NUT, HEX PLN-92987
...
383
WRENCH SPARK PLUG PLN-89838
...
387
PRIMER BULB PLN-494408
...
390
SPRING, DIAPHRAGM PLN-262764
...
393
SCREEN, CARBURETOR PLN-262734
...
394
DIAPHRAGM CARB PLN-495770
...
455
CUP, FLYWHEEL PLN-225502
...
456
RETAINER, STARTER PLN-281503
...
459
PAWL, RATCHET PLN-281505
...
482
SCREW PLN-94851
...
523
PLUG, OIL FILLER PLN-281081
...
529
GROMMET, BREATHER TUBE PLN-67838
...
634
SCREW PLN-93865
...
535
ELEMENT, AIR CLEANER PLN-272235
...
536
CLEANER ASSEMBLY, AIR PLN-493492
...
608
STARTER, REWIND PLN-499706
...
612
PIPE FUEL PLN-496046
...
617
SEAL, FUEL INTAKE TUBE PLN-270344
...
620
BRACKET, CONTROL PLN-498207
...
625
TUBE, FUEL INTAKE PLN-298775
...
634
WASHER THROTTLE SHAFT PLN-280566
...
635
ELBOW, SPARK PLUG PLN-66538
...
643
CUP, AIR CLEANER PLN-280972
...
670
SPACER PLN-94047
...
718
P/N CONFLICT - CHECK WITH SUPPLIER PLN-231993
...
729
CLIP, WIRE PLN-280470
...
741
GEAR, TIMING PLN-261533
...
851
TERMINAL, IGNITION CABLE PLN-493880
...
869
SEAT, INTAKE VALVE, STANDARD PLN-211172
...
870
SEAT, EXHAUST VALVE, STANDARD PLN-211291
...
871
GUIDE, EXHAUST VALVE PLN-231348
...
871
GUIDE, INTAKE VALVE PLN-63709
...
941
COVER, LINKAGE PLN-281715
...
942
BRACKET, BRAKE PLN-499260
...
973
RING, TRIM PLN-281661
...
1036
LABEL KIT, EMISSIONS PLN-499332
...
2500
ENGINE PLN-98902-1516
...
xx
SHORTBLOCK PLN-398211
...
xx
GASKET SET PLN-298989

ENGINE BRIGGS AND STRATTON

...
...
1
CYLINDER ASSEMBLY PLN-399164
...
2
BUSHING, CYLINDER PLN-293708
...
3
SEAL, OIL PLN-299819
...
4
SUMP, ENGINE PLN-395384
...
5
HEAD, CYLINDER PLN-214277
...
7
GASKET, CYLINDER HEAD PLN-272694
...
8
BREATHER, VALVE CHAMBER PLN-495785
...
9
GASKET, VALVE COVER PLN-272602
...
10
SCREW, SEMS PLN-94719
...
11
TUBE, BREATHER PLN-231774
...
12
GASKET, CRANKCASE, STANDARD .015" PLN-270833
...
13
SCREW, CYLINDER HEAD PLN-93111
...
15
PLUG, OIL DRAIN PLN-94720
...
16
CRANKSHAFT PLN-499014
...
19
BUSHING, ENGINE SUMP PLN-293709
...
20
SEAL, OIL PLN-391483
...
22
SCREW PLN-94682
...
23
FLYWHEEL, MAGNETO ROD ASSY, CONNECTING PLN-495046
...
24
KEY, FLYWHEEL PLN-222698
...
25
PISTON ASSEMBLY, STANDARD PLN-498668
...
25
PISTON ASSEMBLY, .010" OVERSIZE PLN-498669
...
25
PISTON ASSEMBLY, .020" OVERSIZE PLN-498670
...
25
PISTON ASSEMBLY, .030" OVERSIZE PLN-498671
...
26
RING SET, STANDARD SIZE PLN-498680
...
26
RING SET, .010" OVERSIZE PLN-498681
...
26
RING SET, .020" OVERSIZE PLN-498682
...
26
RING SET, .030" OVERSIZE PLN-498683
...
27
LOCK, PISTON PIN PLN-26026
...
28
PIN ASSY, PISTON, STD PLN-298909
...
28
PIN ASSEMBLY, PISTON .005" OVERSIZE PLN-298908
...
29
ROD ASSEMBLY, CONNECTING PLN-294201
...
29
ROD ASSEMBLY, CONNECTING .020" UNDERSIZE CRANKPIN PLN-296079
...
32
SCREW PLN-94699
...
33
VALVE, EXHAUST PLN-296676
...
34
VALVE, INTAKE PLN-296677
...
35
SPRING, INTAKE VALVE PLN-260552
...
37
GUARD, FLYWHEEL PLN-225013
...
40
RETAINER, VALVE SPRING PLN-93312
...
45
TAPPET, VALVE PLN-230173
...
46
GEAR, CAM PLN-493747
...
47
OIL SLINGER GEAR & BRACKET PLN-491688
...
52
GASKET, INTAKE ELBOW PLN-270345
...
54
SCREW PLN-93485
...
55
HOUSING, REWIND STARTER PLN-499441
...
56
PULLEY, STARTER PLN-499901
...
58
ROPE, REWIND STARTER PLN-280406
...
59
INSERT, HANDLE PLN-396892
...
60
HANDLE, REWIND STARTER PLN-393152
...
65
SCREW, SEMS PLN-94904
...
73
SCREEN, ROTATING PLN-225381
...
96
VALVE THROTTLE PLN-224412
...
105
SEAT, NEEDLE VALVE PLN-494409
...
116
SEAL, FILLER TUBE PLN-271485
...
125
CARBURETOR ASSY PLN-498809
...
131
SHAFT THROTTLE PLN-281437
...
163
GASKET, AIR CLEANER PLN-271139
...
180
TANK ASSEMBLY, FUEL PLN-494406
...
181
CAP, FUEL TANK PLN-497929
...
190
SCREW, FUEL TANK MOUNTING PLN-93440
...
200
BLADE, GOVERNOR PLN-281024
...
201
LINK, GOVERNOR PLN-262753
...
209
SPRING, GOVERNOR PLN-263114
...
209A
SPRING, GOVERNOR PLN-263109
...
258
SCREW PLN-95120
...
300
MUFFLER, EXHAUST PLN-394569
...
304
HOUSING, BLOWER PLN-499165
...
305
SCREW PLN-94786
...
306
SHIELD, CYLINDER PLN-221805
...
307
SCREW HEX HD PLN-94515
...
332
NUT, FLYWHEEL PLN-94877
...
333
ARMATURE, MAGNETO PLN-496914
...
334
SCREW, SEMS PLN-94731
...
335
SCREW PLN-94732
...
337
PLUG, SPARK PLN-802592
...
356
WIRE GROUND PLN-497833
...
363
PULLEY, FLYWHEEL PLN-19069
...
369
SPRING, RETAINER PLN-263073
...
373
NUT, HEX PLN-92987
...
383
WRENCH SPARK PLUG PLN-89838
...
387
PRIMER BULB PLN-494408
...
390
SPRING, DIAPHRAGM PLN-262764
...
393
SCREEN, CARBURETOR PLN-262734
...
394
DIAPHRAGM CARB PLN-495770
...
455
CUP, FLYWHEEL PLN-225502
...
456
RETAINER, STARTER PLN-281503
...
459
PAWL, RATCHET PLN-281505
...
482
SCREW PLN-94851
...
523
PLUG, OIL FILLER PLN-281081
...
529
GROMMET, BREATHER TUBE PLN-67838
...
634
SCREW PLN-93865
...
535
ELEMENT, AIR CLEANER PLN-272235
...
536
CLEANER ASSEMBLY, AIR PLN-493492
...
608
STARTER, REWIND PLN-499706
...
612
PIPE FUEL PLN-496046
...
617
SEAL, FUEL INTAKE TUBE PLN-270344
...
620
BRACKET, CONTROL PLN-498207
...
625
TUBE, FUEL INTAKE PLN-298775
...
634
WASHER THROTTLE SHAFT PLN-280566
...
635
ELBOW, SPARK PLUG PLN-66538
...
643
CUP, AIR CLEANER PLN-280972
...
670
SPACER PLN-94047
...
718
P/N CONFLICT - CHECK WITH SUPPLIER PLN-231993
...
729
CLIP, WIRE PLN-280470
...
741
GEAR, TIMING PLN-261533
...
851
TERMINAL, IGNITION CABLE PLN-493880
...
869
SEAT, INTAKE VALVE, STANDARD PLN-211172
...
870
SEAT, EXHAUST VALVE, STANDARD PLN-211291
...
871
GUIDE, EXHAUST VALVE PLN-231348
...
871
GUIDE, INTAKE VALVE PLN-63709
...
941
COVER, LINKAGE PLN-281715
...
942
BRACKET, BRAKE PLN-499260
...
973
RING, TRIM PLN-281661
...
1036
LABEL KIT, EMISSIONS PLN-499332
...
2500
ENGINE PLN-98902-1516
...
xx
SHORTBLOCK PLN-398211
...
xx
GASKET SET PLN-298989

ENGINE BRIGGS AND STRATTON

...
...
1
CYLINDER ASSEMBLY PLN-399164
...
2
BUSHING, CYLINDER PLN-293708
...
3
SEAL, OIL PLN-299819
...
4
SUMP, ENGINE PLN-395384
...
5
HEAD, CYLINDER PLN-214277
...
7
GASKET, CYLINDER HEAD PLN-272694
...
8
BREATHER, VALVE CHAMBER PLN-495785
...
9
GASKET, VALVE COVER PLN-272602
...
10
SCREW, SEMS PLN-94719
...
11
TUBE, BREATHER PLN-231774
...
12
GASKET, CRANKCASE, STANDARD .015" PLN-270833
...
13
SCREW, CYLINDER HEAD PLN-93111
...
15
PLUG, OIL DRAIN PLN-94720
...
16
CRANKSHAFT PLN-499014
...
19
BUSHING, ENGINE SUMP PLN-293709
...
20
SEAL, OIL PLN-391483
...
22
SCREW PLN-94682
...
23
FLYWHEEL, MAGNETO ROD ASSY, CONNECTING PLN-495046
...
24
KEY, FLYWHEEL PLN-222698
...
25
PISTON ASSEMBLY, STANDARD PLN-498668
...
25
PISTON ASSEMBLY, .010" OVERSIZE PLN-498669
...
25
PISTON ASSEMBLY, .020" OVERSIZE PLN-498670
...
25
PISTON ASSEMBLY, .030" OVERSIZE PLN-498671
...
26
RING SET, STANDARD SIZE PLN-498680
...
26
RING SET, .010" OVERSIZE PLN-498681
...
26
RING SET, .020" OVERSIZE PLN-498682
...
26
RING SET, .030" OVERSIZE PLN-498683
...
27
LOCK, PISTON PIN PLN-26026
...
28
PIN ASSY, PISTON, STD PLN-298909
...
28
PIN ASSEMBLY, PISTON .005" OVERSIZE PLN-298908
...
29
ROD ASSEMBLY, CONNECTING PLN-294201
...
29
ROD ASSEMBLY, CONNECTING .020" UNDERSIZE CRANKPIN PLN-296079
...
32
SCREW PLN-94699
...
33
VALVE, EXHAUST PLN-296676
...
34
VALVE, INTAKE PLN-296677
...
35
SPRING, INTAKE VALVE PLN-260552
...
37
GUARD, FLYWHEEL PLN-225013
...
40
RETAINER, VALVE SPRING PLN-93312
...
45
TAPPET, VALVE PLN-230173
...
46
GEAR, CAM PLN-493747
...
47
OIL SLINGER GEAR & BRACKET PLN-491688
...
52
GASKET, INTAKE ELBOW PLN-270345
...
54
SCREW PLN-93485
...
55
HOUSING, REWIND STARTER PLN-499441
...
56
PULLEY, STARTER PLN-499901
...
58
ROPE, REWIND STARTER PLN-280406
...
59
INSERT, HANDLE PLN-396892
...
60
HANDLE, REWIND STARTER PLN-393152
...
65
SCREW, SEMS PLN-94904
...
73
SCREEN, ROTATING PLN-225381
...
96
VALVE THROTTLE PLN-224412
...
105
SEAT, NEEDLE VALVE PLN-494409
...
116
SEAL, FILLER TUBE PLN-271485
...
125
CARBURETOR ASSY PLN-498809
...
131
SHAFT THROTTLE PLN-281437
...
163
GASKET, AIR CLEANER PLN-271139
...
180
TANK ASSEMBLY, FUEL PLN-494406
...
181
CAP, FUEL TANK PLN-497929
...
190
SCREW, FUEL TANK MOUNTING PLN-93440
...
200
BLADE, GOVERNOR PLN-281024
...
201
LINK, GOVERNOR PLN-262753
...
209
SPRING, GOVERNOR PLN-263114
...
209A
SPRING, GOVERNOR PLN-263109
...
258
SCREW PLN-95120
...
300
MUFFLER, EXHAUST PLN-394569
...
304
HOUSING, BLOWER PLN-499165
...
305
SCREW PLN-94786
...
306
SHIELD, CYLINDER PLN-221805
...
307
SCREW HEX HD PLN-94515
...
332
NUT, FLYWHEEL PLN-94877
...
333
ARMATURE, MAGNETO PLN-496914
...
334
SCREW, SEMS PLN-94731
...
335
SCREW PLN-94732
...
337
PLUG, SPARK PLN-802592
...
356
WIRE GROUND PLN-497833
...
363
PULLEY, FLYWHEEL PLN-19069
...
369
SPRING, RETAINER PLN-263073
...
373
NUT, HEX PLN-92987
...
383
WRENCH SPARK PLUG PLN-89838
...
387
PRIMER BULB PLN-494408
...
390
SPRING, DIAPHRAGM PLN-262764
...
393
SCREEN, CARBURETOR PLN-262734
...
394
DIAPHRAGM CARB PLN-495770
...
455
CUP, FLYWHEEL PLN-225502
...
456
RETAINER, STARTER PLN-281503
...
459
PAWL, RATCHET PLN-281505
...
482
SCREW PLN-94851
...
523
PLUG, OIL FILLER PLN-281081
...
529
GROMMET, BREATHER TUBE PLN-67838
...
634
SCREW PLN-93865
...
535
ELEMENT, AIR CLEANER PLN-272235
...
536
CLEANER ASSEMBLY, AIR PLN-493492
...
608
STARTER, REWIND PLN-499706
...
612
PIPE FUEL PLN-496046
...
617
SEAL, FUEL INTAKE TUBE PLN-270344
...
620
BRACKET, CONTROL PLN-498207
...
625
TUBE, FUEL INTAKE PLN-298775
...
634
WASHER THROTTLE SHAFT PLN-280566
...
635
ELBOW, SPARK PLUG PLN-66538
...
643
CUP, AIR CLEANER PLN-280972
...
670
SPACER PLN-94047
...
718
P/N CONFLICT - CHECK WITH SUPPLIER PLN-231993
...
729
CLIP, WIRE PLN-280470
...
741
GEAR, TIMING PLN-261533
...
851
TERMINAL, IGNITION CABLE PLN-493880
...
869
SEAT, INTAKE VALVE, STANDARD PLN-211172
...
870
SEAT, EXHAUST VALVE, STANDARD PLN-211291
...
871
GUIDE, EXHAUST VALVE PLN-231348
...
871
GUIDE, INTAKE VALVE PLN-63709
...
941
COVER, LINKAGE PLN-281715
...
942
BRACKET, BRAKE PLN-499260
...
973
RING, TRIM PLN-281661
...
1036
LABEL KIT, EMISSIONS PLN-499332
...
2500
ENGINE PLN-98902-1516
...
xx
SHORTBLOCK PLN-398211
...
xx
GASKET SET PLN-298989

ROTARY LAWN MOWER

...
...
1
CONTROL BAR PM PLN-86902
...
2
ROPE GUIDE PLN-132001
...
3
TAPPING SCREW PLN-750097
...
4
HANDLE LWR PM PLN-851646X479
...
5
BLIND RIVET PLN-128415
...
6
SUB= 73800400 PLN-63601
...
7
UPPER HANDLE PLN-132826X479
...
8
ENG ZONE CTRL CAB PLN-162777
...
9
BOLT 1/4-20-1 1/2 PLN-74350424
...
10
"BRKT,UPSTOP PM" PLN-86899X004
...
11
STEEL WASHER PLN-55611
...
12
SUB= 532137009 PLN-137009
...
13
FRONT BAFFLE PLN-700839X479
...
14
SKIRT.REAR.20RD. PLN-140541
...
16
"BRKT,DEFL PM" PLN-87584X004
...
17
WASHER PLN-851201X004
...
18
SUB= 19091214 PLN-53847
...
19
"GRD,DISCHARGE" PLN-752052
...
20
AXLE BOLT PLN-67609
...
21
WHEEL&TIRE PLN-800060
...
22
SUB= 532136624 PLN-136624
...
23
DECAL-DANGER PM PLN-85463
...
24
LOCKNUT PM PLN-751592
...
25
SUB= 73800400 PLN-132004
...
26
SUB= 19132012 PLN-61537
...
27
LOCKNUT PLN-132010
...
30
BOLT.ENG.3/8-16 PLN-150406
...
33
KIT.HSG.20SD.PUSH PLN-146419
...
34
BLADE ADAPTOR PLN-850977
...
35
BLADE.20.MULCH.AY PLN-145106
...
36
"WASHER,HARDEN" PLN-851074
...
37
LOCKWASHER PLN-850263
...
38
SCREW PLN-851084
...
40
SUB= 7192J PLN-664-26
...
xx
MANUAL.O.2032A89 PLN-162415
...
...
...
Processing
