product name

Husqvarna 1P309C (1995) Walk Behind Rotary Mower

Model: 1P309C (1995)

Save
 Part Not Listed?Part Not Listed?
product name

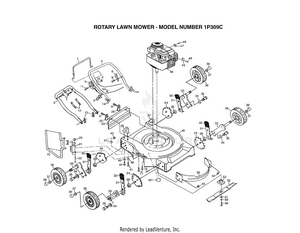

ROTARY LAWN MOWER

...
...
1
CONTROL BAR PM PLN-86902
...
2
ROPE GUIDE PLN-132001
...
3
CONTROL THROTTLE PLN-851462
...
4
SUB= 160223X479 PLN-132649X479
...
5
SUB= 151516X479 PLN-84676X479
...
6
SUB= 73800400 PLN-63601
...
7
BOLT.HANDLE.LM PLN-131959
...
8
"BRKT,UPSTOP" PLN-850733X004
...
9
TAPPING SCREW PLN-750097
...
10
"CABLE,ENG ZONE CO" PLN-130861
...
11
SCREW.HXHD.WASH. PLN-144929
...
12
SUB= 7192J PLN-664-26
...
13
HAIRPIN COTTER PLN-51793
...
14
"NUT,WING PM" PLN-128638
...
15
"GRD,DISCHARGE" PLN-752052
...
16
BLIND RIVET PLN-128415
...
17
SCREW PLN-851856
...
19
"SPRING,TORSION" PLN-851855
...
20
PUSH ON SPEED NUT PLN-83731
...
21
"BRKT,HSG " PLN-851981X004
...
22
SUB= 150215 PLN-801728
...
23
SKIRT.RD.20/22 PLN-140543
...
24
BRACKET.ADJ.9POS. PLN-700325X007
...
25
"BRKT,DEFL PM" PLN-87584X004
...
26
SUB= 150959 PLN-701969X479
...
27
SUB= 150959 PLN-701971X479
...
29
SPACER.HEIGHT.ADJ PLN-146630
...
31
SPRING SELECTOR PLN-700331X004
...
32
KNOB PM PLN-87877
...
33
ARM.AXLE.ASM.BZP. PLN-145935X004
...
34
"WASHER, BELLEVIL." PLN-62335
...
35
BOLT SHLD 3/8-16 PLN-142748
...
36
WHEEL&TIRE PLN-800060
...
37
HEX FLANGE LOCKNT PLN-83923
...
39
HUB CAP-PLASTIC PLN-800090
...
40
STEEL WASHER PLN-59289
...
41
SCREW PLN-55187
...
42
DECAL HYT PLN-107339X
...
43
LOCKNUT PM PLN-751592
...
44
SCREW PLN-850998
...
45
CABLE CLAMP PLN-213146
...
46
"KIT.HSG.20""SDPUSH" PLN-701526
...
47
GUIDE CLIP PM PLN-87930
...
48
SCREW PM PLN-83816
...
49
SCREW PLN-851084
...
50
LOCKWASHER PLN-850263
...
51
"WASHER,HARDEN" PLN-851074
...
52
BLADE.20.MULCH.AY PLN-145106
...
53
BLADE ADAPTOR PLN-850977
...
54
NUT PLN-73510400
...
55
FRONT BAFFLE PLN-700839X479
...
57
SUB= 19132012 PLN-61537
...
xx
MANUAL.OP.GEN.PUS PLN-145655
...
xx
MANUAL.OPR.FRENCH PLN-145656
...
xx
MANUAL.P.1P309C PLN-150014
...
...
...
