Husqvarna 1M309A (1996) Walk Behind Rotary Mower

Model: 1M309A (1996)

Save
 Part Not Listed?Part Not Listed?
product name

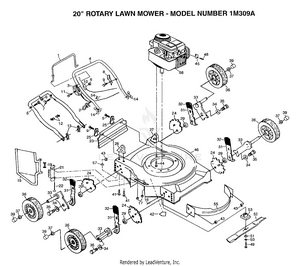

20" ROTARY LAWN MOWER

...
...
1
CONTROL BAR PM PLN-86902
...
2
ROPE GUIDE PLN-132001
...
3
"CONTROL, THROTTLE" PLN-700417
...
4
SUB= 165452X479 PLN-145645X479
...
5
LOWER HANDLE PLN-151516X479
...
6
SUB= 73800400 PLN-63601
...
7
BOLT.HANDLE.LM PLN-131959
...
8
"BRKT,UPSTOP" PLN-850733X004
...
9
TAPPING SCREW PLN-750097
...
10
CABLE.ASM PLN-851671
...
11
SCREW.HXHD.WASH. PLN-144929
...
12
SUB= 7192J PLN-151517
...
13
HAIRPIN COTTER PLN-51793
...
14
"NUT,WING PM" PLN-128638
...
15
"GRD,DISCHARGE" PLN-752052
...
16
BLIND RIVET PLN-128415
...
17
SUB= 73800400 PLN-63601
...
19
"SPRING,TORSION" PLN-851855
...
21
HINGE DEFLECTOR PLN-88602
...
22
HINGE ROD PLN-150215
...
23
SKIRT.RD.20/22 PLN-140543
...
24
BRACKET.ADJ.9POS. PLN-700325X007
...
25
"BRKT,DEFL PM" PLN-87584X004
...
26
HDLE BRKT ASSY.RH PLN-151665X479
...
27
HDLE BRKT ASSY LH PLN-151667X479
...
29
SPACER.HEIGHT.ADJ PLN-146630
...
31
SPRING SELECTOR PLN-700331X004
...
32
KNOB PM PLN-87877
...
33
ARM.AXLE.ASM.BZP. PLN-145935X004
...
34
BOLT SHLD 3/8-16 PLN-142748
...
35
BOLT SHLD 3/8-16 PLN-142748
...
36
WHEEL&TIRE PLN-800060
...
37
HEX FLANGE LOCKNT PLN-83923
...
39
HUB CAP-PLASTIC PLN-800090
...
41
SCREW 5/16-18X3/4 PLN-149741
...
42
DECAL HYT PLN-107339X
...
43
LOCKNUT PM PLN-751592
...
44
BOLT.ENG.3/8-16 PLN-150406
...
45
CABLE CLAMP PLN-213146
...
46
HOUSING KIT MOWER PLN-154654
...
48
SCREW PM PLN-83816
...
49
SCREW PLN-851084
...
50
LOCKWASHER PLN-850263
...
51
"WASHER,HARDEN" PLN-851074
...
52
BLADE.20.MULCH.AY PLN-145106
...
53
BLADE ADAPTOR PLN-850977
...
54
NUT PLN-73510400
...
55
FRONT BAFFLE PLN-700839X479
...
57
SUB= 19132012 PLN-61537
...
xx
MANUAL.OP.GEN.PUS PLN-145655
...
xx
MANUAL.OPR.FRENCH PLN-145656
...
xx
MANUAL.P.1M309A PLN-154653
...
...
...
