Husqvarna 1C209A (1999 & Before) Walk Behind Rotary Mower

Model: 1C209A (1999 & Before)

Save
 Part Not Listed?Part Not Listed?
product name

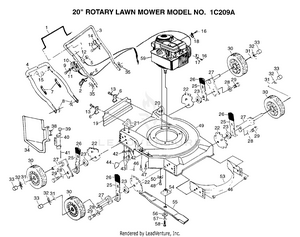

REPAIR PARTS

...
...
1
CONTROL BAR PM PLN-86902
...
2
ROPE GUIDE PLN-132001
...
3
SUB= 160223X479 PLN-132649X479
...
4
SUB= 151516X479 PLN-84676X479
...
5
SUB= 73800400 PLN-63601
...
6
"BRKT,DEFL PM" PLN-87584X004
...
7
SUB= 7192J PLN-664-26
...
8
HAIRPIN COTTER PLN-51793
...
9
SUB= 74250434 PLN-85692
...
10
CONTROL THROTTLE PLN-851462
...
11
WASHER PM PLN-85723
...
12
"CABLE,ENG ZONE CO" PLN-130861
...
13
TAPPING SCREW PLN-750097
...
14
"BRKT,UPSTOP" PLN-850733X004
...
15
BOLT.HANDLE.LM PLN-131959
...
16
SCREW PM PLN-83816
...
17
CABLE CLAMP PLN-213146
...
18
"CLIP,CABLE" PLN-850472
...
19
SUB= 140541 PLN-751228
...
20
SUB= 150959 PLN-135152X505
...
21
SUB= 150959 PLN-135151X505
...
22
SUB= 700328X007 PLN-700378
...
23
SUB= 146630 PLN-84920
...
25
SPRING SELECTOR PLN-700331X004
...
26
KNOB PM PLN-87877
...
27
AXLE ARM PLN-85021X004
...
28
"WASHER, BELLEVIL." PLN-62335
...
29
SUB= 142748 PLN-84921
...
30
WHEEL&TIRE PLN-800060
...
31
WASHER PLN-52160
...
32
RETAINER CLIP PM PLN-85179
...
33
HUB CAP-PLASTIC PLN-800090
...
34
"GRD,DISCHARGE" PLN-752052
...
35
"NUT,WING PM" PLN-128638
...
38
"SPRING,TORSION" PLN-851855
...
39
PUSH ON SPEED NUT PLN-83731
...
40
"BRKT,HSG " PLN-851981X004
...
41
SUB= 150215 PLN-801728
...
42
STEEL WASHER PLN-59289
...
43
SCREW PLN-55187
...
44
DECAL HYT PLN-107339X
...
46
LOCKNUT PM PLN-751592
...
47
SCREW PLN-851856
...
48
SCREW PLN-850998
...
49
"KIT.HSG.20""SDPUSH" PLN-701526
...
50
WASHER PLN-851201X004
...
53
FRONT BAFFLE PLN-700839X479
...
54
BLADE ADAPTOR PLN-850977
...
55
BLADE.STAND.20INC PLN-850972
...
56
"WASHER,HARDEN" PLN-851074
...
57
LOCKWASHER PLN-850263
...
58
SCREW PLN-851084
...
xx
NLA PLN-700714
...
xx
NLA PLN-701752
...
...
...
