Husqvarna 1A201B (1999 & Before) Walk Behind Rotary Mower

Model: 1A201B (1999 & Before)

Save
 Part Not Listed?Part Not Listed?
product name

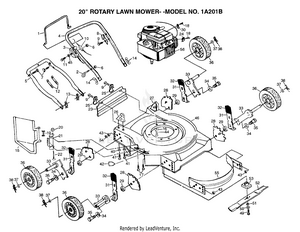

REPAIR PARTS

...
...
1
CONTROL BAR PM PLN-86902
...
2
ROPE GUIDE PLN-132001
...
3
CONTROL THROTTLE PLN-851462
...
4
SUB= 160223X479 PLN-132649X479
...
5
SUB= 151516X479 PLN-84676X479
...
6
SUB= 73800400 PLN-63601
...
7
BOLT.HANDLE.LM PLN-131959
...
8
"BRKT,UPSTOP" PLN-850733X004
...
9
TAPPING SCREW PLN-750097
...
10
"CABLE,ENG ZONE CO" PLN-130861
...
11
SUB= 74250434 PLN-85692
...
12
SUB= 7192J PLN-664-26
...
13
HAIRPIN COTTER PLN-51793
...
14
"NUT,WING PM" PLN-128638
...
15
"GRD,DISCHARGE" PLN-752052
...
16
WASHER PLN-851201X004
...
17
SCREW PLN-851856
...
18
SCREW PM PLN-83816
...
19
"SPRING,TORSION" PLN-851855
...
20
PUSH ON SPEED NUT PLN-83731
...
21
"BRKT,HSG " PLN-851981X004
...
22
SUB= 150215 PLN-801728
...
23
SUB= 140541 PLN-751228
...
24
CABLE CLAMP PLN-213146
...
25
"BRKT,DEFL PM" PLN-87584X004
...
26
SUB= 150959 PLN-701969X479
...
27
SUB= 150959 PLN-701971X479
...
28
BRACKET.ADJ. PLN-133000X007
...
29
SUB= 146630 PLN-84920
...
30
GUIDE CLIP PM PLN-87930
...
31
SUB= 700331X004 PLN-850855X004
...
32
KNOB PM PLN-87877
...
33
AXLE ARM PLN-85021X004
...
34
"WASHER, BELLEVIL." PLN-62335
...
35
SUB= 142748 PLN-84921
...
36
WHEEL ASSY PLN-130491
...
37
WASHER PLN-52160
...
38
RETAINER CLIP PM PLN-85179
...
40
STEEL WASHER PLN-59289
...
41
SCREW PLN-55187
...
42
DECAL HYT PLN-107339X
...
43
LOCKNUT PM PLN-751592
...
44
SCREW PLN-850998
...
45
WASHER PM PLN-85723
...
46
"KIT.HSG.20""SDPUSH" PLN-701526
...
49
SCREW PLN-851084
...
50
LOCKWASHER PLN-850263
...
51
"WASHER,HARDEN" PLN-851074
...
52
BLADE.STAND.20INC PLN-850972
...
53
BLADE ADAPTOR PLN-850977
...
54
SUB= 19132012 PLN-61537
...
55
FRONT BAFFLE PLN-700839X479
...
xx
MANUAL OP GEN RTA PLN-140751
...
xx
MANUAL.P.1A201B PLN-142759
...
...
...
