Husqvarna 1A (1999 & Before) Walk Behind Rotary Mower

Model: 1A (1999 & Before)

Save
 Part Not Listed?Part Not Listed?
product name

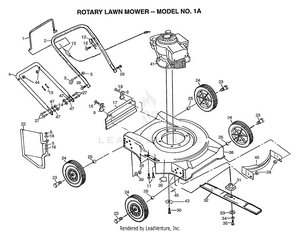

ROTARY LAWN MOWER

...
...
1
CONTROL BAR PM PLN-86902
...
2
UPPER HANDLE PLN-132826X479
...
3
ROPE GUIDE PLN-132001
...
4
HANDLE LWR PM PLN-851646X479
...
5
SUB= 73800400 PLN-63601
...
10
"CABLE-MRZ, SNAP" PLN-156569
...
12
"BRKT,UPSTOP" PLN-850733X004
...
13
SUB= 7192J PLN-664-26
...
14
LOCKNUT PLN-132010
...
16
TAPPING SCREW PLN-750097
...
17
SKIRT.REAR.20RD. PLN-140541
...
18
SUB= 19091214 PLN-53847
...
22
"GRD,DISCHARGE" PLN-752052
...
23
AXLE BOLT PLN-67609
...
24
WHEEL&TIRE PLN-800060
...
25
SUB= 532136624 PLN-136624
...
26
DECAL HYT PLN-107339X
...
27
SUB= 532137009 PLN-137009
...
28
LOCKNUT PM PLN-751592
...
29
BOLT 1/4-20-1 1/2 PLN-74350424
...
30
BOLT.ENG.3/8-16 PLN-150406
...
31
BLADE ADAPTOR PLN-850977
...
32
BLADE.20.MULCH.AY PLN-145106
...
33
"WASHER,HARDEN" PLN-851074
...
34
LOCKWASHER PLN-850263
...
35
SCREW PLN-851084
...
38
SUB= 48285 PLN-701106
...
39
SUB= 19132012 PLN-61537
...
40
FRONT BAFFLE PLN-700839X479
...
43
WASHER PLN-851201X004
...
44
SUB= 73800400 PLN-132004
...
47
STEEL WASHER PLN-55611
...
48
BLIND RIVET PLN-128415
...
xx
MANUAL.OP.GEN.RTA PLN-145653
...
xx
MANUAL.P.1A PLN-164064
...
xx
SUB= GCK3200A PLN-GCK3200
...
...
...
