Husqvarna 1227-14 (1999 & Before) Walk Behind Rotary Mower

Model: 1227-14 (1999 & Before)

Save
 Part Not Listed?Part Not Listed?
product name

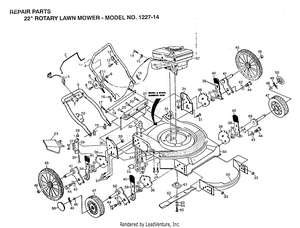

22" ROTARY LAWN MOWER

...
...
2
CONTROL BAR PM PLN-86902
...
3
ROPER GUIDE PM PLN-103672X
...
4
"HANDLE,UPPER " PLN-850880X479
...
5
SUB= 151516X479 PLN-84676X479
...
6
SUB= 73800400 PLN-63601
...
7
SUB= 131959 PLN-58714
...
8
SUB= 74250434 PLN-86261
...
9
CONTROL.THROTTLE PLN-851464
...
10
WASHER PM PLN-85723
...
11
CABLE.ZONE.CONTRO PLN-851670
...
12
TAPPING SCREW PLN-750097
...
13
"BRKT,UPSTOP" PLN-850733X004
...
14
SCREW PM PLN-83816
...
15
CABLE CLAMP PLN-213146
...
16
"NUT,WING PM" PLN-128638
...
17
SCREW PLN-54583
...
18
ROD.SUPPORT.WB. PLN-107611X
...
19
HAIRPIN COTTER PLN-51793
...
20
SCREW PLN-81276
...
21
REAR SKIRT PM PLN-111199X
...
22
CABLE CLIP PM PLN-85827
...
23
SUB= 532851750 PLN-851750
...
24
SCREW PLN-851856
...
27
"SPRING,TORSION" PLN-851855
...
28
PUSH ON SPEED NUT PLN-83731
...
29
"BRKT,HSG" PLN-851852X004
...
30
"ROD,HINGE " PLN-851854
...
31
SUB= 150959 PLN-63645X424
...
32
SUB= 150959 PLN-63644X424
...
33
SUB= 73800600 PLN-62336
...
34
SUB= 107607X479 PLN-107607X424
...
35
SUB= 107609X479 PLN-107609X424
...
36
SUB= 750085X007 PLN-850904
...
37
SUB= 146630 PLN-84920
...
38
WASHER PM PLN-88348
...
39
SUB= 700331X004 PLN-850855X004
...
40
KNOB PM PLN-87877
...
41
"AXLE ARM,REAR PM" PLN-750913X004
...
42
WASHER PLN-61651
...
43
"WASHER, BELLEVIL." PLN-62335
...
44
SUB= 142748 PLN-84921
...
45
WHEEL AND TIRE PLN-851801
...
46
HEX FLANGE LOCKNT PLN-83923
...
47
WHL & TIRE PLN-851800
...
48
WASHER PLN-52160
...
49
RETAINER CLIP PM PLN-85179
...
50
HUBCAP PLN-851908
...
51
SUB= 74780612 PLN-55912
...
52
SCREW PLN-850998
...
53
STEEL WASHER PLN-59289
...
54
SCREW PLN-55187
...
55
DECAL HYT PLN-107339X
...
59
SUB= 129462 PLN-129358
...
60
SUB= 700929X479 PLN-87780X479
...
61
BLADE ADAPTOR PLN-850977
...
62
"BLADE.22""" PLN-850973
...
63
"WASHER,HARDEN" PLN-851074
...
64
LOCKWASHER PLN-850263
...
65
SCREW PLN-851084
...
66
AXLE ARM PLN-85021X004
...
xx
NLA PLN-128077
...
xx
REPLACEMENT PARTS MANUAL PLN-129281
...
xx
DECAL, HOUSING PLN-129317
...
...
...
