Husqvarna 1220-14 (1999 & Before) Walk Behind Rotary Mower

Model: 1220-14 (1999 & Before)

Save
 Part Not Listed?Part Not Listed?
product name

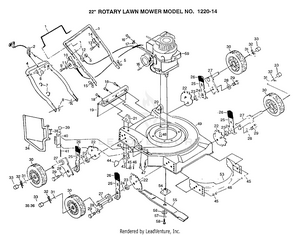

22" ROTARY LAWN MOWER

...
...
1
CONTROL BAR PM PLN-86902
...
2
ROPER GUIDE PM PLN-103672X
...
3
"HANDLE,UPPER " PLN-850880X479
...
4
SUB= 151516X479 PLN-84676X479
...
5
SUB= 73800400 PLN-63601
...
6
SUB= 131959 PLN-58714
...
7
CABLE CLIP PM PLN-85827
...
8
HAIRPIN COTTER PLN-51793
...
9
SUB= 74250434 PLN-86261
...
10
CONTROL.THROTTLE PLN-851461
...
11
WASHER PM PLN-85723
...
12
SUB= 532851669 PLN-851669
...
13
TAPPING SCREW PLN-750097
...
14
"BRKT,UPSTOP" PLN-850733X004
...
15
"NUT,WING PM" PLN-128638
...
16
SCREW PM PLN-83816
...
17
CABLE CLAMP PLN-213146
...
18
SCREW PLN-81276
...
19
REAR SKIRT M PLN-8209J
...
20
SUB= 150959 PLN-63645X424
...
21
SUB= 150959 PLN-63644X424
...
22
SUB= 750085X007 PLN-850904
...
23
SUB= 146630 PLN-84920
...
24
WASHER PM PLN-88348
...
25
SUB= 700331X004 PLN-850855X004
...
26
KNOB PM PLN-87877
...
27
AXLE ARM PLN-85021X004
...
28
"WASHER, BELLEVIL." PLN-62335
...
29
SUB= 142748 PLN-84921
...
30
WHEEL.ASM PLN-800220
...
31
WASHER PLN-52160
...
32
RETAINER CLIP PM PLN-85179
...
33
HUB CAP-PLASTIC PLN-800090
...
34
SUB= 532851750 PLN-851750
...
38
"SPRING,TORSION" PLN-851855
...
39
PUSH ON SPEED NUT PLN-83731
...
40
"BRKT,HSG" PLN-851852X004
...
41
"ROD,HINGE " PLN-851854
...
42
STEEL WASHER PLN-59289
...
43
SCREW PLN-55187
...
44
DECAL HYT PLN-107339X
...
45
SUB= 19132012 PLN-61537
...
46
LOCKNUT PM PLN-751592
...
47
SCREW PLN-851856
...
48
SUB= 129462 PLN-129358
...
49
HOUSING PLN-851192
...
53
SUB= 700929X479 PLN-87780
...
54
BLADE ADAPTOR PLN-850977
...
55
"BLADE.22""" PLN-850973
...
56
"WASHER,HARDEN" PLN-851074
...
57
LOCKWASHER PLN-850263
...
58
SCREW PLN-851084
...
xx
NLA PLN-128077
...
xx
"MANUAL,PARTS" PLN-129147
...
xx
DECAL, HOUSING PLN-129317
...
xx
NLA PLN-107536X
...
xx
DECAL PM PLN-107531X
...
...
...
